Bone Grafting Instruments for Precision & Control

Which Bone Grafting Instrument Do You Need?

Pick the instrument by the step you need (carrying, condensing, holding a block or pinning a membrane), or take the complete set; every active product in the collection is linked once below by its Zepf number.

Graft carriers, pluggers and packers (ZEPF-bIONIK QuickFix)

Zepf No.	Pattern or size	Use
47.848.01	Graft carrier plugger, replaceable tips, Lightred-Magenta handle	Contouring and inserting grafts
47.848.02	Graft material carrier, Yellow handle	Inserting grafts of different sizes
47.848.03	Graft and sinus packer, Turquoise-Brightblue handle	Condensing augmentation material

Bone filler / condenser with depth measurement

Zepf No.	Pattern or size	Use
24.532.19	Ø 1.0 and 2.0 mm, graduation 3/6/9/12/15 mm, titanium M4 x 0.5 inserts, ZEPF-bIONIK QuickFix handle, Yellow-Green	Filling and condensing graft with depth control
47.848.06TI	Ø 1.0 and 2.0 mm, graduation 3/6/9/12/15 mm, titanium M4 x 0.5 inserts, Z-Line handle	Filling and condensing graft with depth control

Bone block holders and membrane pin applicator

Zepf No.	Pattern or size	Use
47.956.10	Bone block holder with stand	Fixing a bone block for trimming and drilling
47.956.20	Bone block holder without stand	Fixing a bone block for trimming and drilling
47.950.02	Pin applicator with dental connector, for titanium membrane pins	Placing membrane pins (GBR)

Complete set

Zepf No.	Pattern or size	Use
47.848.00	Dental Bone Grafting Set with bIONIK QuickFix handles (47.848.01, 47.848.02, 47.848.03, 24.532.19 and ZEPFcare 1/3 washbasket)	Full carry-place-condense kit

Core Categories of Bone Grafting Instruments

Graft Carriers and Pluggers: The graft carrier plugger (47.848.01) contours and inserts grafts, and the graft material carrier (47.848.02) inserts grafts of different sizes; both run on ZEPF-bIONIK QuickFix handles with replaceable tips.
Packers and Condensers: The graft and sinus packer (47.848.03) condenses augmentation material, and the combination bone filler/condenser with depth measurement (Ø 1.0 and 2.0 mm, graduation 3/6/9/12/15 mm, titanium M4 x 0.5 inserts) comes on a ZEPF-bIONIK QuickFix handle (24.532.19) or a Z-Line handle (47.848.06TI).
Bone Block Holders: Hold an autologous bone block securely outside the mouth while it is trimmed, contoured and drilled for fixation screws, with stand (47.956.10) or without stand (47.956.20).
Membrane Pin Applicator: The pin applicator with dental connector (47.950.02) picks up titanium membrane pins and delivers them to the fixation site in guided bone regeneration.

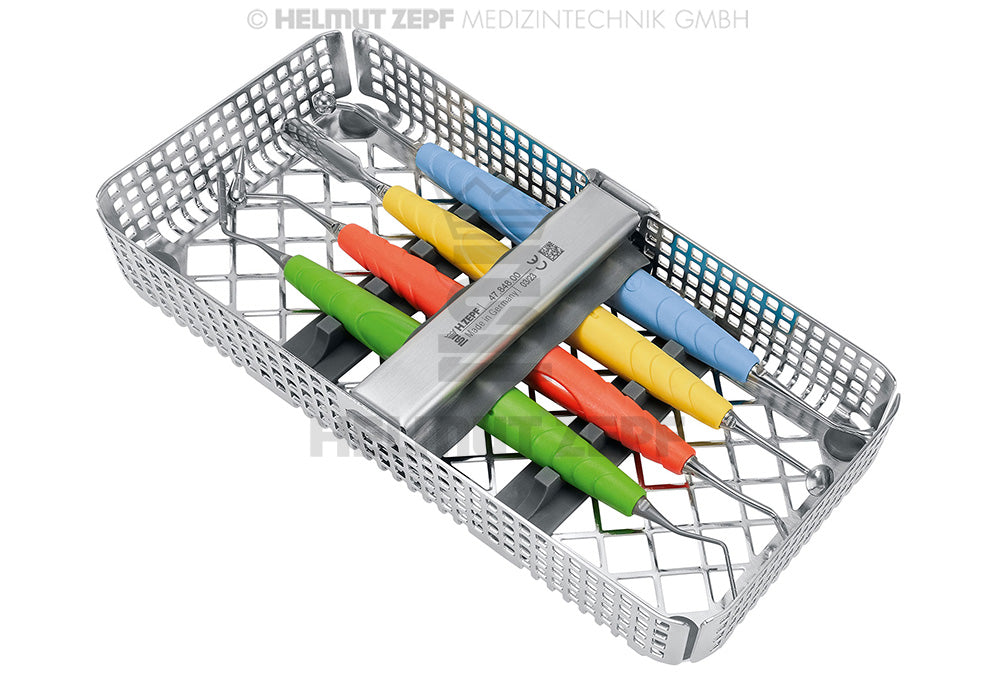

Complete Set: The Dental Bone Grafting Set (47.848.00) combines the carrier plugger, material carrier, sinus packer and bone filler/condenser on bIONIK QuickFix handles with a ZEPFcare 1/3 washbasket.

Chisels, osteotomes, bone curettes, periosteal elevators, bone files and mallets are used alongside these instruments and are found in their own collections: Bone Chisel, Dental Osteotomes & Sinus Lift Instruments, Bone Curette by Helmut Zepf, Periosteal Elevators by Helmut Zepf, Miller Bone File Collection and Surgical Hammer.

Material and Quality Considerations

High-quality bone grafting instruments are typically manufactured from surgical-grade stainless steel or titanium alloys, offering durability, corrosion resistance, and compatibility with standard sterilization protocols. Ergonomic handle design reduces operator fatigue during extended procedures, while precision-machined working ends ensure consistent, repeatable performance across cases.

Selecting the Right Instruments

Choosing the appropriate bone grafting instruments depends on the specific graft type, surgical site anatomy, and procedural technique. A well-curated instrument set supports efficiency, reduces operative time, and contributes to predictable clinical results.

Clinical Use

These Helmut Zepf instruments are used in implantology and oral surgery to carry, place and condense particulate graft material, including condensing augmentation material during sinus lift procedures. The depth graduation on the bone filler/condenser gives intraoperative depth control, the bone block holders fix an autologous block outside the mouth so both hands are free for trimming and drilling, and the pin applicator places titanium membrane pins to secure membranes in guided bone regeneration.

Care and Reconditioning

Clean and sterilize the instruments between patients following the manufacturer instructions and the symbols on each product package; remove the replaceable tips and inserts from QuickFix and Z-Line handles for cleaning, and replace worn tips. The complete set is supplied in a ZEPFcare 1/3 washbasket for reprocessing. Our Surgical Instrument Reprocessing & Sterilization Guide covers the general workflow for Helmut Zepf surgical instruments.

Compare With

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What materials are bone grafting instruments typically made from? Most professional-grade instruments are made from surgical stainless steel or titanium alloys, both of which withstand repeated autoclave sterilization cycles.

Are these instruments compatible with standard sterilization protocols? Yes, quality bone grafting instruments are designed to be fully compatible with autoclaving and other accepted sterilization methods used in surgical settings.

Which instrument is most critical for graft placement? Graft carriers and condensers are among the most important bone grafting instruments for accurately delivering and compacting graft material at the recipient site.

Manufacturer literature: Bone Grafting Kit flyer (PDF) — more in our Surgical Instrument Library.
