Dental Composite Instruments - CompoSMOOTH

CompoSMOOTH is the Helmut Zepf composite instrument system developed by Dr. Gabriel Krastl, designed to meet the demands of modern restorative dentistry. This collection carries the CompoSMOOTH Composite Instrument Kit together with the individual brush holders, soft silicone application inserts, application brush inserts and titanium instrument insert, so the system can be bought complete or restocked piece by piece.

Which CompoSMOOTH Part Do You Need?

Start with the kit or a brush holder, then add the inserts that fit it; every product in this collection is linked once below by its Zepf number.

Complete kit

Zepf No.	Pattern or size
19.202.00	CompoSMOOTH Composite Instrument Kit

Brush holders (handles)

Zepf No.	Pattern or size
19.200.00	Brush holder for silicone inserts 19.201.10, 19.201.20 and 19.201.30
19.200.30	Brush holder, curved 30°, for inserts 19.201.10, 19.201.20 and 19.201.30
19.199.00	Brush holder for applying liquid treatment agents to dental surfaces and cavities

Soft silicone application inserts

Zepf No.	Pattern or size
19.201.11	Soft application inserts for layering technique, for handle 19.200.00, pack of 12
19.201.21	Soft application inserts for layering technique, for handle 19.200.00, pack of 12
19.201.31	Soft application inserts for layering technique, for handle 19.200.00, pack of 12

Brush and instrument inserts

Zepf No.	Pattern or size
19.199.12	Application brush inserts, fine, white, for ZEPF brush holder, pack of 50
24.751.404Ti	CompoSMOOTH composite instrument insert, titanium

What's Included in the CompoSMOOTH Complete Set

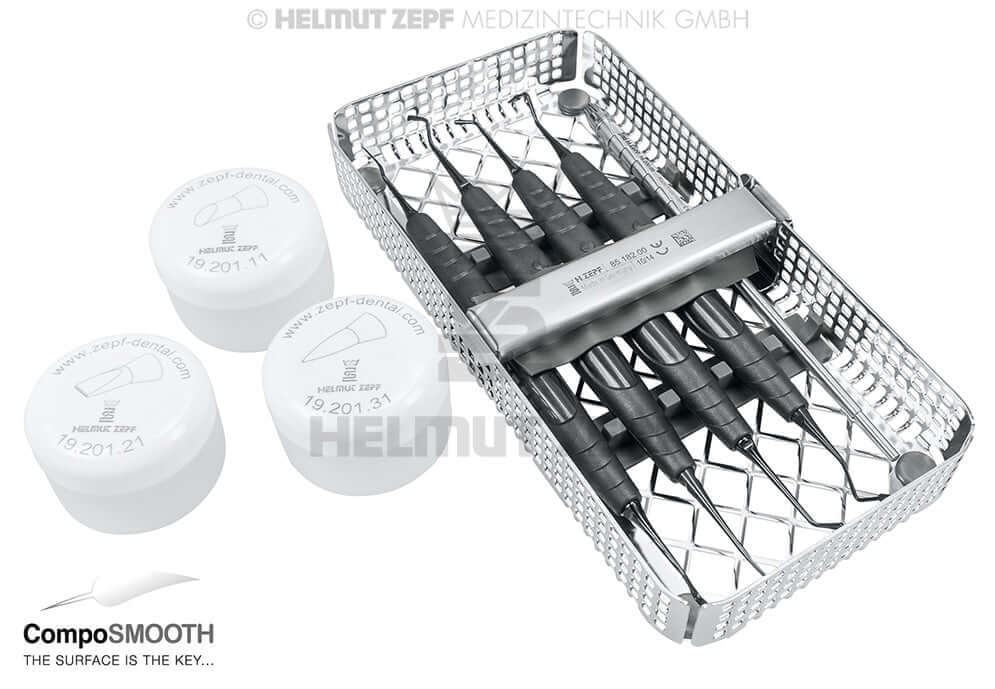

According to the Helmut Zepf CompoSMOOTH flyer, the 19.202.00 Complete Set by Prof. Dr. Gabriel Krastl comes in a box with a 1/3 wash tray and contains:

26.120.10Ti #1, spatula 1.5 mm, small, in handle, black
26.120.12Ti spatula 1.8 mm / beavertail 2.6 mm
26.120.25Ti plugger Ø 1.5 mm / plugger Ø 1.9 mm (pear-shaped)
26.120.32Ti fissure former Ø 1.9 mm / Ø 2.3 mm
19.200.00 brush holder with push-out function
Soft application inserts for the layering technique: 19.201.11, 19.201.21 and 19.201.31, 12 pieces each

Design and Material Highlights

The four composite instruments cover spatula, beavertail, pear-shaped plugger and fissure-former work, while the brush holder and its soft silicone inserts model and smooth composite increments. Together they cover placement, modelling and surface smoothing in one set.

Designed for Clinical Excellence

The CompoSMOOTH system was conceived by Dr. Gabriel Krastl as a specialist Dental Composite Instrument collection that addresses real clinical challenges. Whether you are working on direct anterior restorations or posterior build-ups, this instrument set provides the control and tactile feedback necessary for high-quality outcomes. The included wash tray keeps the set together during reprocessing.

Clinical Use

The soft silicone inserts in the CompoSMOOTH brush holders are used to model and smooth composite increments in the layering technique, and the 19.199.00 brush holder with fine application brush inserts applies liquid treatment agents to tooth surfaces and cavities.

Care and Reconditioning

Clean, disinfect and sterilize between patients. Our Dental Instrument Reprocessing & Sterilization Guide covers the workflow for Helmut Zepf hand instruments, and our sharpening and reconditioning service reconditions worn instruments when needed.

Compare With

Related Helmut Zepf collections: Dental Composite Instrument Sets, Spatula Shaped Dental Composite Instruments, Heidemann Spatula Composite Instrument, and Ball-Shaped Plugger Composite Instruments. For patterns and terminology, see the Restorative Instrument Comparison Chart, the Restorative Instrument Glossary and the Dental Composite Instrument Shapes Guide. CompoSMOOTH is a Zepf-specific system.

Further reading: Dental Composite Instrument Shapes Guide: Condensers, Pluggers, Spatulas, Carvers & Burnishers

Part of the Composite & Direct Restoration hub.

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What makes the CompoSMOOTH a complete Dental Composite Instrument set? It combines four composite instruments, soft silicone application inserts, a brush holder and a wash tray — covering placement, modelling, and maintenance in one package.

Which instruments are in the set? Spatula 26.120.10Ti, spatula/beavertail 26.120.12Ti, pear-shaped plugger 26.120.25Ti and fissure former 26.120.32Ti, plus the 19.200.00 brush holder and three packs of soft application inserts.

Manufacturer literature: CompoSmooth flyer (PDF) — more in our Restorative Instrument Library.
