Columbia Universal Curette

The Columbia Universal Curette is a foundational instrument in professional dental scaling and root planing procedures, recognized for its versatility across multiple tooth surfaces and its effectiveness in both supragingival and subgingival debridement. Designed with two cutting edges on a rounded toe, this curette can be adapted to virtually any surface in the mouth without the need to change instruments frequently.

Which Columbia Universal Curette Do You Need?

A Columbia curette — often called a Columbia instrument or Columbia universal curette — is identified by its pattern number: 13/14, 4R/4L or 2R/2L. The tables list every Helmut Zepf Columbia instrument in this collection, with the complete instruments first and the replaceable tips below them.

Complete instruments

Zepf No.	Pattern	Use

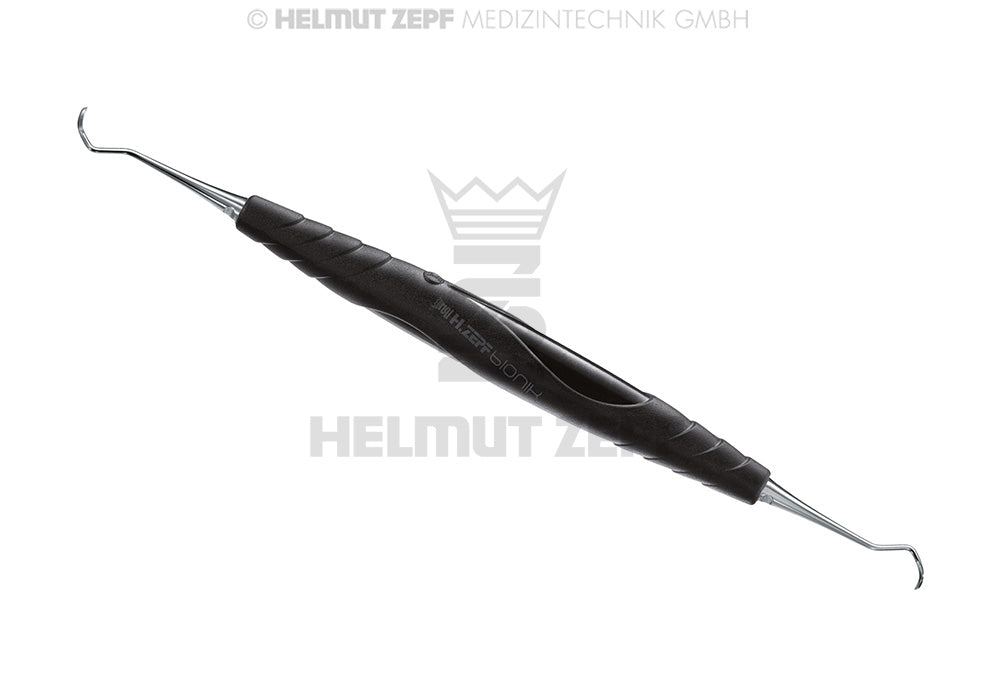

24.207.13C	Columbia 13/14, ZEPF-bIONIK QuickFix handle	Universal — anterior and posterior surfaces, scaling and root planing
24.725.05	Columbia 13/14, extremely fine replaceable tips	Subgingival scaling, root planing and access to the root apex; component of the ZEPF Endodontics Set
24.207.04C	Columbia 4R/4L, ZEPF-bIONIK QuickFix handle	Posterior (side) teeth — mesial, distal, buccal and lingual surfaces
24.207.04C-TI	Columbia 4R/4L, titanium replaceable tips	Posterior teeth; titanium working ends for maintenance around implants
24.207.02C	Columbia 2R/2L, ZEPF-bIONIK QuickFix handle	Universal — subgingival scaling and root planing of the anterior teeth

Replaceable tips

Zepf No.	Pattern	Use
24.751.113C	Columbia 13 tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles
24.751.114C	Columbia 14 tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles

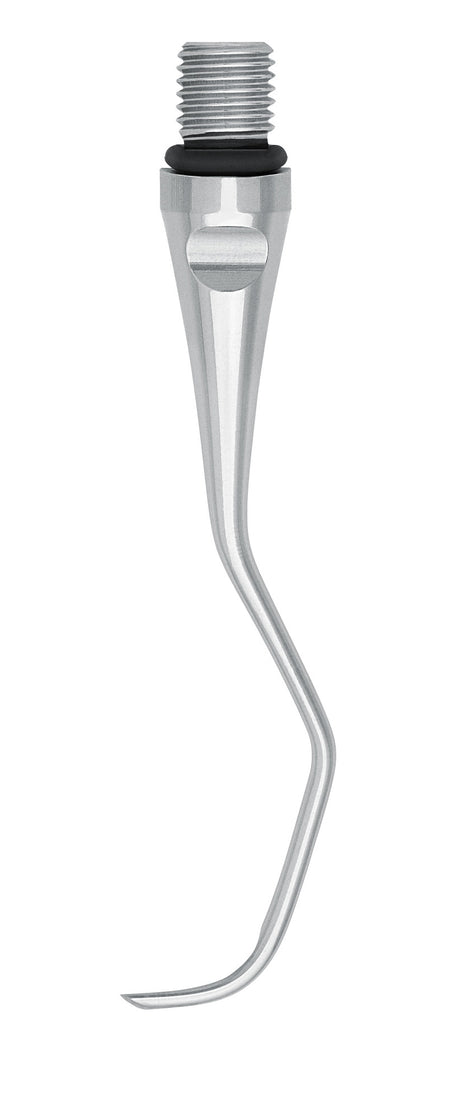

24.751.104RC	Columbia 4R tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles

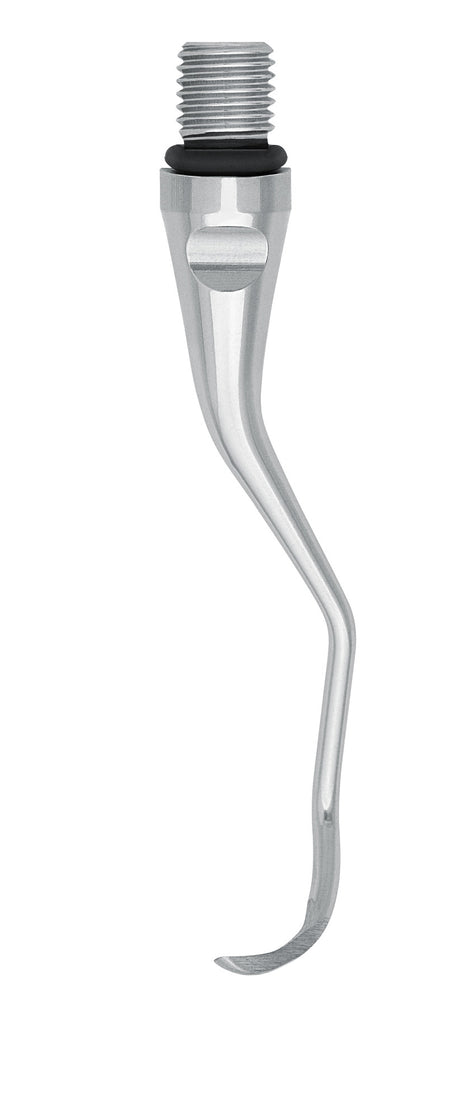

24.751.104LC	Columbia 4L tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles
24.751.104RC-TI	Columbia 4R, titanium tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles
24.751.104LC-TI	Columbia 4L, titanium tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles

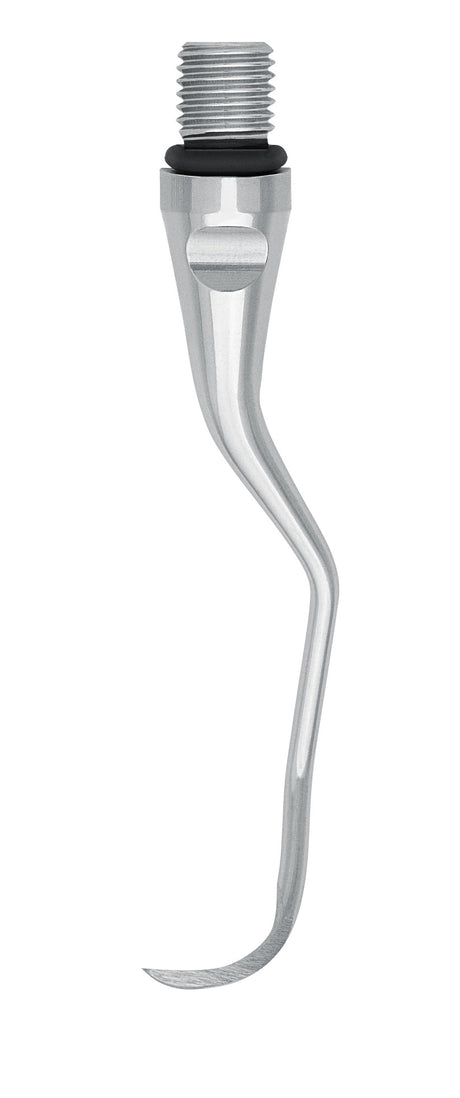

24.751.102RC	Columbia 2R tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles
24.751.102LC	Columbia 2L tip	Replaceable tip that threads into compatible Helmut Zepf QuickFix handles

Key Features and Design

Universal design: Both cutting edges are active, allowing clinicians to work on all tooth surfaces with a single instrument.
Rounded toe and back: Minimizes tissue trauma during subgingival instrumentation.
Balanced shank geometry: Provides optimal angulation for anterior and posterior teeth alike.
Durable construction: Typically crafted from high-grade stainless steel for long-lasting sharpness and autoclave compatibility.

Clinical Use

The Columbia Universal Curette is widely used in periodontal maintenance, initial therapy, and supportive periodontal treatment. Its dual cutting edges make it especially efficient during quadrant scaling, reducing chair time and instrument turnover. Dental hygienists and periodontists rely on this instrument for thorough calculus removal and root surface smoothing across all sextants.

Instrument Care and Maintenance

To maintain peak performance, the Columbia Universal Curette should be regularly sharpened using an appropriate sharpening stone to preserve its cutting edge acuity. Sterilization via autoclave is standard practice, and instruments should be inspected for wear or metal fatigue after each sterilization cycle.

Our Dental Instrument Reprocessing & Sterilization Guide covers the full workflow for Helmut Zepf hygiene instruments, our sharpening and reconditioning service restores worn edges, and on the QuickFix versions a worn working end is renewed by swapping the replaceable tips (see Hygiene Instruments with QuickFix Replaceable Tips).

Compare With

Columbia curettes by pattern: Columbia 13/14 Universal Curette, Columbia 4R/4L Universal Curette, and Columbia 2R/2L Universal Curette. Related Helmut Zepf collections: Langer Universal Curettes, Gracey Curettes, Hygiene QuickFix Replaceable Tips, and Titanium Dental Hygiene Instruments for Implants. For terminology and pattern comparisons, see the Hygiene Instrument Comparison Chart and the Dental Hygiene Instrument Glossary.

Part of the Scaling & Root Planing Instruments hub. See also our Gracey Curette Numbers & Curette Types Guide for how universal patterns compare to area-specific designs.

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What makes the Columbia Universal Curette different from a Gracey curette? Unlike area-specific Gracey curettes, the Columbia Universal Curette features two active cutting edges and can be used on all tooth surfaces, offering greater versatility with fewer instruments.

Is this curette suitable for both anterior and posterior teeth? Yes, the balanced shank design of the Columbia Universal Curette makes it effective for use on both anterior and posterior dentition.
