Dental Mouth Mirror Collection

Which Dental Mouth Mirror Do You Need?

Pick a handle and a matching head (simple thread or cone socket), or a complete mirror; every product in the collection is linked once below by its Zepf number.

Complete mirrors and mirrors with retractor

Zepf No.	Pattern or size	Fitting or pack
24.062.30	Mirror with retractor, size 1, Ø 24 mm	Sterilizable bIONIK handle, orange
24.062.31	Mirror with retractor, size 2, Ø 27 mm	Sterilizable bIONIK handle, purple

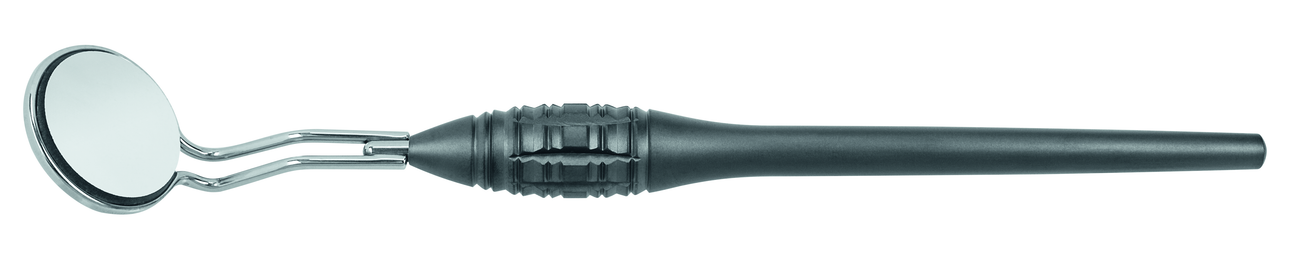

24.085.00HZU	Mouth mirror with lip retractor, TOUCHGRIP design	M2.5 thread, exchangeable inserts
24.087.02	Mouth mirror, Capstan titanium handle with mirror 24.071.22	Complete instrument

Mirror handles

Zepf No.	Pattern or size	Fitting or pack
24.080.01	Mouth mirror handle, stainless steel, solid	Simple thread
24.086.01	Mouth mirror handle, stainless steel, hollow	Simple thread
24.089.02	Ergonomic design handle, stainless steel, hollow	Simple thread
24.087.00	Mouth mirror handle, Capstan titanium	Handle

Mirror heads, simple thread

Zepf No.	Pattern or size	Fitting or pack
24.061.22	Size 4, plane surface, Ø 22 mm, stainless steel	Pack of 12
24.061.24	Size 5, plane surface, Ø 24 mm, stainless steel	Pack of 12
24.067.22	Size 4, front surface, Ø 22 mm, titanium plated surface	Pack of 12
24.067.24	Size 5, front surface, Ø 24 mm, titanium plated surface	Pack of 12

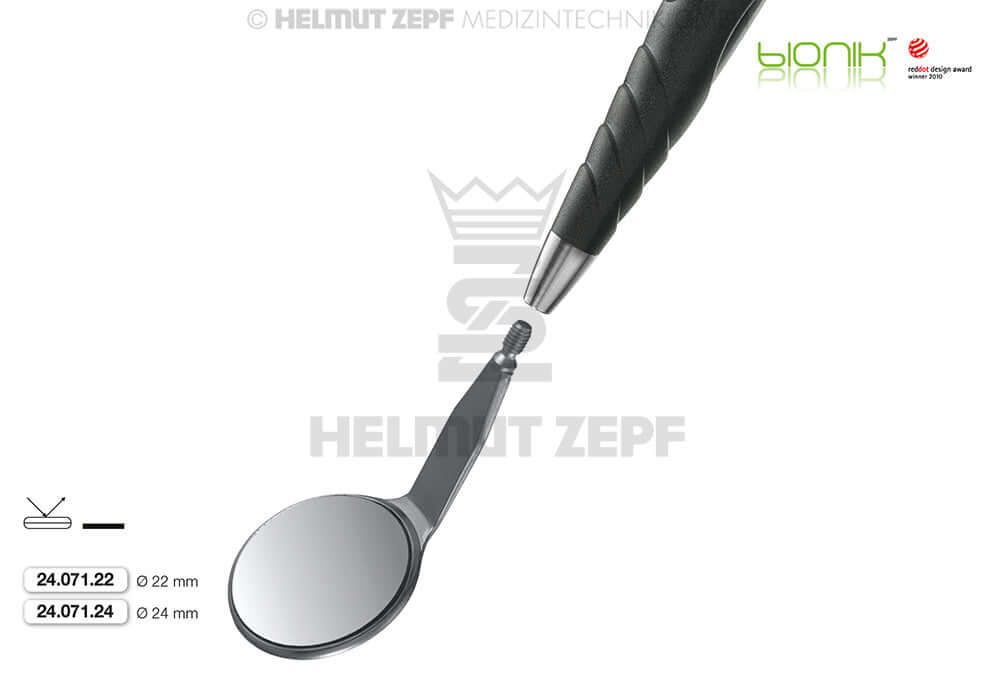

24.071.22	MEGA double sided, size 4, rhodium front surface, Ø 22 mm	Pack of 12
24.072.24	MEGAduo double sided, size 5, front surface, Ø 24 mm, stainless steel	Pack of 6
24.070.22	Double sided with lip retractor, size 4, front surface, Ø 22 mm, titanium plated surface	Pack of 12
24.070.24	Double sided with lip retractor, size 5, front surface, Ø 24 mm, titanium plated surface	Pack of 12

Mirror heads, cone socket

Zepf No.	Pattern or size	Fitting or pack
24.069.22	Size 4, front surface, Ø 22 mm, titanium plated surface	Pack of 12

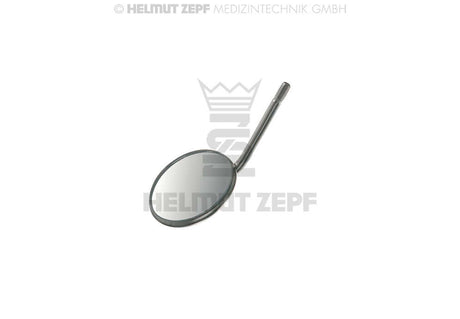

24.065.24	Size 5, plane surface, Ø 24 mm, stainless steel	Pack of 12

Open shape and Lipcare mirror heads

Zepf No.	Pattern or size	Fitting or pack

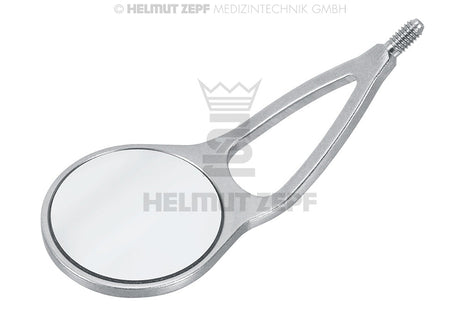

24.079.22	Size 4, front surface, Ø 22 mm, open shape	Pack of 6

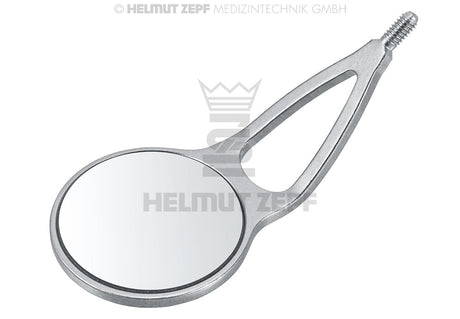

24.079.24	Size 5, front surface, Ø 24 mm, open shape	Pack of 6
24.062.24	Lipcare mirror head, front surface, Ø 23 mm, titanium	Pack of 5

Micro mirrors

Zepf No.	Pattern or size	Fitting or pack
24.074.13	Micro mirror, Ø 3.0 mm, rhodium front surface coating	Single
24.074.15	Micro mirror, Ø 5.0 mm, rhodium front surface coating	Single
24.074.16	Micro mirror, 7 mm long x 2 mm wide, rhodium front surface coating	Single

Key Features to Consider

• Mirror head type: Front-surface mirrors minimise double reflection, providing a sharper, more accurate image than back-surface alternatives.
• Handle design: Ergonomic, knurled handles offer superior grip and reduce hand fatigue during extended procedures.
• Head size: mirror heads in sizes 4 (Ø 22 mm) and 5 (Ø 24 mm), mirrors with retractor in sizes 1 (Ø 24 mm) and 2 (Ø 27 mm), and micro mirrors from Ø 3 mm.
• Material: Stainless steel handles are autoclavable and corrosion-resistant, supporting robust infection control protocols.
• Surface coating: plane stainless steel, titanium plated front surface and rhodium front surface heads are available.

Choosing the Right Instrument

When selecting a dental mouth mirror, consider the frequency of use, sterilization requirements, and the specific needs of your patient demographic. Every mirror in this collection is a reusable Helmut Zepf instrument: the heads screw onto separate handles (simple thread or cone socket) and come in packing units, so a worn or scratched head can be replaced without replacing the handle.

History: Who Invented the Dental Mouth Mirror?

Physicians in ancient Egypt, Greece, and Rome used polished metal to look inside the mouth, but the mouth mirror as a dedicated dental instrument is much newer. One of the earliest documented purpose-built designs was patented in 1875 by Thomas Cogswell, a Boston dentist, as U.S. Patent 163,578 — a small reflective head set on a handle, built to redirect light and vision to surfaces a clinician couldn't view directly. Front-surface, anti-fog, and LED-integrated versions have since refined the concept, but the basic head-and-handle format Cogswell patented is still what every mirror in this collection is built around.

Clinical Use

The dental mouth mirror serves multiple roles in daily practice. It facilitates indirect vision for posterior and lingual tooth surfaces, assists in retracting the cheek and tongue to improve access, and can be used to direct light onto specific areas of interest. Choosing the right dental mouth mirror for your clinical environment ensures consistent, reliable performance across routine check-ups and complex restorative procedures.

Care and Reconditioning

Clean, disinfect and sterilize mirrors and handles between patients following the manufacturer instructions and the symbols on each product package, and replace a mirror head once its surface is scratched or clouded. Our Dental Instrument Reprocessing & Sterilization Guide covers the workflow for Helmut Zepf hygiene and diagnostic instruments.

Compare With

Related Helmut Zepf collections: Dental Mirror Handles by Helmut Zepf, Front Surface Dental Mouth Mirrors, Rhodium Coated Mouth Mirrors, Double Sided Mouth Mirrors, Dental Micro Mirror Collection, and Mirror-and-Retractor Combination Instruments. For photography mirrors, see Dental Mirrors for Intraoral Photography; for terminology, the Dental Hygiene Instrument Glossary.

Part of the Examination & Diagnostic Instruments hub. See also our Helmut Zepf bIONIK Handle guide.

FAQ

What sizes are available for a dental mouth mirror? Dental mouth mirrors are commonly available in sizes No. 2 through No. 5, with No. 4 and No. 5 being most widely used in adult patients.

Can dental mouth mirrors be sterilized in an autoclave? Yes, most stainless steel dental mouth mirrors are designed to withstand standard autoclave sterilization cycles.

What is the advantage of a front-surface dental mouth mirror? A front-surface mirror eliminates the double-image effect caused by back-surface reflection, resulting in a clearer, more accurate view for the clinician.
