Dental Trephine Burs

Dental Trephine Burs by Helmut Zepf (Germany) are specialized cylindrical bone-cutting instruments engineered for accurate bone core harvesting, implant site preparation, and minimally invasive bone removal. Trusted by implantologists and periodontists worldwide, these precision tools deliver clean, controlled cuts with minimal bone trauma — making them essential for predictable autogenous bone grafting and advanced implant procedures.

Since 1921 · Made in GermanyShips from the US
Dental Trephine Burs
31 instruments
View as

Which Dental Trephine Bur Do You Need?

Pick the body type first (standard 30 mm sheath, shorter 13.5 mm body, fixation-support guide pin or short 15 mm trephine), then the inside diameter; every active product in the collection is linked once below.

Standard trephines – 2.35 mm x 30 mm, graduation 7/10/13/1613 items
Zepf No. Pattern or size
08.910.01 inside Ø 1.7 mm · 2.35 x 30 mm sheath · 7 teeth · graduation 7/10/13/16
08.910.02 inside Ø 2.3 mm · 2.35 x 30 mm sheath · 7 teeth · graduation 7/10/13/16
08.910.03 inside Ø 2.8 mm · 2.35 x 30 mm sheath · 9 teeth · graduation 7/10/13/16
08.910.04 inside Ø 3.3 mm · 2.35 x 30 mm sheath · 9 teeth · graduation 7/10/13/16
08.910.05 inside Ø 4.0 mm · 2.35 x 30 mm sheath · 11 teeth · graduation 7/10/13/16
08.910.06 inside Ø 4.3 mm · 2.35 x 30 mm sheath · 11 teeth · graduation 7/10/13/16
08.910.07 inside Ø 4.8 mm · 2.35 x 30 mm sheath · 9 teeth · graduation 7/10/13/16
08.910.08 inside Ø 6.0 mm · 2.35 x 30 mm sheath · 11 teeth · graduation 7/10/13/16
08.910.13 inside Ø 5.0 mm · 2.35 x 30 mm sheath · 9 teeth · graduation 7/10/13/16
08.910.09 inside Ø 7.0 mm · 2.35 x 30 mm sheath · 17 teeth · graduation 7/10/13/16
08.910.10 inside Ø 8.0 mm · 2.35 x 30 mm sheath · 17 teeth · graduation 7/10/13/16
08.910.11 inside Ø 9.0 mm · 2.35 x 30 mm sheath · 17 teeth · graduation 7/10/13/16

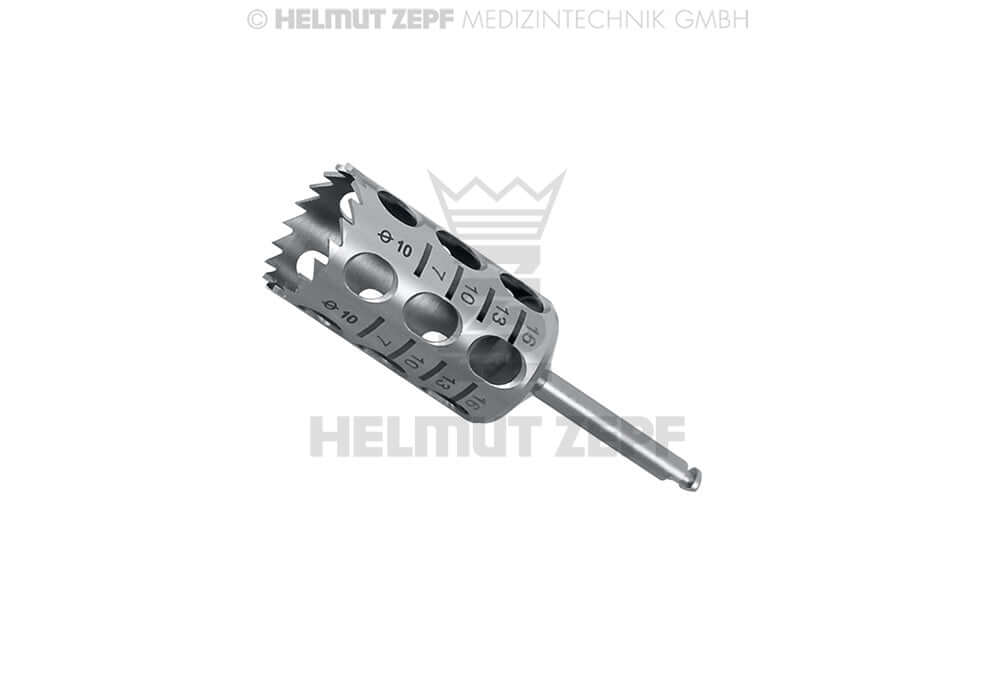

08.910.12 inside Ø 10.0 mm · 2.35 x 30 mm sheath · 19 teeth · graduation 7/10/13/16
Shorter-body trephines – 13.5 mm body, graduation 7/10/135 items
Zepf No. Pattern or size
08.910.13S inside Ø 5.0 mm · 2.35 x 30 mm sheath · 9 teeth · graduation 7/10/13 · shorter 13.5 mm body
08.910.08S inside Ø 6.0 mm · 2.35 x 30 mm sheath · 11 teeth · graduation 7/10/13 · shorter 13.5 mm body
08.910.09S inside Ø 7.0 mm · 2.35 x 30 mm sheath · 17 teeth · graduation 7/10/13 · shorter 13.5 mm body
08.910.10S inside Ø 8.0 mm · 2.35 x 30 mm sheath · 17 teeth · graduation 7/10/13 · shorter 13.5 mm body
08.910.11S inside Ø 9.0 mm · 2.35 x 30 mm sheath · 17 teeth · graduation 7/10/13 · shorter 13.5 mm body
Trephines with fixation support (guiding pin)5 items
Zepf No. Pattern or size
08.910.13F inside Ø 5.0 mm · 2.35 x 30 mm sheath · 9 teeth · guide pin
08.910.08F inside Ø 6.0 mm · 2.35 x 30 mm sheath · 9 teeth · guide pin
08.910.09F inside Ø 7.0 mm · 2.35 x 30 mm sheath · 9 teeth · guide pin
08.910.10F inside Ø 8.0 mm · 2.35 x 30 mm sheath · 9 teeth · guide pin
08.910.11F inside Ø 9.0 mm · 2.35 x 30 mm sheath · 9 teeth · guide pin
Short trephines – 2.35 x 15 mm4 items
Zepf No. Pattern or size
08.911.30 inside Ø 3.0 mm · 2.35 x 15 mm
08.912.50 inside Ø 5.0 mm · 2.35 x 15 mm
08.912.75 inside Ø 7.5 mm · 2.35 x 15 mm
08.912.10 inside Ø 10.0 mm · 2.35 x 15 mm
Milling cutter and trephine trays3 items
Zepf No. Pattern or size
08.910.22 Trephine Plain Milling Cutter - Ø 6.0 mm with Dental Lock
85.070.01 Dental Bur Block - Tray for 6 Trephines/Dent.Burs, Teflon, 60° Click Into Place 8.5 cm X 5 cm
85.070.05 Tray for 6 Trephines/Dent.Burs, Teflon, 60° Click Into Place 8.5 cm x 4.5 cm
Related items1 items
Zepf No. Pattern or size
47.500.31 3D One Step Augmentation Set by Dr. Bernhard Giesenhagen

Why Choose Zepf Dental Trephine Burs?

  • German Precision Engineering – Manufactured by Helmut Zepf to the highest surgical standards
  • Ultra-Sharp Cutting Edges – Smooth, clean bone cores with excellent cell viability
  • Multiple Diameters Available – Inside diameters from 1.7 mm to 10.0 mm for versatile clinical use
  • Depth-Controlled Design – Graduation marks at 7/10/13/16 mm (7/10/13 mm on the shorter-body versions), plus fixation-support versions with a guiding pin
  • Standard 2.35 mm Shank – Every trephine has a 2.35 mm sheath, 30 mm long on the standard and shorter-body versions and 15 mm on the short trephines
  • Premium Stainless Steel – Fully autoclavable and built for repeated sterilization

Superior Performance in Bone Harvesting

Zepf Dental Trephine Burs are favored because they harvest high-quality autogenous bone cores while preserving osteogenic cells — still the gold standard for regenerative success. Their sharp, precise design reduces heat generation and bone necrosis compared to standard drills, ensuring superior clinical outcomes.

For a complete advanced bone management setup, combine your Zepf Dental Trephine Burs with the ZEPF Bone Scraper II, Bone Chisels, Castroviejo Needle Holders, and dental micro mirrors.

Clinical Use

  • Autogenous bone core harvesting for grafting
  • Implant site preparation and osteotomy refinement
  • Socket preservation and ridge augmentation
  • Sinus lift procedures and lateral window techniques
  • Removal of failed implants or bone biopsies
  • Guided bone regeneration (GBR) and block graft preparation

Care and Reconditioning

Clean, inspect and sterilize after every use following the manufacturer’s reprocessing instructions. Our Surgical Instrument Reprocessing & Sterilization Guide covers the full workflow.

Compare With

Related Helmut Zepf collections: Implantology Instruments, Bone Grafting Instruments, Bone Augmentation Sets and Components, ZEPF Bone Scraper II, Mucosa Membrane Punches and 3D One Step Augmentation Set by Dr. Giesenhagen. Reference pages: Surgical Instrument Comparison Chart and Helmut Zepf Surgical Instrument Library.

Technical references: Surgical Bur Guide: Bone Cutters · Surgical Instrument Glossary

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What diameters are available for Zepf Dental Trephine Burs?

Inside diameters in this collection run from 1.7 mm to 10.0 mm (standard trephines 1.7–10.0 mm, shorter-body and fixation-support versions 5.0–9.0 mm, short trephines 3.0–10.0 mm), offering versatile options for a wide range of clinical indications.

Are these instruments autoclavable?

Yes. Zepf Dental Trephine Burs are manufactured from premium stainless steel and are fully compatible with standard autoclave sterilization protocols.

Who manufactures these trephines?

They are produced by Helmut Zepf, a German manufacturer recognized for precision surgical instrument engineering.

Further reading: Using Dental Trephine Burs for Dental Implants
