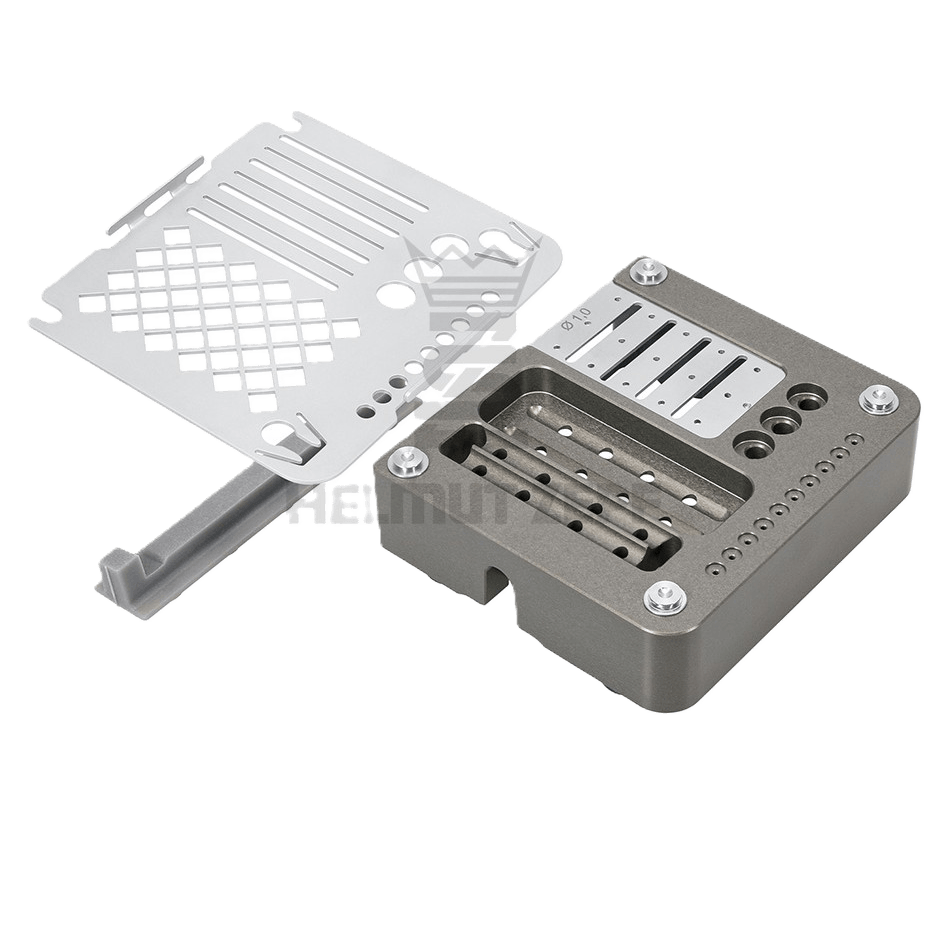

Helmut Zepf CMF System Original

Which CMF System Component Do You Need?

Start with a complete system set (1.0, 1.2 or 1.5, compact or big version), then add screws, drill bits, screwdrivers and storage by system size; every active product in the collection is linked once below.

CMF system sets

Zepf No.	Pattern or size
47.505.10	1.0 CMF System (Compact Version)
47.505.12	1.2 CMF System (Compact Version)
47.505.15	1.5 CMF System (Compact Version)
47.504.10	1.0 CMF System (Big Version)
47.504.12	1.2 CMF System (Big Version)
47.504.15	1.5 CMF System (Big Version)

CMF 1.0 screws

Zepf No.	Pattern or size
47.573.04S	Stainless Steel Micro Screw Ø 1.0 x 4 mm, Phillips drive, green ID - Pack of 5
47.573.06S	Stainless Steel Micro Screw Ø 1.0 x 6 mm, Phillips drive, green ID - Pack of 5
47.573.08S	Stainless Steel Micro Screw Ø 1.0 x 8 mm, Phillips drive, green ID - Pack of 5
47.573.10S	Stainless Steel Micro Screw Ø 1.0 x 10 mm, Phillips drive, green ID - Pack of 5

CMF 1.2 screws (incl. 1.4 mm emergency screws)

Zepf No.	Pattern or size
47.574.04	Titanium Micro Screw Ø 1.2 x 4 mm, Phillips drive, Grey Anodized - Pack of 5
47.574.06	Titanium Micro Screw Ø 1.2 x 6 mm, Phillips drive, Grey Anodized - Pack of 5
47.574.08	Titanium Micro Screw Ø 1.2 x 8 mm, Phillips drive, Grey Anodized - Pack of 5
47.574.10	Titanium Micro Screw Ø 1.2 x 10 mm, Phillips drive, Grey Anodized - Pack of 5
47.574.12	Titanium Micro Screw Ø 1.2 x 12 mm, Phillips drive, Grey Anodized - Pack of 5
47.574.13	Titanium Micro Screw Ø 1.2 x 13 mm, Cross-cut drive, Grey Anodized - Pack of 5
47.572.50	Stainless Steel Micro Screw Ø 1.2 x 8 mm, Umbrella Head Ø 4 mm, Crossfit drive - Pack of 1
47.572.51	Stainless Steel Micro Screw Ø 1.2 x 10 mm, Umbrella Head Ø 4 mm, Crossfit drive - Pack of 1
47.572.52	Stainless Steel Micro Screw Ø 1.2 x 12 mm, Umbrella Head Ø 4 mm, Crossfit drive - Pack of 1
47.572.53	Stainless Steel Micro Screw Ø 1.2 x 8 mm, Umbrella Head Ø 6 mm, Crossfit drive - Pack of 1
47.572.54	Stainless Steel Micro Screw Ø 1.2 x 10 mm, Umbrella Head Ø 6 mm, Crossfit drive - Pack of 1
47.572.55	Stainless Steel Micro Screw Ø 1.2 x 12 mm, Umbrella Head Ø 6 mm, Crossfit drive - Pack of 1
47.574.35	Emergency Titanium Micro Screw Ø 1.4 x 5 mm, Phillips drive, Red Anodized - Pack of 3
47.574.40	Emergency Titanium Micro Screw Ø 1.4 x 10 mm, Phillips drive, Red Anodized - Pack of 3

CMF 1.5 screws (incl. 1.9 mm emergency screws)

Zepf No.	Pattern or size
47.575.04	Titanium Micro Screw Ø 1.5 x 4 mm, Phillips drive, Blue Anodized - Pack of 5
47.575.06	Titanium Micro Screw Ø 1.5 x 6 mm, Phillips drive, Blue Anodized - Pack of 5
47.575.08	Titanium Micro Screw Ø 1.5 x 8 mm, Phillips drive, Blue Anodized - Pack of 5
47.575.10	Titanium Micro Screw Ø 1.5 x 10 mm, Phillips drive, Blue Anodized - Pack of 5
47.575.12	Titanium Micro Screw Ø 1.5 x 12 mm, Phillips drive, Blue Anodized - Pack of 5
47.575.13	Titanium Micro Screw Ø 1.5 x 13 mm, Phillips drive, Blue Anodized - Pack of 5
47.575.36	Emergency Titanium Micro Screw Ø 1.9 x 6 mm, Phillips drive, Red Anodized - Pack of 3
47.575.39	Emergency Titanium Micro Screw Ø 1.9 x 9 mm, Phillips drive, Red Anodized - Pack of 3
47.575.43	Emergency Titanium Micro Screw Ø 1.9 x 13 mm, Phillips drive, Red Anodized - Pack of 3

CMF drill bits (RA shank)

Zepf No.	Pattern or size
08.523.08	CMF System Drill Bit - Ø 0.8 mm, Drilling Depth 7 mm, Shank: RA
08.523.09	CMF System Drill Bit - Ø 0.9 mm, Drilling Depth 9 mm, Shank: RA
08.523.11	CMF System Drill Bit - Ø 1.1 mm, Drilling Depth 9 mm, Shank: RA
08.523.13	CMF System Drill Bit - Ø 1.3 mm, Drilling Depth 12 mm, Shank: RA
08.524.16	CMF System Drill Bit - Ø 1.6 mm, Drilling Depth 12 mm, Shank: RA
08.524.19	CMF System Drill Bit - Ø 2.0 mm, Drilling Depth 12 mm, Shank: RA

Screwdriver handle, blades and inserting devices

Zepf No.	Pattern or size
47.502.02	Screwdriver Handle, Small (Dental) - for CMF Screwdriver Blades
47.523.12	Phillips Screwdriver Blade Ø 1.2 mm - 15 mm Long
47.524.12	Phillips Screwdriver Blade Ø 1.0 and 1.2 mm - 60 mm Long
47.525.12	Inserting Device, Phillips Ø 1.2 mm - Screw Holder for CMF Screws
47.523.15	Phillips Screwdriver Blade Ø 1.5 mm - 15 mm Long
47.524.15	Phillips Screwdriver Blade Ø 1.5 mm - 60 mm Long
47.525.15	Inserting Device, Phillips Ø 1.5 mm - Screw Holder for CMF Screws

Screw boxes and screw racks

Zepf No.	Pattern or size
47.501.03	Universal CMF Box for Screw Systems Ø 1.2 / 1.5 / 2.0 mm
47.503.10	Screw Box for CMF System 1.0
47.503.50	Screw & Pin Box for 3 x 5 Ø 1.0 mm Screws, 10 Pins and Instruments
47.503.53	Screw & Pin Box for 2 x 5 Ø 1.2 mm Screws, 1 x 5 Ø 1.5 mm Screws and 10 Membrane Pins
85.540.51	CMF Screw Rack 1.2 / 1.2 mm - Stainless Steel Insert for Screw Boxes
85.540.52	CMF Screw Rack 1.2 / 1.5 mm - Stainless Steel Insert for Screw Boxes
85.540.54	CMF Screw Rack 1.5 / 1.5 mm - Stainless Steel Insert for Screw Boxes
85.540.55	CMF Screw Rack 1.5 / 2.0 mm - Stainless Steel Insert for Screw Boxes
85.540.60	Rack for CMF Screws Ø 1.0 x 4 / Ø 1.2 x 4 / Ø 1.5 x 2 - Stainless Steel
85.540.65	Rack for CMF Screws Ø 1.2 x 5 / Ø 1.5 x 5 - Stainless Steel

Precision Engineering for Demanding CMF Applications

The Helmut Zepf CMF System Original was developed in close collaboration with experienced maxillofacial surgeons, resulting in instrument geometry optimized for precision and ergonomic control. Each instrument features high-grade stainless steel construction, ensuring long-term durability and dependable compatibility with standard sterilization protocols used in hospital and clinical environments.

• Specialized CMF instruments engineered for accuracy and stability
• Fixation and handling tools designed for secure intraoperative control
• Modular system components supporting efficient surgical workflow
• Ergonomic design for reduced surgeon fatigue during complex procedures
• High-grade stainless steel for reliable sterilization and longevity

A Comprehensive Modular System

The modular architecture of the Helmut Zepf CMF System Original supports a wide range of maxillofacial applications, from trauma repair to reconstructive and elective surgical interventions. Its system design enables surgeons to configure instrument sets according to procedural requirements, ensuring predictable outcomes and streamlined intraoperative workflows across diverse clinical settings.

German Craftsmanship and Global Trust

Trusted by surgeons worldwide, the Helmut Zepf CMF System Original represents the standard in premium German-made cranio-maxillofacial instrumentation. Manufactured to exacting tolerances in Germany, each component reflects a commitment to surgical innovation and uncompromising craftsmanship. Explore the full collection at Deutsche Dental Technologien, where precision meets reliability in every instrument.

Clinical Use

The CMF System is used for screw fixation in cranio-maxillofacial and oral surgery, including maxillofacial trauma repair and reconstructive surgery. The drill bits (Ø 0.8–2.0 mm, RA shank) prepare the pilot hole, the matching screwdriver blade or inserting device places the titanium or stainless steel micro screw, and the boxes and racks keep each screw size organized in the operating room and during reprocessing.

Care and Reconditioning

Clean, inspect and sterilize after every use following the manufacturer’s reprocessing instructions. Our Surgical Instrument Reprocessing & Sterilization Guide covers the full workflow.

Compare With

Related Helmut Zepf collections: CMF 1.0 System, CMF 1.2 System, CMF 1.5 System, Bone Augmentation Sets and Components, Implantology Instruments and Sterilization Cassettes. Reference pages: Surgical Instrument Comparison Chart and Surgical Instrument Glossary.

FAQ

What procedures is the Helmut Zepf CMF System Original designed for? It is designed for cranio-maxillofacial and oral surgical procedures, including maxillofacial trauma repair, reconstructive surgery, and complex surgical interventions.

Is the system compatible with standard sterilization methods? Yes. The high-grade stainless steel construction ensures reliable compatibility with standard hospital sterilization protocols.

Where is the Helmut Zepf CMF System Original manufactured? All instruments are manufactured in Germany to the highest quality standards, reflecting precision German engineering and craftsmanship.

Manufacturer literature: ZEPF CMF System flyer (PDF) — more in our Surgical Instrument Library.
