Dental Needle Holders Compared: Castroviejo vs Mathieu vs Crile-Wood vs Mayo-Hegar

Choosing the right dental needle holders shapes how efficiently and precisely you place sutures, whether you're closing a simple extraction site or managing delicate periodontal flaps. Not every pattern handles every case the same way, and the differences in jaw design, lock mechanism, and shaft length matter more than they might first appear.

Revised on October 1, 2026

Four patterns dominate oral surgery and general dentistry: the micro-precision Castroviejo, the ratcheting Mathieu, the general-purpose Crile-Wood, and the classic Mayo-Hegar. Each was engineered for a different balance of control, speed, and tissue delicacy.

This guide compares all four side by side so you can match instrument to procedure. Browse the complete Dental Needle Holders collection from Helmut Zepf to see every size and jaw configuration available.

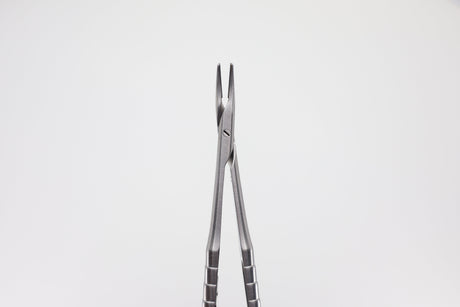

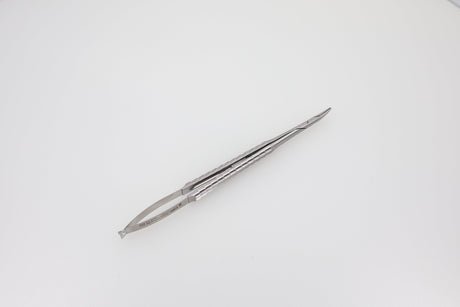

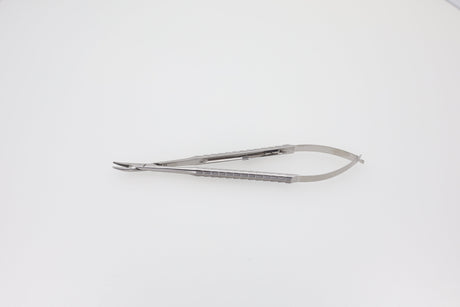

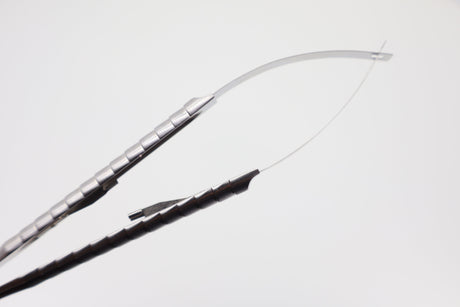

Castroviejo: Micro-Precision Control for Delicate Tissue

The Castroviejo pattern is built for fine, controlled work rather than speed. Instead of a traditional box-lock ratchet, most Castroviejo needle holders use a spring-loaded or spinlock mechanism that the clinician engages with a light rotational or thumb motion — no palming or repositioning required mid-suture. Slim, tapered jaws give excellent tactile feedback on 5-0 to 7-0 suture material, which is why this pattern is the standard choice for periodontal plastic surgery, papilla preservation, connective tissue grafting, and aesthetic zone implant closures where jaw bulk and hand fatigue work against precision. Because the spring action returns the jaws to open position automatically, many clinicians also find it faster for repetitive, closely spaced interrupted sutures than a ratcheting design that must be manually released each pass.

Best for: fine periodontal, implant, and microsurgical closures — reach for the Castroviejo Needle Holder, Straight, 17.5 cm, SpinLock, Tungsten Carbide Jaws when needle control on thin sutures matters more than raw throughput.

Mathieu: Fast, One-Handed Ratcheting for Routine Suturing

Mathieu needle holders use a spring-and-ratchet handle that locks and releases with a single squeeze — no interlocking rings to thread fingers through. That single-handed action makes the Mathieu pattern a favorite for high-volume extraction closures, flap repositioning, and general oral surgery where speed and a secure hold matter more than micro-level tactile feedback. Tungsten carbide jaw inserts hold 3-0 and 4-0 sutures confidently through a full case load without the jaws opening under load.

Best for: routine extraction sites and general surgical flap closures — the Mathieu Needle Holder, Straight, 17 cm, Tungsten Carbide Jaws keeps pace through back-to-back procedures without hand fatigue.

Crile-Wood and Mayo-Hegar: The General-Purpose Workhorses

Crile-Wood and Mayo-Hegar are both traditional box-lock, ratcheting patterns and are frequently used interchangeably, but their jaw geometry differs. Crile-Wood jaws carry fine longitudinal serrations along the full jaw length, giving a broad, even grip that suits a range of suture gauges from delicate to moderate. Mayo-Hegar jaws use shorter, cross-hatched serrations and a heavier overall build, making them the more traditional choice for thicker sutures and denser tissue, including some oral and maxillofacial procedures alongside general oral surgery. Both are available with tungsten carbide jaw inserts for practices that want longer service life between resharpening, and both take well to the multi-instrument autoclave trays most oral surgery suites already run.

Best for: everyday general-purpose suturing across suture gauges — pair the Crile-Wood Needle Holder, Straight, 15 cm, Tungsten Carbide Jaws with finer sutures and the Mayo-Hegar Needle Holder, Straight, 16 cm when you need a heavier-duty grip.

Ryder, Derf and Other Needle Holder Patterns

Beyond the four main patterns, the Helmut Zepf range includes two more needle holder types that answer specific intraoral problems.

The Ryder needle holder is the fine-needle pattern: slim jaws with tungsten carbide inserts, sized for small curved needles that a Mayo-Hegar or Crile-Wood jaw would overpower. Zepf makes the ring-handled Ryder Needle Holder, Straight, 15 cm, Tungsten Carbide Jaws (No. 41.352.15TC), which cross-references to the Mini-Ryder and Micro-Ryder designations of other brands, plus the Lichtenberg-Ryder at 17 cm with a detent-and-latching lock in straight (No. 41.318.17TC) and curved (No. 41.317.17TC) versions. See the Ryder Needle Holder collection.

The Derf needle holder is the short one: a straight, 12 cm box-lock holder that sits well inside the mouth for anterior suturing and tight fields where a 15 to 17 cm shaft gets in the way of the mirror or the lip. Zepf offers it with plain steel jaws (No. 41.240.12) and with tungsten carbide jaws (No. 41.362.12); both are in the Derf Needle Holder collection.

Webster and Halsey are two further needle holder patterns you will see in general surgical catalogs; neither is in the Zepf range, and the Derf and Ryder cover the same short-shaft and fine-needle roles. Tungsten carbide jaws are available across most patterns in the Tungsten Carbide Needle Holder collection, and the finest spring-lock instruments are grouped in the Micro and Castroviejo Needle Holders collection.

Pattern	Lock Mechanism	Jaw Serration	Best Suited To
Castroviejo	Spinlock / spring, no ratchet	Fine, tapered	Microsurgery, periodontal, implant, aesthetic zone
Mathieu	Spring-ratchet, one-handed squeeze	Medium, cross-hatched	General extraction and flap closures
Crile-Wood	Box-lock ratchet	Fine longitudinal	General-purpose, delicate to moderate sutures
Mayo-Hegar	Box-lock ratchet	Short cross-hatched, heavier jaw	General-purpose, thicker sutures and denser tissue
Ryder	Box-lock ratchet (Lichtenberg-Ryder: detent and latching)	Slim tungsten carbide jaws	Small needles and fine sutures; 15 or 17 cm
Derf	Box-lock ratchet	Standard, steel or tungsten carbide	Short 12 cm shaft for anterior and tight intraoral fields

FAQs

What is a Castroviejo needle holder used for in dentistry?
A Castroviejo needle holder is used for fine, high-precision suturing — periodontal plastic surgery, implant soft-tissue closures, and papilla preservation — where its spring-loaded, ratchet-free grip gives better tactile feedback on delicate suture material than a traditional box-lock design.

What's the difference between a Crile-Wood needle holder and a Mayo-Hegar?
Both are box-lock, ratcheting patterns, but the Crile-Wood has fine longitudinal jaw serrations suited to a range of suture gauges, while the Mayo-Hegar has shorter cross-hatched serrations and a heavier build better suited to thicker sutures and denser tissue.

What size surgical needle holder do I need for most dental procedures?
For general oral surgery and extraction closures, a 14–17 cm surgical needle holder is typical. Shorter, finer instruments in the 12–15 cm range are better suited to periodontal and microsurgical work where intraoral access is tight.

Which suture needle holder works best for microsurgery?
Castroviejo-pattern instruments are the standard suture needle holder for microsurgical and periodontal plastic procedures because their slim jaws and spinlock mechanism minimize tissue disturbance around fine sutures.

Can Mathieu needle holders be used with fine sutures?
Mathieu needle holders are generally best reserved for 3-0 and 4-0 suture material. For 5-0 and finer, a Castroviejo or micro-pattern needle holder gives more precise control.

How many sterilization cycles can Helmut Zepf needle holders withstand?
Helmut Zepf instruments are manufactured from German surgical stainless steel and tungsten carbide inserts and are engineered to hold up through hundreds of autoclave cycles when reprocessed according to the manufacturer's instructions.
