Surgical Length – Extra Long Burs | FG-XL 25 mm & RA-XL 34 mm

Extra-long surgical burs — Busch’s FG-XL (25 mm overall) and RA-XL (34 mm overall) shanks — deliver maximum reach for oral surgery, third molar sectioning, subgingival and furcation work, and deep preparations where standard and 21/26 mm lengths fall short. The collection holds the figure 141 and 141A surgical round bone cutters in both shanks, the FG-XL crosscut round-end fissures 31RL and 33RL (US 557X, 558X, 701X–703X), and the FG-XLG ZIRAMANT zirconia diamonds (No. 6801LZ, 6838LZ, 8801LZ, 8838LZ).

Read more

Extra length trades some rigidity for reach, so run these at moderate speeds with a light touch — the slender profiles reward finesse over force. For routine posterior reach, the 21 & 26 mm collection may be all you need.

Shop 24 instrumentsWhich one do I need?
Since 1905 · ISO 13485 · Made in GermanyShips from the US
Surgical Length – Extra Long Burs | FG-XL 25 mm & RA-XL 34 mm
24 instruments
Jump to
View as
Guides & charts for this collection

Reference pages already linked from this collection, in one place.

Care guideDental Bur Reprocessing & Sterilization GuideChartBur Comparison ChartGuideSurgical Bur GuideGlossaryDental Bur GlossaryChartSpeed Chart

Which Extra Long Bur Do You Need?

Bone cutters and diamonds are listed by head diameter (the Busch size code is tenths of a millimeter); the crosscut fissures by US number. Every active product in the collection is linked once below.

Surgical round bone cutters — figure 141 and 141A, FG-XL (25 mm) and RA-XL (34 mm)2 items
Busch figure Pattern Sizes by shank

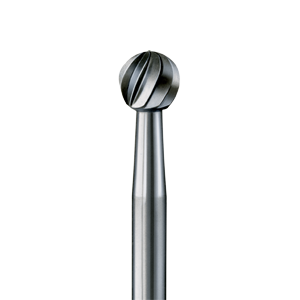

141 Carbide Surgical Round FG-XL: Ø 1 mm · Ø 1.2 mm · Ø 1.4 mm · Ø 1.8 mm · Ø 2.3 mm
RA-XL: Ø 1.4 mm · Ø 1.8 mm · Ø 2.3 mm · Ø 2.7 mm · Ø 3.1 mm · Ø 3.5 mm
141A Carbide Surgical Round — low-vibration A cut RA-XL: Ø 2.3 mm · Ø 2.7 mm · Ø 3.1 mm · Ø 3.5 mm
FG-XL (25 mm) — crosscut fissure bone cutters by US number2 items
Busch figure Pattern Sizes by shank

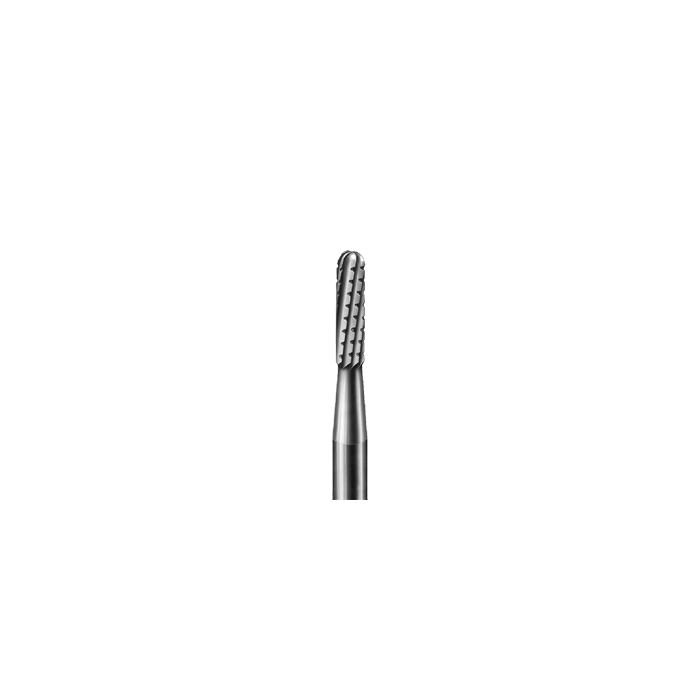

31RL Carbide Straight Fissure (Cylinder) Round — Crosscut FG-XL: US 557X · US 558X
33RL Carbide Tapered Fissure (Cone) Round — Crosscut FG-XL: US 701X · US 702X · US 703X
FG-XLG (25 mm) — ZIRAMANT zirconia diamonds4 items
Busch figure Pattern Sizes by shank
6801LZ Ziramant Round — Coarse Grit, Green Ring FG-XLG: Ø 1.4 mm
6838LZ Ziramant Cylinder Round — Coarse Grit, Green Ring FG-XLG: Ø 1.2 mm
8801LZ Ziramant Round — Fine Grit, Red Ring FG-XLG: Ø 1.1 mm

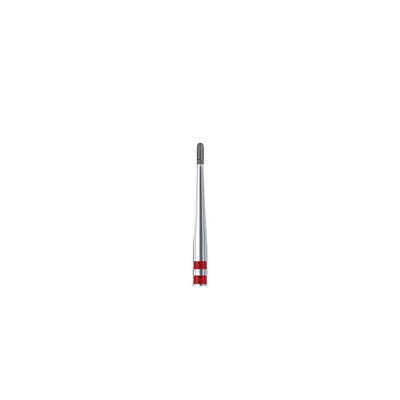

8838LZ Ziramant Cylinder Round — Fine Grit, Red Ring FG-XLG: Ø 0.9 mm

Clinical Use

The 141 and 141A surgical rounds remove bone and section impacted third molars with the handpiece head well clear of the flap — FG-XL on the turbine, RA-XL on the contra-angle for the deepest sites; the 31RL/33RL crosscut round-end fissures (US 557X–703X) are the surgical-length versions of the familiar 557/558 and 701–703 for sectioning crowns and roots; and the ZIRAMANT round and cylinder diamonds in coarse (green ring) and fine (red ring) grits reach zirconia restorations and abutments in deep or posterior positions.

Care and Reconditioning

Extra-long burs are cleaned, disinfected, and sterilized between patients in a bur block, with the slender shank protected from bending; inspect for straightness before each use and discard any bur that has been bent or run against metal. Our Dental Bur Reprocessing & Sterilization Guide covers the full workflow for Busch rotary instruments.

Compare With

Related Busch collections: Surgical Length Burs (21 & 26 mm), Oral Surgery Burs, 164 LA Bone Cutters, ZIRAMANT Zirconia Diamonds, and FG Burs. For shank codes and figure numbers, see the Bur Comparison Chart, the Surgical Bur Guide, and the Dental Bur Glossary.

Reference resources: Bur Comparison Chart · Speed Chart · Glossary

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What is a 25 mm surgical bur used for?

Sectioning impacted third molars, removing bone with visibility, and reaching deep or subgingival sites — the classic American “surgical length FG” is this 25 mm format.

21/26 mm or 25/34 mm?

Choose the shorter surgical lengths for routine posterior reach; step up to 25/34 mm when surgical depth demands maximum working length.

Do these fit standard handpieces?

Yes — the chuck-held portion is standard; the additional length is all exposed shank.

Where are these instruments made?

Every instrument in this collection is manufactured by Busch & Co. in Engelskirchen, Germany — an ISO 13485-certified specialist in rotary precision instruments since 1905 — and ships fast from our US warehouse.
