Busch & Co. · Collection

Wheel & Disc Instruments

Wheel and disc instruments are Busch rotary wheels in four families: diamond wheel burs (figures 818, 902, 908, 909, 3818, 5909 and 6909), steel and carbide wheels (figure 3 in US Nos. 12–18, and 452S), wheel abrasives (figures 619, 620, 622, 623, 626, 627, 703, 711, 712, 716, plus the D702 and D712 diamond abrasives), and wheel polishers and pre-polishers (figures 9581 to 9966) in FG, RA and HP shanks.

Read more

From chairside contouring and polishing to laboratory trimming, wheel work rewards true running — and Busch’s balanced manufacture keeps large diameters stable at speed.

Shop 72 instrumentsWhich one do I need?
Since 1905 · ISO 13485 · Made in GermanyShips from the US
Wheel & Disc Instruments
72 instruments
Jump to
View as
Guides & charts for this collection

Reference pages already linked from this collection, in one place.

ChartDental Bur Speed ChartCare guideDental Bur Reprocessing & Sterilization GuideChartBur Comparison ChartGuideColor Coding & ISO GuideGlossaryDental Bur Glossary

Which Wheel or Disc Instrument Do You Need?

Pick the family by material and job, then the figure and shank. The last number of each Busch number is the size code shown on the product title. Every active product in the collection is linked once below.

Diamond wheel burs7 items
Busch figure Pattern Size codes by shank
818 Diamond Wheel Bur — Medium Grit FG: 050
HP: 023 · 035 · 050 · 070

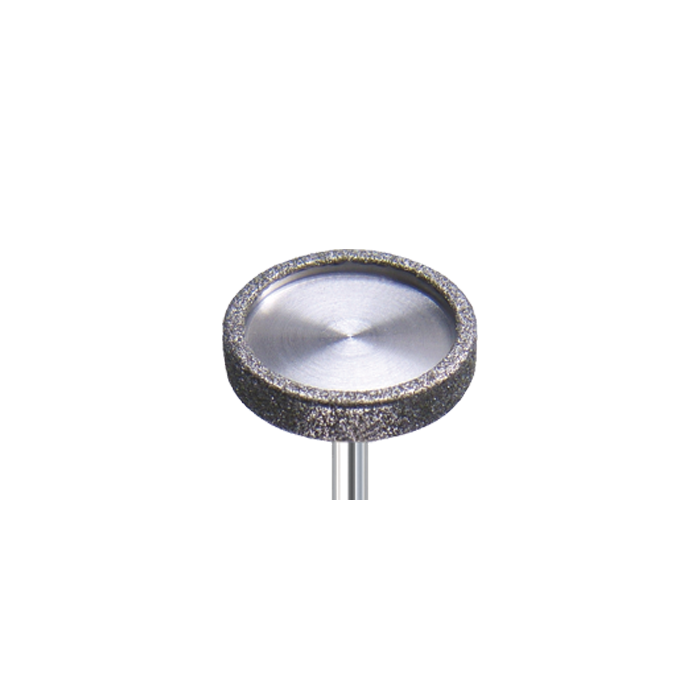

902 Diamond Wheel Bur — Medium Grit HP: 150
908 Diamond Extra Long Wheel Bur — Medium Grit FG: 026
909 Diamond Wheel Bur — Medium Grit FG: 040 · 055
HP: 040 · 055
3818 LongLife Diamond Sintered Wheel Bur HP: 080
5909 Diamond Wheel Bur — Super Coarse Grit, Black Ring FG: 040
6909 Diamond Wheel Bur — Coarse Grit, Green Ring FG: 040
Steel and carbide wheels (HP)3 items
Busch figure Pattern Size codes by shank
3 Carbide Wheel HP: US 14 (012)
3 Steel Wheel HP: 007 · 009 · US 12 (008) · US 13 (010) · US 14 (012) · US 15 (014) · US 16 (016) · US 17 (021) · 018 · US 18 (023) · 025 · 027 · 029 · 050
452S Steel Wheel HP: 100
Wheel abrasives12 items
Busch figure Pattern Size codes by shank
619 Wheel Abrasive RA: 050 — Green
HP: 050 — Pink
620 Wheel Abrasive HP: 050 — Pink
622 Wheel Abrasive RA: 060 — Green
HP: 060 — Green
623 Wheel Abrasive HP: 060 — Pink
626 Wheel Abrasive RA: 050 — Green
627 Wheel Abrasive RA: 060 — Green
HP: 060 — Pink
D702 Diamond Wheel Abrasive HP: 120 — Pink, Medium
703 Wheel Abrasive HP: 130 — Pink
711 Wheel Abrasive HP: 080 — Pink
D712 Diamond Wheel Abrasive HP: 120 — Green
712 Wheel Abrasive HP: 095 — Pink
716 Wheel Abrasive HP: 160 — Pink
Wheel polishers and pre-polishers — ceramic diamond8 items
Busch figure Pattern Size codes by shank
9811 Ceramic Diamond Wheel Polisher — Medium RA: 140
9821 Ceramic Diamond Wheel Polisher — Fine RA: 140
9952 Ceramic Diamond Wheel Polisher — Red, Medium HP: 110

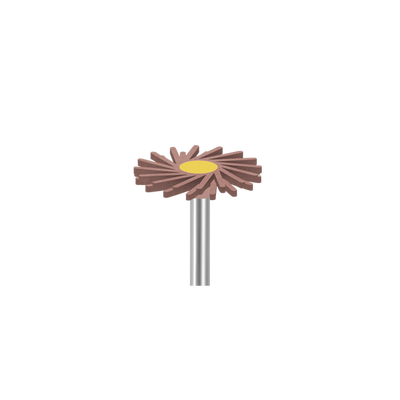

9955 Ceramic Diamond Wheel Polisher — Red, Medium HP: 170
9956 Ceramic Diamond Wheel Polisher — Red, Medium HP: 170
9962 Ceramic Diamond Wheel Polisher — Green, Fine HP: 110
9965 Ceramic Diamond Wheel Polisher — Green, Fine HP: 170
9966 Ceramic Diamond Wheel Polisher — Green, Fine 170
Wheel polishers — diamond composite2 items
Busch figure Pattern Size codes by shank
9581 Diamond Composite Wheel Polisher — Grey, Fine RA: 140
9591 Diamond Composite Wheel Polisher — Pink, Medium RA: 140
Wheel polishers — zirconia diamond8 items
Busch figure Pattern Size codes by shank
9852 Zirconia Diamond Wheel Polisher — Medium HP: 110
9855 Zirconia Diamond Wheel Polisher — Turquoise, Medium HP: 170
9856 Zirconia Diamond Wheel Polisher — Turquoise, Medium 170
9862 Zirconia Diamond Wheel Polisher — Pink, Fine HP: 110
9865 Zirconia Diamond Wheel Polisher — Pink, Fine HP: 170
9866 Zirconia Diamond Wheel Polisher — Pink, Fine 170
9911 Zirconia Diamond Wheel Polisher — Medium RA: 140
9921 Zirconia Diamond Wheel Polisher — Fine RA: 140
Wheel polishers and pre-polishers — metal9 items
Busch figure Pattern Size codes by shank
9602 Metal Wheel Pre-Polisher — Brown, Medium 220
9602G Wheel Polisher — White, Coarse Grit 220
9611 Metal Wheel Polisher — Brown, Medium RA: 140
9612 Metal Wheel Polisher — Green, Fine Grit 220
9621 Metal Wheel Polisher — Green, Fine RA: 140
9660 Steel Wheel Pre-Polisher — Mocha, Medium 220
9702 Metal Wheel Pre-Polisher — Brown, Medium HP: 145
9702G Wheel Polisher — White, Coarse Grit HP: 145
9712 Metal Wheel Polisher — Green, Fine HP: 145

Laboratory Use

Diamond wheel burs cut and contour in medium, coarse (green ring, 6909) and super coarse (black ring, 5909) grits, the figure 3 steel wheels are available in US Nos.

12–18 and the US 14 also as a carbide wheel, the wheel abrasives and D702/D712 diamond abrasives are made for metal alloys, ceramic, acrylic and zirconia, and the polishers step from pre-polish to high shine on ceramic, composite, zirconia and metal; HP shank instruments are the straight-handpiece (laboratory) versions, while the FG diamond wheels and the RA polishers fit chairside handpieces.

Clinical Use

Chairside, the FG diamond wheel burs (figures 818, 908, 909, 5909 and 6909) run in the high-speed handpiece, and the RA wheel polishers and green wheel abrasives (figures 619, 622, 626 and 627) run in the contra-angle to contour and polish composite, ceramic, zirconia and metal restorations. The HP instruments and the large-diameter polishing wheels are laboratory instruments; see our Dental Bur Speed Chart for the speed range of each shank.

Care and Reconditioning

Wheels and polishers are cleaned of debris, disinfected or cleaned as appropriate, and inspected for true running before reuse; a wheel that runs out of true, a worn abrasive, or a polisher that has lost its coating is discarded rather than reconditioned. Our Dental Bur Reprocessing & Sterilization Guide covers the full workflow for Busch rotary instruments.

Compare With

Related Busch collections: Lab Abrasive Discs, Stones & Wheels, Lab Diamond Disc & Saw Burs, HP Burs, and RA Burs. For figure numbers and color coding, see the Bur Comparison Chart, the Color Coding & ISO Guide, and the Dental Bur Glossary.

Reference resources: Bur Comparison Chart · Speed Chart · Color Coding & ISO Guide · Glossary

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What are dental discs used for?

Separating and sectioning, which this wheel collection does not cover; the wheel burs, abrasives and polishers here contour, reduce and polish in clinical and laboratory settings. For separating and sectioning discs, see the Lab Diamond Disc & Saw Burs collection.

Do unmounted wheels need a mandrel?

Yes — unmounted wheels and discs pair with Busch mandrels; see the Dental Mandrel Collection by Busch for the matching carriers.

Where are these instruments made?

Every instrument in this collection is manufactured by Busch & Co. in Engelskirchen, Germany — an ISO 13485-certified specialist in rotary precision instruments since 1905 — and ships fast from our US warehouse.
