Busch & Co. · Collection

Round End Taper Diamonds

Round end taper diamonds — the 856 family (Busch No. 850, 851, 855, 856 and their 5xxx super coarse, 6xxx coarse, 8xxx fine, and EF extra fine ring-coded grits) — are the standard crown preparation shape: axial reduction and a rounded chamfer margin from one instrument.

Read more

Because the collection gathers every Busch taper-round figure, it also holds the Cool-Diamant and ZIRAMANT diamonds, the 38R carbide crown cutters and 375R finishers, and the HP laboratory taper-round cutters. Every instrument on this page is a genuine Busch product and ships from our US warehouse.

Busch’s diamond coating consistency means predictable cutting from first prep to last, and the shared DIN figure system means the 856 figure and size numbers read the same across bur catalogs — see the comparison chart linked below.

Shop 144 instrumentsWhich one do I need?
Since 1905 · ISO 13485 · Made in GermanyShips from the US
Round End Taper Diamonds
144 instruments
Jump to
View as
Guides & charts for this collection

Reference pages already linked from this collection, in one place.

Care guideDental Bur Reprocessing & Sterilization GuideChartBur Comparison ChartGlossaryDental Bur GlossaryChartSpeed ChartGuideColor Coding & ISO Guide

Which Round End Taper Diamond Do You Need?

Pick grit by ring color, then the figure and head size; Busch head sizes are tenths of a millimeter. Every active product in the collection is linked once below.

Diamond taper round burs — 850/856 family, ring-coded grits20 items
Busch figure Pattern Sizes by shank
849 Diamond Bur — Medium Grit HP: Ø 1.6 mm
850 Diamond Bur — Medium Grit FG: Ø 1.2 mm · Ø 1.4 mm · Ø 1.6 mm · Ø 1.8 mm · Ø 2.3 mm
HP: Ø 1.4 mm · Ø 1.6 mm · Ø 2.3 mm · Ø 3.7 mm
850EF Diamond Bur — Extra Fine Grit, Yellow Ring HP: Ø 1.6 mm
851 Diamond Bur — Medium Grit FG: Ø 1.2 mm · Ø 1.6 mm
854R Diamond Bur — Medium Grit HP: Ø 3.3 mm · Ø 4 mm
855 Diamond Bur — Medium Grit FG: Ø 1.2 mm · Ø 1.4 mm · Ø 2.5 mm
HP: Ø 2.5 mm
856 Diamond Bur — Medium Grit FG: Ø 1.2 mm · Ø 1.4 mm · Ø 1.6 mm · Ø 1.8 mm
HP: Ø 1.4 mm
856EF Diamond Bur — Extra Fine Grit, Yellow Ring FG: Ø 1.2 mm · Ø 1.6 mm
957EF Diamond Bur — Extra Fine Grit, Yellow Ring FG: Ø 0.9 mm
5369 Diamond Bur — Super Coarse Grit HP: Ø 5.5 mm · Ø 6.5 mm · Ø 8.5 mm
5850 Diamond Bur — Super Coarse Grit, Black Ring FG: Ø 1.6 mm
5856 Diamond Bur — Super Coarse Grit, Black Ring FG: Ø 1.4 mm · Ø 1.6 mm · Ø 1.8 mm
6850 Diamond Bur — Coarse Grit, Green Ring FG: Ø 1.2 mm · Ø 1.4 mm · Ø 1.6 mm · Ø 1.8 mm · Ø 2.3 mm
HP: Ø 2.5 mm
6854R Diamond Bur — Coarse Grit, Green Ring HP: Ø 3.5 mm
6855 Diamond Bur — Coarse Grit, Green Ring FG: Ø 1.2 mm · Ø 2.5 mm
6856 Diamond Bur — Coarse Grit, Green Ring FG: Ø 1.2 mm · Ø 1.4 mm · Ø 1.6 mm · Ø 2.1 mm · Ø 2.3 mm
8850 Diamond Bur — Fine Grit, Red Ring FG: Ø 1.2 mm · Ø 1.4 mm · Ø 1.6 mm
HP: Ø 1.4 mm · Ø 1.6 mm · Ø 2.3 mm
8854R Diamond Bur — Fine Grit, Red Ring HP: Ø 3.3 mm · Ø 4 mm
8855 Diamond Bur — Fine Grit, Red Ring FG: Ø 1.2 mm
8856 Diamond Bur — Fine Grit, Red Ring FG: Ø 1.2 mm · Ø 1.4 mm · Ø 1.6 mm · Ø 1.8 mm · Ø 2.1 mm
Cool-Diamant taper round diamonds (low-heat), FG5 items
Busch figure Pattern Sizes by shank

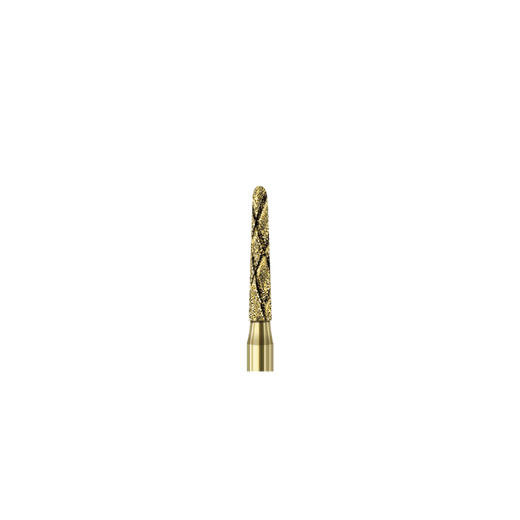

CD 48 Cool-Diamant Bur FG: Ø 1.6 mm
CD 48G Cool-Diamant Bur — Coarse Grit FG: Ø 1.6 mm · Ø 1.8 mm
CD 51 Cool-Diamant Bur FG: Ø 1.6 mm · Ø 1.8 mm
CD 51G Cool-Diamant Bur — Coarse Grit FG: Ø 1.6 mm · Ø 1.8 mm
CD45 Cool-Diamant Bur FG: Ø 1.4 mm
ZIRAMANT taper round diamonds for zirconia3 items
Busch figure Pattern Sizes by shank
6855Z Ziramant Bur — Coarse Grit, Green Ring FG-LG: Ø 2.5 mm
6855Z Ziramant Crown Cutter — Coarse Grit, Green Ring FG: Ø 1.4 mm
8855Z Ziramant Bur — Fine Grit, Red Ring FG-LG: Ø 2.1 mm
LongLife sintered diamond taper rounds, HP3 items
Busch figure Pattern Sizes by shank
1850 LongLife Diamond Sintered Bur HP: Ø 3.1 mm
1893 LongLife Diamond Sintered Bur HP: Ø 5 mm
3850 LongLife Diamond Sintered Bur HP: Ø 3.1 mm
Carbide taper round crown cutters and finishers, FG4 items
Busch figure Pattern Sizes by shank
38R Carbide Crown Cutter FG: Ø 1 mm · Ø 1.2 mm
38RD Carbide Crown Cutter FG: Ø 1 mm · Ø 1.2 mm
38RDL Carbide Crown Cutter FG: Ø 1 mm · Ø 1.2 mm
375R Carbide Finishing Bur FG: US 7675 · US 7686
Laboratory carbide taper round cutters, HP (429/432/433, Midis, Shorties)29 items
Busch figure Pattern Sizes by shank
M 433FFX Midis Carbide Bur HP: Ø 1.6 mm · Ø 2.3 mm
M 433FX Midis Carbide Bur HP: Ø 1.6 mm · Ø 2.3 mm
M 433GQSR Midis Carbide Bur HP: Ø 1.6 mm · Ø 2.3 mm
M 433MQS Midis Carbide Bur HP: Ø 1.6 mm · Ø 2.3 mm
M 433X Midis Carbide Bur HP: Ø 1.6 mm · Ø 2.3 mm
M 433XTI Midis Carbide Bur HP: Ø 2.3 mm
S 433FFX Shorties Carbide Bur HP: Ø 1.4 mm · Ø 2.3 mm
S 433FX Shorties Carbide Bur HP: Ø 1.4 mm · Ø 2.3 mm
S 433X Shorties Carbide Bur HP: Ø 1.4 mm · Ø 2.3 mm
S 433XTI Shorties Carbide Bur HP: Ø 2.3 mm
23SRF Cutter — Fine Grit HP: Ø 1 mm
23SRX Carbide Bur — Crosscut HP: Ø 0.8 mm · Ø 1 mm
429 Carbide Cutter HP: Ø 3.1 mm · Ø 4.5 mm · Ø 6 mm
429FFX Carbide Cutter — Extra Fine Crosscut HP: Ø 4.5 mm
429FX Carbide Cutter — Fine Crosscut HP: Ø 3.1 mm · Ø 4 mm · Ø 4.5 mm · Ø 6 mm
429G Carbide Cutter — Coarse Cut HP: Ø 4.5 mm
429GX Carbide Bur — Coarse Grit, Crosscut HP: Ø 4.5 mm · Ø 6 mm · Ø 7 mm
429GXA Carbide Bur — Coarse Grit, XA-Cut HP: Ø 6 mm
429MQS Carbide Cutter — Medium Grit, Crosscut HP: Ø 4 mm
429SGX Carbide Cutter — Super Coarse Grit, Crosscut HP: Ø 4.5 mm · Ø 6 mm · Ø 7 mm
429SGXA Carbide Cutter — Super Coarse Grit, XA-Cut HP: Ø 6 mm · Ø 7 mm
429X Carbide Cutter — Crosscut HP: Ø 3.1 mm · Ø 4 mm · Ø 4.5 mm · Ø 6 mm
429XTI Carbide Cutter — XTI-Cut HP: Ø 4 mm
432FX Carbide Cutter — Fine Crosscut HP: Ø 2.3 mm
432FXK Carbide Conical Cutter HP: Ø 2.3 mm
432X Carbide Cutter — Crosscut HP: Ø 2.3 mm
433FX Carbide Cutter — Fine Crosscut HP: Ø 2.3 mm
433MQS Carbide Cutter — Medium Grit, Crosscut HP: Ø 2.3 mm
433X Carbide Cutter — Crosscut HP: Ø 2.3 mm · Ø 6 mm
Ceramic (KERA) taper round cutters, HP4 items
Busch figure Pattern Sizes by shank
K424GQSR Ceramic Cutter HP: Ø 6 mm
K424X Ceramic Cutter HP: Ø 4 mm · Ø 6 mm
K429GQSR Ceramic Cutter HP: Ø 4 mm
K429X Ceramic Cutter HP: Ø 4 mm · Ø 6 mm
Cera-Plus abrasives, HP2 items
Busch figure Pattern Sizes by shank
CP649R Cera-Plus Abrasive — Fine Grit HP: Ø 2.5 mm
CP652R Cera-Plus Abrasive — Fine Grit HP: Ø 3.3 mm

Clinical Use

For a crown preparation, start bulk axial reduction with a super coarse (black ring) or coarse (green ring) 856, then refine the chamfer margin with the same figure in fine (red) or extra fine (yellow) grit; the 850 and 855 carry the same taper in other head sizes, the 38R carbide crown cutters section old crowns, and the 375R carbide finishers smooth the preparation.

Cool-Diamant figures cut with less heat, ZIRAMANT figures are made for zirconia, and the HP cutters, ceramic cutters, and Cera-Plus abrasives are laboratory instruments for acrylic, alloy, and ceramic.

Care and Reconditioning

Diamond and carbide taper rounds are cleaned, disinfected, and sterilized between patients in a bur block; a diamond whose grit no longer cuts freely, or a carbide with a chipped blade, is discarded rather than reused. Our Dental Bur Reprocessing & Sterilization Guide covers the full workflow for Busch rotary instruments.

Compare With

Related Busch collections: 856 Tapered Diamond Burs, 850 Tapered Round End Diamond Burs, 847 Tapered Flat End Diamond Burs, Torpedo Burs & Diamonds, and Busch Crown Preparation Burs. For cross-brand figure numbers and terminology, see the Bur Comparison Chart and the Dental Bur Glossary.

Reference resources: Bur Comparison Chart · Speed Chart · Color Coding & ISO Guide · Glossary

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What is an 856 bur?

The round end taper diamond — the standard crown and bridge preparation shape, producing axial reduction with a rounded chamfer finish line.

Which grit sequence for crown prep?

Coarse (green) or super coarse for bulk reduction, then fine (red) or extra fine (yellow) for margin refinement — same figure, different ring.

Where are these diamonds made?

Every instrument in this collection is manufactured by Busch & Co. in Engelskirchen, Germany — an ISO 13485-certified specialist in rotary precision instruments since 1905 — and ships fast from our US warehouse.
