Curette Insert, Gracey 1 M5, Titanium

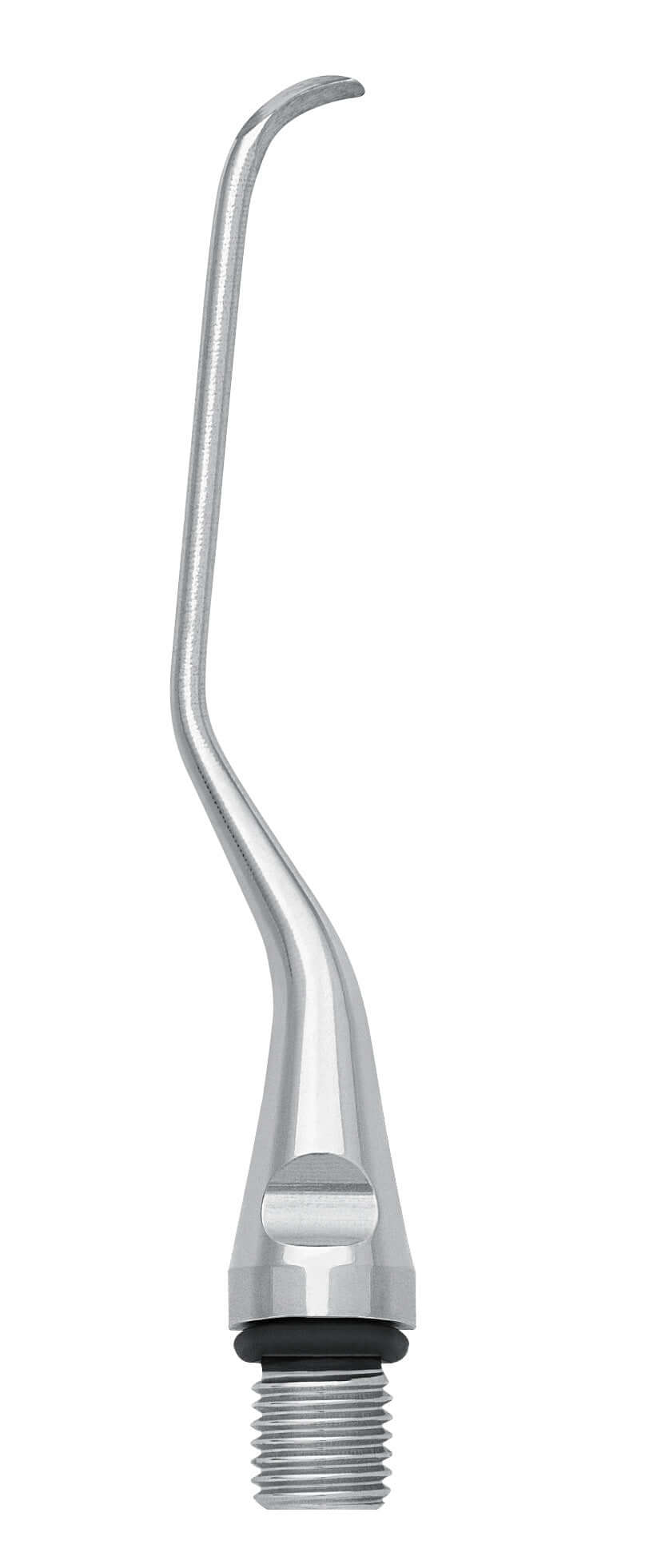

The Gracey Curette Insert is a precision periodontal instrument designed for area-specific subgingival scaling and root planing. Engineered by Helmut Zepf GmbH, the Gracey 1 M5 in titanium offers dental professionals a lightweight, corrosion-resistant alternative to conventional stainless steel instruments.

Key Features

• Titanium construction: Provides exceptional strength-to-weight ratio, reducing clinician fatigue during extended procedures.
• Area-specific design: The Gracey 1 geometry is optimized for anterior teeth and premolars, ensuring precise adaptation to root surfaces.
• Interchangeable insert: Threads into compatible Helmut Zepf handles for hand instrumentation, so the working end can be replaced without replacing the handle.
• Biocompatible material: Titanium is widely recognized for its biocompatibility and resistance to sterilization processes, supporting rigorous infection control protocols.
• Durable edge retention: The titanium alloy maintains a sharp, effective working edge over repeated use and sterilization cycles.

Clinical Application

This Gracey Curette Insert is suited for both supragingival and subgingival debridement in periodontal therapy. Its area-specific curvature allows clinicians to access and instrument root surfaces with minimal soft tissue trauma. The M5 designation refers to Zepf's deep-scaling design — a longer, thinner and more flexible first shank with a shortened working end (see Design Notes below) — making it a reliable choice for deep, narrow pockets in anterior and premolar regions.

Why Choose Titanium?

Titanium instruments offer a significant weight reduction compared to steel versions, contributing to improved tactile sensitivity and reduced hand fatigue. The material's inherent resistance to corrosion and compatibility with autoclave sterilization ensures long-term durability and hygiene compliance in clinical settings.

1-Year Warranty

This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What teeth is the Gracey 1 design intended for? The Gracey 1 pattern is primarily designed for use on anterior teeth and premolars, providing optimal angulation for these surfaces.

Which handles does this insert fit? It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.

Can titanium curette inserts be autoclaved? Titanium is generally autoclave-compatible, but always follow the manufacturer's sterilization guidelines for this specific instrument.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).

Titanium for implant maintenance: the titanium working ends remove accumulated plaque film from implant necks without damaging the implant surface — the material choice that makes routine maintenance around implants safe. Manufacturer literature (PDF).

Specifications: Zepf No. 24.751.101GM5-TI

The Gracey 1 working end is an area-specific curette for anterior teeth, used for subgingival scaling and root planing; the M5 version has a longer, thinner first shank and a shortened blade for deep, narrow pockets. The titanium execution is intended for implant maintenance. Swapping just the insert gives a fresh working end without buying a complete instrument.
