3D One Step Augmentation Set by Dr. Bernhard Giesenhagen | Helmut Zepf No. 47.500.31
The 3D One Step Augmentation Set by Dr. Bernhard Giesenhagen is a comprehensive trephine set engineered for augmentation procedures using the 3D Bone Ring Technique. Developed in collaboration with one of the field's leading specialists, this set brings together all essential instruments needed to execute the technique with precision and consistency in a clinical environment.
What's Included

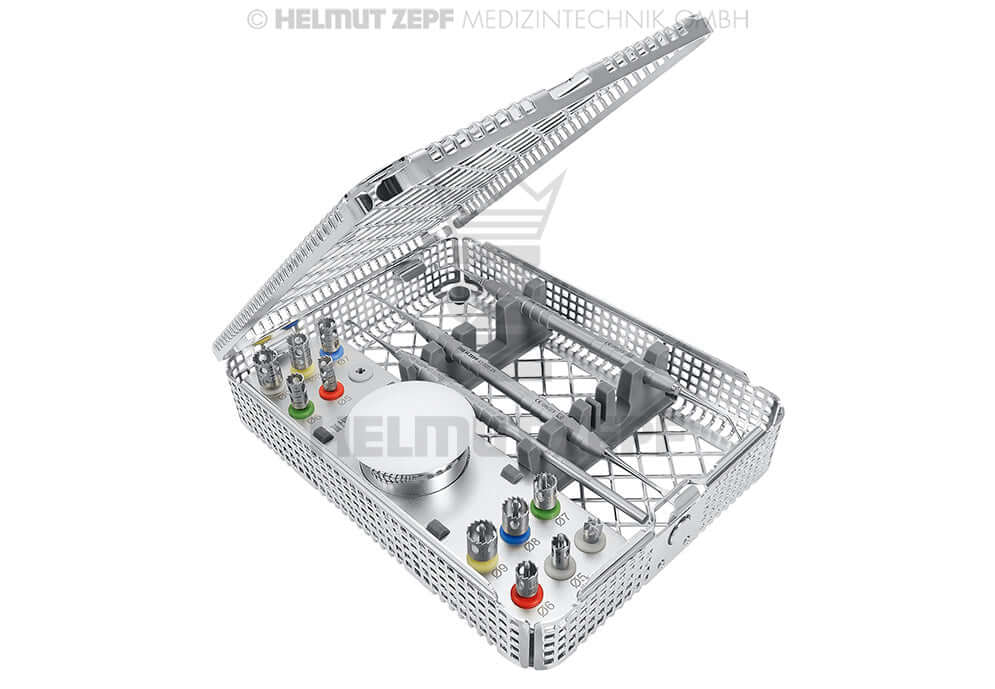

The 3D One Step Augmentation Set includes a ZEPFcare Washbasket along with the following product numbers listed in the table below. This curated selection of instruments is designed to support the full workflow of the 3D Bone Ring Technique from preparation through augmentation.
| Product No. | Product |
|---|---|
| 47.520.22 | — |
| 47.520.23 | Bone Ring Knife / Adenoid Curette - Ø 3 mm, ZEPF-Design |
| 47.520.25 | Bone Ring Breaker, Small and Large, Double-Ended |
| 08.910.13S | Trephine, Short - Inside Ø 5.0 mm, Sheath 2.35 x 30 mm, 9 Teeth, Graduation 7/10/13 Shorter Body 13.5 mm |
| 08.910.08S | Trephine, Short - Inside Ø 6.0 mm, Sheath 2.35 x 30 mm, 11 Teeth, Graduation 7/10/13 Shorter Body 13.5 mm |
| 08.910.09S | Trephine, Short - Inside Ø 7.0 mm, Sheath 2.35 x 30 mm, 17 Teeth, Graduation 7/10/13 Shorter Body 13.5 mm |
| 08.910.10S | Trephine, Short - Inside Ø 8.0 mm, Sheath 2.35 x 30 mm, 17 Teeth, Graduation 7/10/13 Shorter Body 13.5 mm |
| 08.910.11S | Trephine, Short - Inside Ø 9.0 mm, Sheath 2.35 x 30 mm, 17 Teeth, Graduation 7/10/13 Shorter Body 13.5 mm |
| 08.910.13F | Trephine with Fixation Support - Inside Ø 5.0 mm, Sheath 2.35 mm x 30 mm Lg, 9 Teeth Guiding Pin |
| 08.910.08F | Trephine with Fixation Support - Inside Ø 5.0 mm, Sheath 2.35 mm x 30 mm Lg. 9 Teeth Guiding Pin |
| 08.910.09F | Trephine with Fixation Support - Inside Ø 7.0 mm, Sheath 2.35 mm x 30 mm Lg, 9 Teeth Guiding Pin |
| 08.910.10F | Trephine with Fixation Support - Inside Ø 8.0 mm, with Guide Pin Sheath 2.35 mm x 30 mm Lg, 9 Teeth |
| 08.910.11F | Trephine with Fixation Support - Inside Ø 9.0 mm, Sheath 2.35 mm x 30 mm Lg, 9 Teeth Guiding Pin |
| 08.910.22 | Trephine Plain Milling Cutter - Ø 6.0 mm with Dental Lock |
| 85.251.04 | Dental Mixing Cup - Stainless Steel, Plastic Lid, Diam. 40 mm x 30 mm High (Usable On Both Sides) |
Optional Accessories
For extended functionality, optional accessories are available separately and must be ordered à la carte. These include product numbers 47.099.25 and 47.099.26. Please note these items are not included in the standard set.
Key Benefits
- Designed specifically for the 3D Bone Ring Technique
- Includes ZEPFcare Washbasket for efficient instrument management and sterilization workflow
- Comprehensive instrument selection supports a streamlined augmentation procedure
- Developed by Dr. Bernhard Giesenhagen, a recognized authority in bone augmentation
- Manufactured by Helmut Zepf GmbH to German quality standards
Made in Germany
As with all instruments from Helmut Zepf GmbH, the 3D One Step Augmentation Set is proudly made in Germany, reflecting a commitment to rigorous manufacturing standards and long-term instrument reliability.
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
Does the set include the optional accessories 47.099.25 and 47.099.26? No, these optional accessories are not included in the standard set and must be ordered separately à la carte.
What technique is the 3D One Step Augmentation Set designed for? It is designed specifically for the 3D Bone Ring Technique, a specialized approach to bone augmentation in implant dentistry.
Is the ZEPFcare Washbasket included? Yes, the ZEPFcare Washbasket is included in the set to support efficient instrument handling and sterilization management.
Manufacturer literature: 3D One Step Basic Set flyer (PDF) — more in our Surgical Instrument Library.
