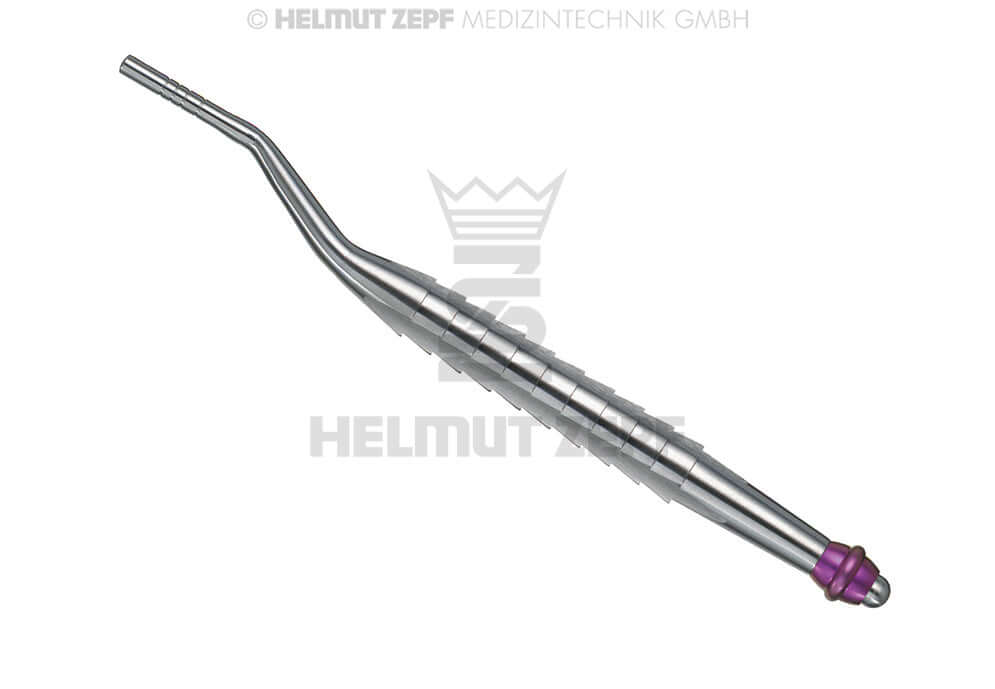

Osteotome Instrument, Convex, Angulated, Ø 3.4 / 3.8 Red Mark for Implants with Ø 4.3 | Helmut Zepf No. 47.945.38
The Dental Osteotome from Helmut Zepf is a precision-engineered surgical instrument designed to support controlled bone condensation and implant site preparation in clinical dentistry. This instrument features a convex, angulated tip with a working diameter of Ø 3.4 / 3.8 mm, identified by a red mark, and is specifically designed for use with implants of Ø 4.3 mm.
Key Features
- Design: Convex, angulated blade geometry for targeted bone displacement
- Working Diameter: Ø 3.4 / 3.8 mm (Red Mark)
- Indicated Implant Diameter: Ø 4.3 mm
- Reference Number: Helmut Zepf No. 47.945.38
- Origin: Made in Germany
Clinical Application
This Dental Osteotome is intended for use in implantology procedures where precise bone condensation, lateral compaction, or sinus floor elevation is required. The angulated design provides improved access in posterior regions, while the convex tip profile facilitates controlled, atraumatic bone preparation. The red mark color-coding system enables fast and reliable instrument identification during surgical workflows.
Quality and Craftsmanship
Manufactured by Helmut Zepf GmbH, this Dental Osteotome reflects the company's commitment to high-quality German craftsmanship. Each instrument is produced to exacting standards, supporting consistent clinical outcomes and long-term instrument durability. The Made in Germany designation underlines the quality standards associated with this product line.
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
What implant diameter is this Dental Osteotome designed for? This instrument is specifically designed for implants with a diameter of Ø 4.3 mm.
What does the red mark indicate? The red mark is a color-coding identifier corresponding to the Ø 3.4 / 3.8 mm working diameter, enabling quick visual identification during procedures.
Is this instrument made in Germany? Yes, this Dental Osteotome is manufactured by Helmut Zepf GmbH and carries the Made in Germany designation.
Compare With
| Brand | Osteotome — convex, angled, Ø 2.0–4.3 – Base Designation |
|---|---|
| Karl Schumacher | 47.945.20 / 47.945.28 / 47.945.33 / 47.945.38 / 47.945.43 |
| A. Titan | 321.01–321.06 |
Base pattern designations shown. Same clinical pattern, not identical manufacture — see our Surgical Instrument Comparison Chart.
Manufacturer literature: ZEPF Dental Catalog (PDF) — more in our Catalogs & Product Library.
Specifications: Helmut Zepf No. 47.945.38
| Zepf No. | 47.945.38 |
| Instrument type | Osteotome, convex tip, angled |
| Working end | Convex tip, angled, Ø 3.4 / 3.8 mm, red mark |
| Size / gauge | For Ø 4.3 mm implants |
| Part of set | Angulated Dental Osteotome Set (47.940.01) |
| Pack / sold as | Single instrument |
The convex tip compresses and widens the osteotomy walls laterally, which is the geometry used for ridge expansion and bone condensing before implant placement. The angled shank is for posterior sites, where a straight instrument cannot be aligned with the osteotomy without the mallet hitting the opposing teeth. At Ø 3.4 / 3.8 mm it is a mid-sequence size, following the narrower osteotomes; the red mark pairs it with Ø 4.3 mm implants.
Read the guides: Dental Osteotomes Explained · Implantology & Bone Regeneration · Osteotomes & Sinus Lift Instruments · All implantology instruments · All Helmut Zepf instruments
Backed by our Helmut Zepf Warranty — lifetime on extraction and explantation forceps, one year on every other Zepf instrument. Full terms and how to make a claim are on the Warranty page.
