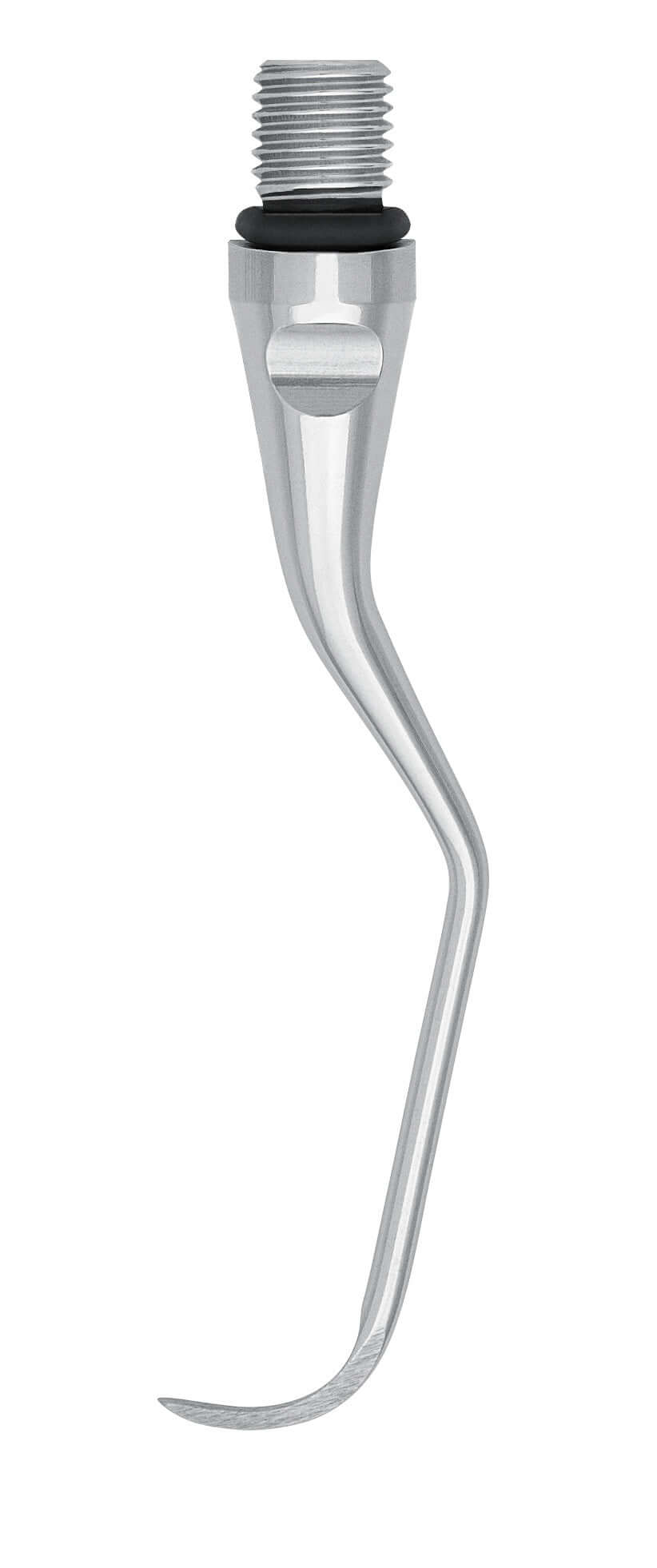

Curette Insert, Langer 6L M5, ZEPF NANOPAL Coating

Langer Universal Curette Insert – Precision Periodontal Instrumentation

The Langer Universal Curette Insert combines the design principles of the Gracey curette with universal adaptability, making it a trusted choice for comprehensive subgingival debridement. This particular instrument, the Langer 6L M5 from Helmut Zepf GmbH, features the advanced ZEPF NANOPAL Coating, engineered to enhance surface hardness and reduce friction during clinical use.

ZEPF NANOPAL Coating

The NANOPAL Coating applied to this Langer Universal Curette Insert is a specialized treatment designed to improve instrument longevity and performance. The coating helps maintain edge sharpness over repeated sterilization cycles while offering a smooth, low-resistance working surface that supports precise tactile feedback during scaling and root planing procedures.

Key Features

• Langer 6L M5 design for versatile multi-surface access
• ZEPF NANOPAL Coating for enhanced durability and reduced friction
• Interchangeable insert that threads into compatible Helmut Zepf handles
• Suitable for subgingival scaling and root debridement
• Manufactured by Helmut Zepf GmbH to professional dental instrument standards

Clinical Application

As a Langer Universal Curette Insert, the 6L M5 is designed to access both anterior and posterior regions of the oral cavity with a single instrument, streamlining periodontal workflows. The Langer design's offset blade geometry enables effective calculus removal on multiple tooth surfaces without the need to swap instruments frequently.

1-Year Warranty

This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What is a Langer Universal Curette Insert used for? It is used for subgingival scaling, root planing, and calculus removal across multiple tooth surfaces in periodontal therapy.

What does the NANOPAL Coating do? The NANOPAL Coating is intended to improve surface hardness, reduce friction, and help maintain instrument sharpness through repeated sterilization cycles.

What does the M5 designation mean? M5 is Zepf's deep-scaling design: the first shank is about 3 mm longer, thinner and more flexible, with a shortened working end, built for tight, deep pockets beyond 5 mm. The insert threads into compatible Helmut Zepf interchangeable-insert handles.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).

Nanopal® coating: the black crystalline nano-coating raises surface hardness to 4,500 Vickers — the highly tempered cutting edge stays aggressive and sharp far longer and does not need resharpening after each curettage, while the scratch-resistant black surface is easy to clean and prevents light reflections. Manufacturer literature (PDF).

Specifications: Zepf No. 24.751.106LM5OX

This Langer 6L insert carries a universal curette blade for subgingival scaling and root planing, so one working end covers mesial and distal surfaces; the M5 shank is longer and thinner for deep, narrow pockets. Its NANOPAL coating is a harder surface for a longer-lasting edge. Swapping just the insert gives a fresh working end without buying a complete instrument.
