Interchangeable Osteotome Set

The interchangeable osteotome set is a modular osteotome system from Helmut Zepf, made in Germany, in which exchangeable working tips lock into universal handles for sinus floor elevation, ridge expansion, bone condensation and implant site preparation. This collection holds the complete set No. 47.961.00 (two handles, 12 inserts and a ZEPFcare wash basket) and the individual angulated inserts that fit it: convex (No. 47.961.20–.43), concave (No. 47.962.20–.50) and spreader (No. 47.963.50, 47.963.60) tips in graduated diameters from Ø 2.0 mm to Ø 6.0 mm.

Premium Features of the Interchangeable Osteotome Set

12 High-Quality Inserts — Comprehensive selection of straight and specialized tips in graduated diameters, including convex and concave designs for broad clinical applications.
Two Universal Handles — Ergonomic handles (Ref. 17.700.00) for optimal grip and power transmission.
ZEPFcare Wash Basket — Includes sterilization tray (Ref. 85.184.26) for organized cleaning and autoclaving.
Modular System — Easy insert exchange with safety keys for quick adaptation during procedures.
German Surgical Excellence — Premium stainless steel, fully autoclavable, corrosion-resistant, and engineered for long-term sharpness and durability.

Perfect for crestal sinus floor elevation, bone harvesting, ridge splitting, and achieving superior primary implant stability across various bone densities and anatomical challenges.

Why Choose the Zepf Interchangeable Osteotome Set?

Maximum Versatility — Switch inserts in seconds to match any surgical need without multiple complete kits.
Cost-Effective & Space-Saving — One modular set replaces several fixed instruments.
Enhanced Workflow — Excellent tactile feedback, reduced hand fatigue, and streamlined sterilization.
Trusted German Craftsmanship — Manufactured by Helmut Zepf since 1921 — the benchmark for precision dental instruments worldwide.

Whether expanding your bone management options or equipping a new implant suite, this interchangeable osteotome set delivers unmatched adaptability and reliable performance.

Shop the full Interchangeable Osteotome Set and individual replacement inserts at DeutscheDT.com, with fast shipping from our US warehouse and expert support on authentic Helmut Zepf instruments.

Which Interchangeable Osteotome Do You Need?

Start with the complete set (two handles, 12 inserts, wash basket); the inserts are listed individually as replacements or to extend the set. Convex and concave tips run in matched diameter steps from Ø 2.0 to 4.3 mm, and the spreaders in Ø 5.0 and 6.0 mm.

Zepf No.	Pattern or size	Type

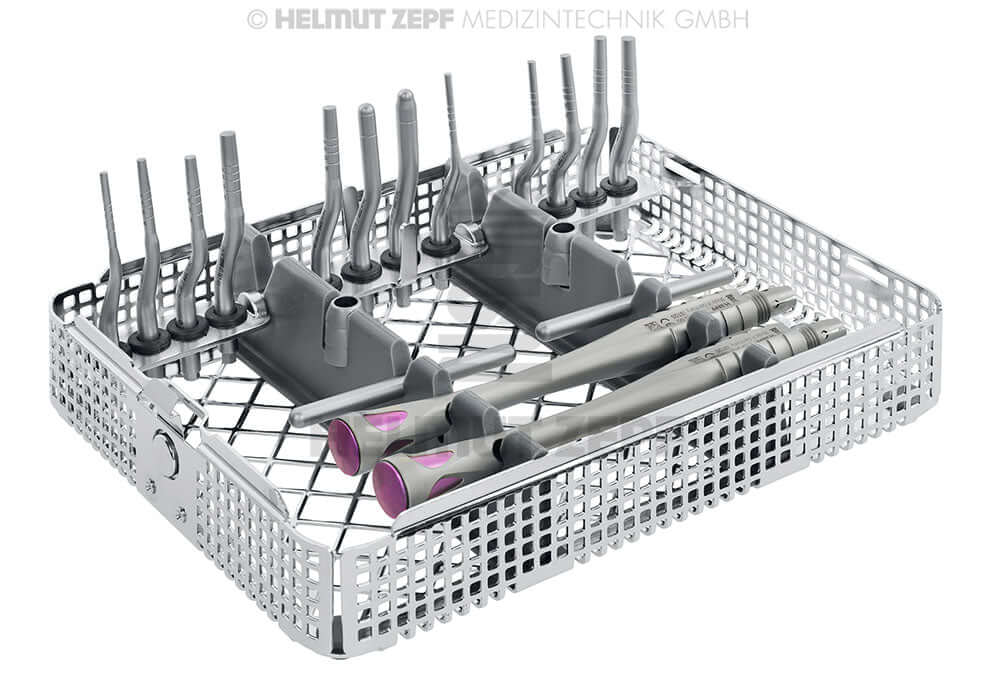

47.961.00	Osteotome Set, with interchangeable inserts, including two handles and 12 inserts with ZEPFcare washbasket	Complete modular set
47.961.20	Insert – Convex, Angulated, Ø 2.0	Convex tip
47.961.28	Insert – Convex, Angulated, Ø 2.3 - 2.8 mm	Convex tip
47.961.33	Insert – Convex, Angulated, Ø 2.8 - 3.3 mm	Convex tip
47.961.38	Insert – Convex, Angulated, Ø 3.4 - 3.8 mm	Convex tip
47.961.43	Insert – Convex, Angulated, Ø 3.9 - 4.3 mm	Convex tip
47.962.20	Insert – Concave, Angulated, Ø 2.0	Concave tip
47.962.28	Insert – Concave, Angulated, Ø 2.3 - 2.8 mm	Concave tip
47.962.33	Insert – Concave, Angulated, Ø 2.8 - 3.3 mm	Concave tip
47.962.38	Insert – Concave, Angulated, Ø 3.4 - 3.8 mm	Concave tip
47.962.43	Insert – Concave, Angulated, Ø 3.9 - 4.3 mm	Concave tip
47.962.50	Insert – Concave, Angulated, Ø 3.9 - 4.3 mm	Concave tip
47.963.50	Insert – Spreader, Angulated, Ø 5.0	Spreader tip
47.963.60	Insert – Spreader, Angulated, Ø 6.0	Spreader tip

Clinical Use

The osteotome inserts are tapped or pressed through the osteotomy in increasing diameters to condense soft bone laterally, elevate the sinus floor through a crestal approach and expand a narrow ridge before implant placement, which preserves bone that drilling would remove and improves primary stability. Exchanging tips on the same handle lets the surgeon step through diameters without a second set.

Care and Reconditioning

Clean, disinfect and sterilize these instruments between patients following the manufacturer’s validated reprocessing instructions and the symbols on each product’s packaging — the ZEPFcare wash basket keeps handles and inserts together through the cycle. Our Dental Hand Instrument Reprocessing & Sterilization Guide covers the general workflow for Helmut Zepf instruments.

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

Compare With

Osteotome Inserts · Straight Osteotome Set · PI-Series Osteotome Set · Dental Osteotomes & Sinus Lift Instruments · Sinus Lift Kit & Sinus Lift Instruments Sets · Surgical Instrument Comparison Chart · Surgical Instrument Glossary

FAQ

How do I choose the right item from this collection? Every product page details the exact specification, reference number, and application; for cross-brand references and terminology, see our Surgical Instrument Comparison Chart and Surgical Instrument Glossary — and our experts are a call away at (917) 480-2682 ext 101.

How should these instruments be reprocessed? Follow the manufacturer’s validated reprocessing instructions and the symbols on each product’s packaging; our reprocessing guide covers the general workflow.

Where are these instruments made? The instruments in this collection are manufactured by Helmut Zepf Medizintechnik in Seitingen-Oberflacht, Germany — precision dental and surgical instruments since 1921 — and ship fast from our US warehouse.

Further reading: Osteotome Sinus Lifts: Complete 2026 Buyer’s Guide

Manufacturer literature: VGO OST-Sets flyer (PDF) — more in our Surgical Instrument Library.
