PI-Series Osteotome Set

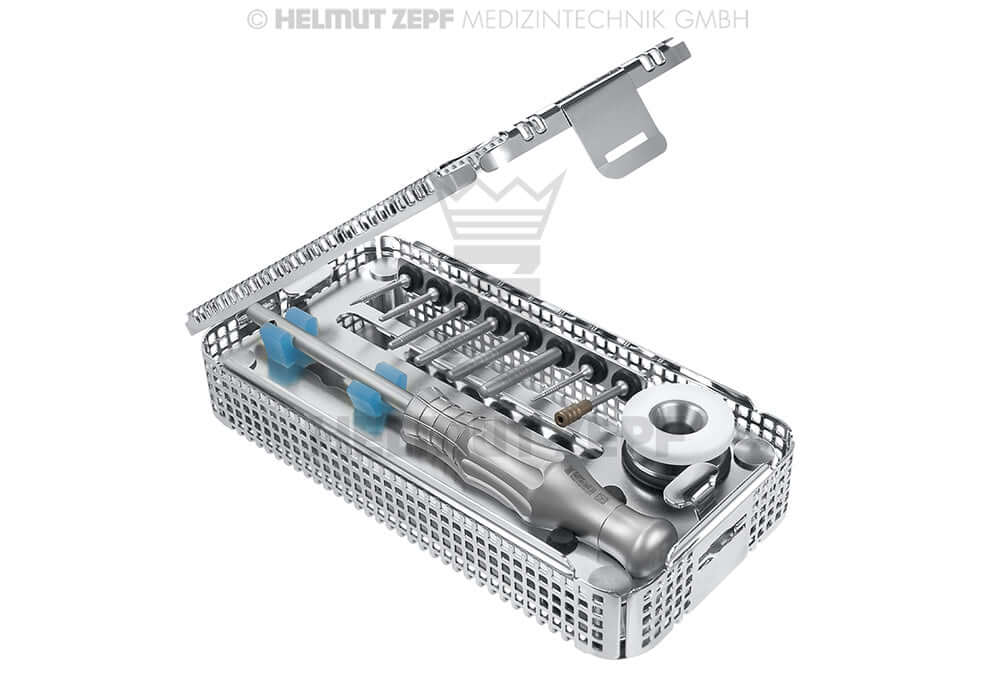

The PI-Series Osteotome Set (Helmut Zepf No. 47.937.00) is a screw-type osteotome system whose inserts couple to a shock-absorbing RA-Hex screwdriver handle (47.502.10): the three screw inserts (47.937.05, .10, .11) are advanced by rotation and the three graduated osteotome inserts (47.937.12–.14) can be tapped with a mallet. Every component on this page is made by Helmut Zepf in Germany and ships from our US warehouse.

Elevate your implant procedures with the PI-Series Osteotome Set — the latest innovation in German-engineered osteotomes from Helmut Zepf GmbH. This complete PI-Series Osteotome Set (Ref. 47.937.00) is designed for modern implantology, offering superior control, shock absorption, and versatility for sinus lifts, ridge expansion, bone condensation, and site preparation.

Which PI-Series Component Do You Need?

Zepf No.	Pattern or size	Use
47.937.00	PI-Series Osteotome Set — complete	Implantology and bone management set: inserts, handle, and tray
47.937.05	Screw insert — Ø shank 2.0 mm, Ø tip 1 mm	Advanced by rotation; first step of the sequence
47.937.10	Screw insert — Ø shank 2.7 mm, Ø tip 2 mm	Advanced by rotation
47.937.11	Screw insert — Ø shank 3.2 mm, Ø tip 2.7 mm	Advanced by rotation
47.937.12	Osteotome insert — Ø shank 3.7 mm, Ø tip 3.2 mm, graduation 7/10/13/15/19/20	Controlled bone expansion and implant site preparation; may be tapped with a mallet
47.937.13	Osteotome insert — Ø shank 4.2 mm, Ø tip 3.7 mm, graduation 7/10/13/15/19/20	As above, next diameter
47.937.14	Osteotome insert — Ø shank 5.0 mm, Ø tip 4.2 mm, graduation 7/10/13/15/19/20	As above, largest diameter

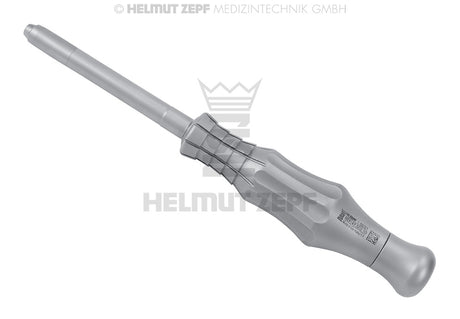

47.502.10	Screwdriver handle with extension — RA-Hex connection with shock absorption	Drives the inserts for both screwing and hammering
47.937.01	Tray for PI-Series / New Osteotome Kit	Fitted tray for the inserts, handle, and pin box; fits the ZEPF 1/3 Washtray System 85.192.50

Clinical Use

The set is used for crestal sinus floor elevation, ridge expansion, bone condensation, and implant site preparation, especially in moderate to dense bone. The site is opened with the Ø 1 mm screw insert and widened step by step — screw inserts by rotation, then the depth-graduated osteotome inserts by mallet — until the planned implant diameter is reached; the beat-absorbing RA-Hex coupling damps vibration and hand fatigue during mallet work.

Care and Reconditioning

Unscrew the inserts from the handle for reprocessing, clean, disinfect, and sterilize them in the fitted tray, and check the RA-Hex couplings and graduation marks before each use. Our Dental Hand Instrument Reprocessing & Sterilization Guide covers the general workflow for Helmut Zepf instruments.

Compare With

Other Helmut Zepf osteotome systems: Straight Osteotome Set, Interchangeable Osteotome Set, Hollow Cylinder Osteotomes, and Osteotome Inserts; the full range is in Dental Osteotomes & Sinus Lift Instruments. For terminology, see the Surgical Instrument Glossary and the Helmut Zepf Surgical Instrument Library.
