What Is an Endo Z Bur? Safe-Ended Access Burs Explained
- What it isa tapered carbide access bur whose sides cut but whose rounded tip does not, so it can rest on the chamber floor
- Whenafter the roof is opened; it removes roof overhangs and flares the walls but cannot penetrate the roof itself
- Busch pick152Z 015 FG, carbide taper with a 1.5 mm non-cutting tip for the high-speed handpiece
- Techniquelet the tip ride the floor lightly and cut on the outward stroke toward each wall; keep it out of the canals
- Limitsit lowers floor-perforation risk but does not replace angulation, magnification and anatomy knowledge
An Endo Z bur is a long, tapered tungsten carbide bur with a rounded, non-cutting tip, used to refine an endodontic access cavity after the pulp chamber roof has been opened. The sides cut; the tip does not. That lets you sweep the walls of the access and remove overhanging dentin while the tip rests on the chamber floor without gouging it.
Endo-Z is a trade name of Dentsply Sirona, and dentists often use it as shorthand for any safe-ended access bur. This guide explains what the design does, when to reach for it, how to use it, and the Busch version of the same type of bur: the 152Z.
What an Endo Z Bur Does
Access preparation has two jobs that pull in opposite directions. You need to remove the entire chamber roof and flare the walls so files reach each canal in a straight line, but you must not touch the chamber floor, where the dark anatomic grooves that lead to the canal orifices are. A fully cutting bur can do the first job but risks the second: one slip ledges the floor, enlarges an orifice, or perforates into the furcation.
A safe-ended bur separates the two. Its cutting flutes run along the side of the taper, so it trims walls and roof overhangs, while the smooth, rounded tip will not cut into the floor when it touches. The taper also leaves the access in a funnel shape, wider at the occlusal surface, which gives files and obturation instruments a straighter path into each canal.
When to Use It in the Access Sequence
- Penetrate the roof. Enter the chamber with a round carbide bur or a diamond. A safe-ended bur cannot start the opening because its tip does not cut.
- Remove the roof and flare the walls. Switch to the safe-ended bur. Rest the tip on the floor and move it around the outline, cutting away the roof overhangs and tapering the walls outward.
- Locate the orifices. With the floor intact and visible, find the canals with an endodontic explorer such as the DG16, and use small round burs at low speed where calcification blocks the way.
The full bur sequence, including the round burs and diamonds used before and after this step, is in our endodontic access burs guide.
Technique Tips
- Let the tip ride the floor. Light contact is the point of the design; pressing down harder adds nothing and dulls the tip.
- Cut on the outward stroke. Pull the bur from the center of the chamber toward each wall, which is how the side flutes remove the overhanging dentin.
- Keep it out of the canals. A safe-ended access bur shapes the chamber, not the canal. Orifice enlargement belongs to orifice openers and files.
- Check the floor under magnification. After flaring, the floor should be smooth and darker than the walls, with the grooves between orifices clearly visible.

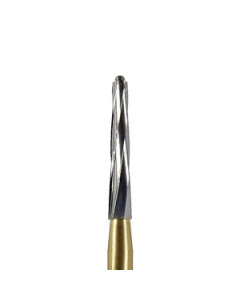

The Busch 152Z: A Safe-Ended Carbide Taper
Busch makes this type of bur as the Busch Carbide Endo Taper (Cone) Round Bur, Non-Cutting Tip (No. 152Z 015, FG). It is a German-made tungsten carbide taper with cutting flutes along the side and a rounded, non-cutting tip, 1.5 mm in diameter, on a standard friction-grip shank for the high-speed handpiece.
| Feature | Busch 152Z 015 |
|---|---|
| Material | Tungsten carbide |
| Shape | Taper (cone) with rounded end |
| Tip | Non-cutting (safe-ended) |
| Diameter | 1.5 mm (ISO size 015) |
| Shank | FG, standard length |
| Use | Removing the chamber roof and flaring access walls |
It sits in the Endodontic Burs by Busch collection alongside the 1SXM round carbides used to open the chamber, including long-neck RA-L 4SXM round burs for reaching deep chambers at low speed. For the same safe-tip idea applied to caries removal, see our non-cutting tip carbide burs guide, and for locating a hidden canal once the walls are flared, see How to Find the MB2 Canal.
FAQs
What is an Endo Z bur used for?
It removes the pulp chamber roof and flares the walls of an endodontic access cavity. Its non-cutting tip can rest on the chamber floor without damaging it.
Can an Endo Z bur open the pulp chamber?
No. The tip does not cut, so it cannot penetrate the roof. Open the chamber with a round bur or diamond first, then switch to the safe-ended bur.
Is an Endo Z bur carbide or diamond?
Carbide. Safe-ended access burs are made from tungsten carbide with cutting flutes on the side of the taper.
Does an Endo Z bur run in a high-speed handpiece?
Yes. Safe-ended access burs, including the Busch 152Z, are made on friction-grip (FG) shanks for the high-speed handpiece.
What is the difference between an Endo Z bur and a round bur for access?
A round bur cuts on every surface, including the tip, so it is used to penetrate the roof and to clear calcifications. A safe-ended bur cuts only on its sides, so it is used to flare the walls once the chamber is open without risking the floor.
Can a safe-ended bur prevent perforation completely?
It lowers the risk on the chamber floor, but it does not replace careful technique. The sides still cut, so angulation, magnification and knowledge of the tooth's anatomy matter as much as the bur.
