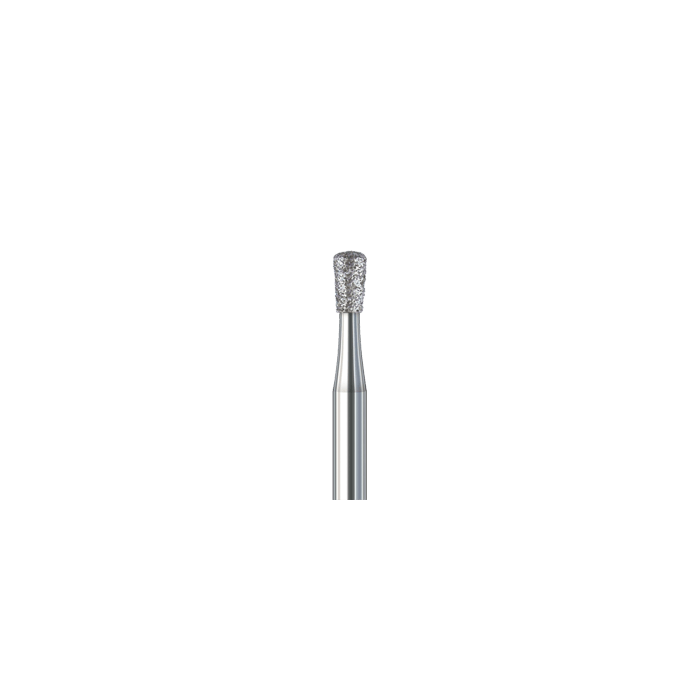

830 Pear Diamond Bur – Busch, Made in Germany

Which Busch 830 Do You Need?

Choose the shank and grit first, then the head size; every active 830 in the collection is linked once below, and the last three digits of each Busch number are the ISO head size.

Busch 830 diamonds – FG, coarse grit

Busch No.	Pattern or size
6830 010	ISO size 010 (1.0 mm) · coarse grit, green ring · FG · pack of 6
6830 012	ISO size 012 (1.2 mm) · coarse grit, green ring · FG · pack of 6
6830 014	ISO size 014 (1.4 mm) · coarse grit, green ring · FG · pack of 6
6830 016	ISO size 016 (1.6 mm) · coarse grit, green ring · FG · pack of 6

Busch 830 diamonds – FG, medium grit

Busch No.	Pattern or size
830 009	ISO size 009 (0.9 mm) · medium grit · FG · pack of 6
830 010	ISO size 010 (1.0 mm) · medium grit · FG · pack of 6
830 012	ISO size 012 (1.2 mm) · medium grit · FG · pack of 6
830 014	ISO size 014 (1.4 mm) · medium grit · FG · pack of 6
830 016	ISO size 016 (1.6 mm) · medium grit · FG · pack of 6

Busch 830 diamonds – FG, fine grit

Busch No.	Pattern or size
8830 012	ISO size 012 (1.2 mm) · fine grit, red ring · FG · pack of 2
8830 014	ISO size 014 (1.4 mm) · fine grit, red ring · FG · pack of 2

Busch MI 830 Micro Prep diamonds – FG

Busch No.	Pattern or size
MI 830 009	ISO size 009 (0.9 mm) · Micro Prep · medium grit · FG · pack of 6
MI 830 012	ISO size 012 (1.2 mm) · Micro Prep · medium grit · FG · pack of 6
MI 8830 009	ISO size 009 (0.9 mm) · Micro Prep · fine grit, red ring · FG · pack of 2
MI 8830 012	ISO size 012 (1.2 mm) · Micro Prep · fine grit, red ring · FG · pack of 2

Busch 830 diamonds – HP (straight handpiece)

Busch No.	Pattern or size
830 070	ISO size 070 (7.0 mm) · medium grit · HP · pack of 1

Choosing a Grit

Busch marks grit with a colored ring and a prefix on the figure number, so you can order the exact 830 you need:

• Coarse (green ring): Busch No. 6830 for rapid reduction
• Medium (standard): Busch No. 830 for everyday preparation
• Fine (red ring): Busch No. 8830 for refining margins and surfaces

Sizes and Shanks

The three-digit size code is the head diameter in tenths of a millimeter (for example, 012 = 1.2 mm).

• HP (2.35 mm shank for the straight handpiece)
• FG (friction grip, 1.6 mm shank for the high-speed handpiece)

See the Busch Bur Size Chart for full dimensions and the Dental Bur Speed Chart for maximum recommended speeds.

Made in Germany by Busch & Co.

Busch & Co. has manufactured rotary instruments in Engelskirchen, Germany since 1905. Each diamond is produced under ISO 13485-certified quality management on a concentric shank for smooth, chatter-free cutting, and is covered by our Busch warranty.

Clinical Use

• Cavity preparation: Class I and Class II preparations with naturally rounded internal line angles.
• Composite preparations: conservative, rounded preparations that suit adhesive restorations.
• Occlusal outline: extending and shaping occlusal outline form in a single pass.

Care and Reconditioning

Busch rotary instruments are reusable: clean, disinfect and sterilize them between patients according to the manufacturer’s instructions, and replace a bur once it dulls or shows damage. Our Dental Bur Reprocessing & Sterilization Guide walks through the workflow for carbide, diamond and steel instruments.

Compare With

Related Busch collections: 831 Pear Diamond Bur, 831R Pear Diamond Bur, Busch MicroPrep Diamond Burs, Pear Shaped Dental Burs, and Busch Dental Burs for Cavity Preparation. For numbering, sizes and speeds, see the US Bur Number Finder, the Color Coding & ISO Guide and the Dental Bur Speed Chart.

Reference resources: Bur Comparison Chart · Size Chart · Bur Glossary · All Busch Diamond Burs

FAQ

What sizes does the Busch 830 come in? We carry the 830 in head sizes 009 (0.9 mm), 010 (1.0 mm), 012 (1.2 mm), 014 (1.4 mm), 016 (1.6 mm) and 070 (7.0 mm).

What do the numbers in front of 830 mean? They indicate grit: 6830 is coarse, 830 with no prefix is medium and 8830 is fine.

Should I order FG or HP? FG fits the high-speed handpiece used for most clinical preparation. HP fits the straight handpiece used for laboratory work and chairside adjustments.

Can Busch diamonds be reused? Yes. Clean, disinfect and sterilize between patients following the Bur Sterilization Guide, and replace the bur when cutting efficiency drops.
