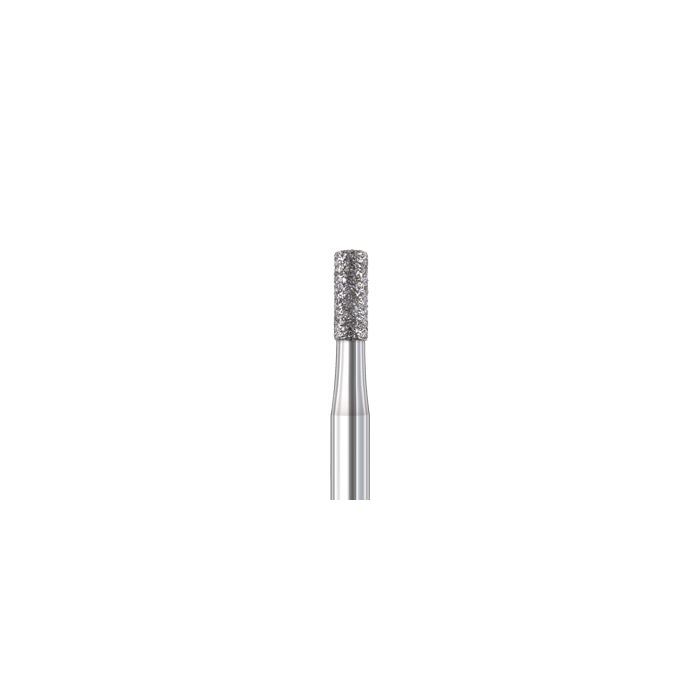

835 Flat-End Cylinder Diamond Bur – Busch, Made in Germany

Which Busch 835 Do You Need?

Choose the shank and grit first, then the head size; every active 835 in the collection is linked once below, and the last three digits of each Busch number are the ISO head size.

Busch 835 diamonds – FG, coarse grit

Busch No.	Pattern or size
6835 009	ISO size 009 (0.9 mm) · coarse grit, green ring · FG · pack of 6
6835 010	ISO size 010 (1.0 mm) · coarse grit, green ring · FG · pack of 6
6835 012	ISO size 012 (1.2 mm) · coarse grit, green ring · FG · pack of 6
6835 014	ISO size 014 (1.4 mm) · coarse grit, green ring · FG · pack of 6

Busch 835 diamonds – FG, medium grit

Busch No.	Pattern or size
835 008	ISO size 008 (0.8 mm) · medium grit · FG · pack of 6
835 009	ISO size 009 (0.9 mm) · medium grit · FG · pack of 6
835 010	ISO size 010 (1.0 mm) · medium grit · FG · pack of 6
835 012	ISO size 012 (1.2 mm) · medium grit · FG · pack of 6
835 014	ISO size 014 (1.4 mm) · medium grit · FG · pack of 6
835 016	ISO size 016 (1.6 mm) · medium grit · FG · pack of 6

Busch 835 diamonds – FG, fine grit

Busch No.	Pattern or size
8835 010	ISO size 010 (1.0 mm) · fine grit, red ring · FG · pack of 2
8835 014	ISO size 014 (1.4 mm) · fine grit, red ring · FG · pack of 2

Busch 835 diamonds – HP (straight handpiece)

Busch No.	Pattern or size
835 010	ISO size 010 (1.0 mm) · medium grit · HP · pack of 2
835 012	ISO size 012 (1.2 mm) · medium grit · HP · pack of 2
835 014	ISO size 014 (1.4 mm) · medium grit · HP · pack of 2
835 016	ISO size 016 (1.6 mm) · medium grit · HP · pack of 2
835 018	ISO size 018 (1.8 mm) · medium grit · HP · pack of 2
835 021	ISO size 021 (2.1 mm) · medium grit · HP · pack of 2

Choosing a Grit

Busch marks grit with a colored ring and a prefix on the figure number, so you can order the exact 835 you need:

• Coarse (green ring): Busch No. 6835 for rapid reduction
• Medium (standard): Busch No. 835 for everyday preparation
• Fine (red ring): Busch No. 8835 for refining margins and surfaces

Sizes and Shanks

The three-digit size code is the head diameter in tenths of a millimeter (for example, 012 = 1.2 mm).

• HP (2.35 mm shank for the straight handpiece)
• FG (friction grip, 1.6 mm shank for the high-speed handpiece)

See the Busch Bur Size Chart for full dimensions and the Dental Bur Speed Chart for maximum recommended speeds.

Made in Germany by Busch & Co.

Busch & Co. has manufactured rotary instruments in Engelskirchen, Germany since 1905. Each diamond is produced under ISO 13485-certified quality management on a concentric shank for smooth, chatter-free cutting, and is covered by our Busch warranty.

Clinical Use

• Shoulder margins: creating butt-joint shoulder margins for crowns and onlays.
• Axial reduction: parallel axial walls with a flat floor for retention form.
• Occlusal and inlay preparation: flat floors and walls for inlays, onlays and box forms.

Care and Reconditioning

Busch rotary instruments are reusable: clean, disinfect and sterilize them between patients according to the manufacturer’s instructions, and replace a bur once it dulls or shows damage. Our Dental Bur Reprocessing & Sterilization Guide walks through the workflow for carbide, diamond and steel instruments.

Compare With

Related Busch collections: 836 Flat-End Cylinder Diamond Bur, 837 Flat-End Cylinder Diamond Bur, 835KR Rounded-Edge Cylinder Diamond Bur, 845 Flat-End Taper Diamond Bur, and Crown and Bridge Dental Burs. For numbering, sizes and speeds, see the US Bur Number Finder, the Color Coding & ISO Guide and the Dental Bur Speed Chart.

Reference resources: Bur Comparison Chart · Size Chart · Bur Glossary · All Busch Diamond Burs

FAQ

What sizes does the Busch 835 come in? We carry the 835 in head sizes 008 (0.8 mm), 009 (0.9 mm), 010 (1.0 mm), 012 (1.2 mm), 014 (1.4 mm), 016 (1.6 mm), 018 (1.8 mm) and 021 (2.1 mm).

What do the numbers in front of 835 mean? They indicate grit: 6835 is coarse, 835 with no prefix is medium and 8835 is fine.

Should I order FG or HP? FG fits the high-speed handpiece used for most clinical preparation. HP fits the straight handpiece used for laboratory work and chairside adjustments.

Can Busch diamonds be reused? Yes. Clean, disinfect and sterilize between patients following the Bur Sterilization Guide, and replace the bur when cutting efficiency drops.
