Calipers

Calipers are the measurement instruments of treatment planning — precision-machined jaws for transferring exact dimensions between study model, appliance, surgical site and chart. This collection covers the Helmut Zepf caliper range, made in Germany: the Zürcher orthodontic model caliper from the ZEPF Ortho Master line in surgical stainless steel, the bone caliper for measuring the maxillary bone, and the sliding caliper by Prof. Krekeler for measuring implants.

Since 1921 · Made in GermanyShips from the US
3 instruments
View as

Which Caliper Do You Need?

Choose by where you measure: on the study model (orthodontic caliper) or at the surgical site for bone and implant planning (bone caliper and sliding caliper); every caliper in the collection is linked once below by its Zepf number.

Orthodontic model calipers1 items
Zepf No. Pattern or size Use
31.695.00 Zürcher model caliper, 128 mm Measuring on the model
Bone calipers1 items
Zepf No. Pattern or size Use
31.691.13 Bone caliper, radial scaling on the shanks of the ring handles, 13 cm Measuring the maxillary bone
Sliding calipers for implants1 items
Zepf No. Pattern or size Use
31.693.10 Measuring caliper by Prof. Krekeler, 1.5 mm measuring rods, IN/OUT markings, locating screw Implant diameter and position (comparison measurements only)

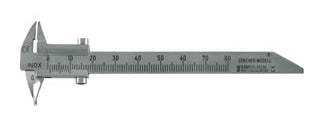

The Zürcher Model Caliper

The Zürcher pattern (128 mm) is the classic orthodontic measuring caliper for work on the model: arch length assessment, tooth width measurement for space analysis, and dimensional checks during appliance fabrication. The fine, precisely ground measuring tips register on model anatomy without marring plaster, and the balanced 128 mm frame reads comfortably in the hand through repeated measurements.

Part of the Ortho Master Line

The full ZEPF orthodontic range — pliers, band instruments, ligature instruments, and accessories — is documented in the Orthodontic Instrument Library, with pattern cross-references in the Comparison Chart and care parameters in the Sterilization & Reprocessing Guide.

Bone and Implant Calipers

The bone caliper 31.691.13 (13 cm) reads maxillary bone dimensions on a radial scale on the shanks of its ring handles. The measuring caliper by Prof.

Krekeler 31.693.10 has measuring rods 1.5 mm thick: opened in the interproximal gap until the rods touch the adjacent roots, the inner marking IN shows the maximum possible implant diameter and the upper marking OUT shows the outside dimension, and a locating screw fixes the reading. Both are intended for comparison measurements only.

More detail is on the Dental Bone Caliper and Krekeler Sliding Caliper pages.

Clinical Use

The Zürcher caliper is used on study models to measure tooth widths and arch dimensions for space analysis and to check dimensions during appliance fabrication. The bone caliper and the Krekeler sliding caliper are used in implant planning and oral surgery to take comparison measurements of the maxillary bone and of the space available for an implant between adjacent roots.

Care and Reconditioning

Clean the Zürcher caliper after use and sterilize it when it has been used near the patient, following the manufacturer instructions. Our Orthodontic Instrument Reprocessing & Sterilization Guide covers the workflow for ZEPF orthodontic instruments.

The bone caliper and the Krekeler sliding caliper are surgical instruments: clean, inspect and sterilize them after every use following your practice protocol; see our Surgical Instrument Reprocessing & Sterilization Guide.

Compare With

Related collections: ZEPF Ortho Master Orthodontic Instruments, Dental Bone Calipers, Krekeler Sliding Caliper, Wire Sizing Pliers, Ortho Accessories, and Dental Implantology Instrument Collection. For terminology, see the Orthodontic Instrument Comparison Chart, the Orthodontic Instrument Glossary and the Surgical Instrument Comparison Chart.

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What is an orthodontic caliper used for?

Measuring tooth widths, arch dimensions, and appliance components on study models — the foundation of space analysis and appliance planning.

Is this instrument autoclavable?

Yes — surgical stainless steel construction withstands standard sterilization cycles, though model-only instruments are often kept as clean lab tools.
