Helmut Zepf · Collection

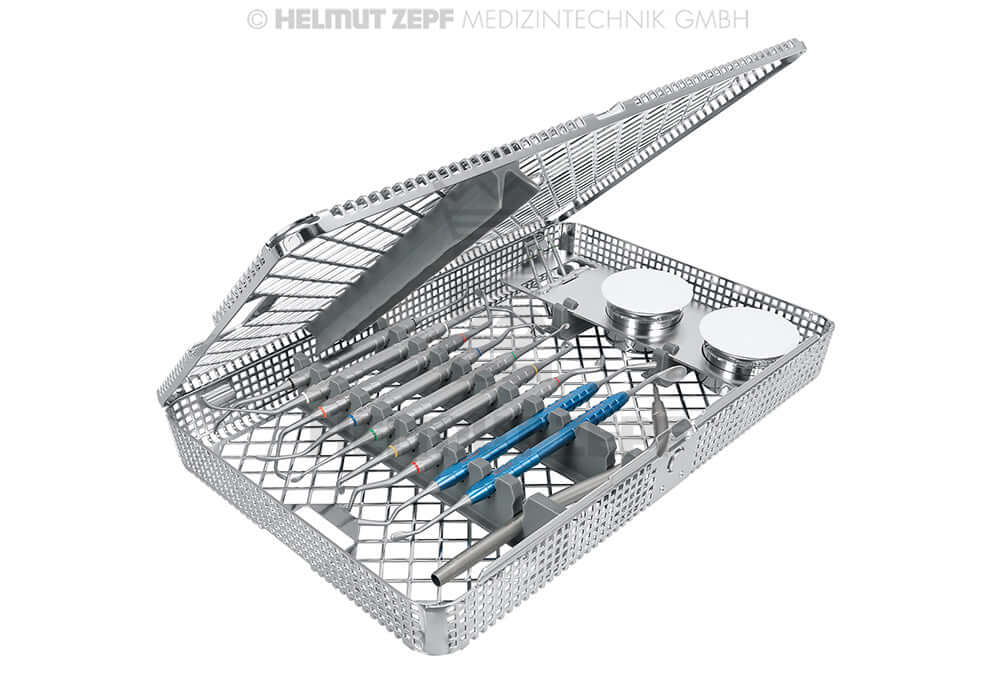

Sinus Lift Instrument Set by Dr. Shakibaie

The sinus lift instrument set by Dr. Behnam Shakibaie (Helmut Zepf No. 41.847.00) is made for microscope-guided external sinus floor elevation: a lateral-window sinus lift performed through a deliberately small access window under a surgical microscope or magnifying loupes. Dr. Shakibaie developed the technique and these microsurgical instruments together, to keep the window small, protect the vestibular bone and reduce the risk of perforating the Schneiderian membrane.

Since 1921 · Made in GermanyShips from the US
Sinus Lift Instrument Set by Dr. Shakibaie
1 instrument
View as

Which Shakibaie Sinus Lift Set Do You Need?

The collection holds one set, linked below by its Helmut Zepf number; the microscopic sinus-lift curettes from the set are also sold individually in the Sinus Lift Curette collection.

Complete set1 items
Zepf No. Pattern or size Use
41.847.00 Sinus Lift Instrument Set by Dr. Behnam Shakibaie for Microscopically Guided Sinus Bottom Elevation Microscopically guided sinus bottom elevation

Designed for Surgical Excellence

A comprehensive sinus lift instrument set is essential for any oral surgeon or implantologist seeking consistent, reproducible outcomes in bone grafting and sinus floor elevation. The instruments attributed to Dr. Shakibaie reflect years of clinical expertise, with ergonomic handles, refined tip geometries, and durable material construction that supports controlled membrane elevation and precise preparation of a small lateral window.

Key Features

  • Microsurgical instruments for lateral-window sinus floor elevation under the microscope or loupes
  • Seven numbered, color-coded, double-ended microscopic sinus-lift curettes, about 60% of the size of conventional sinus instruments, with sharp edges for elevating the membrane through a minimal window
  • Finely roughened instrument surfaces that reduce reflection under the microscope light
  • Round diamond burs (1.4, 1.6 and 1.8 mm) for the access window, plus a micro elevator/plugger, micro spoon curette, micro aspirator and mixing cup
  • Supplied in a ZEPFcare washbasket for reprocessing and storage
  • Designed with clinical input from Dr. Shakibaie

Clinical Use

The set covers each step of a microscope-guided lateral-window sinus lift: opening a small window in the lateral wall of the maxillary sinus with the round diamond burs, elevating the Schneiderian membrane with the numbered microscopic curettes and the micro elevator, placing and condensing bone graft material with the plugger, and keeping the field clear with the micro aspirator. It is designed for the external (lateral) approach and is not a crestal osteotome set.

Care and Reconditioning

Clean, disinfect and sterilize the instruments between patients following the manufacturer instructions, and inspect the working ends for damage before each use. Our Surgical Instrument Reprocessing & Sterilization Guide covers the workflow for Helmut Zepf surgical instruments.

Compare With

Related Helmut Zepf collections: Dr. Behnam Shakibaie Instruments, Sinus Lift Curettes, Sinus Lift Instruments, and Sinus Lift Kits and Instrument Sets. For instrument types and terms, see the Surgical Instrument Comparison Chart and the Surgical Instrument Glossary.

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

Who is this sinus lift instrument set designed for?

Oral surgeons, periodontists and implantologists who perform lateral-window sinus floor elevation under a surgical microscope or loupes.

Is the set compatible with standard sterilization protocols?

Yes. The instruments are reprocessed (cleaned, disinfected and steam sterilized) before first use and between patients according to the Helmut Zepf reprocessing instructions, and the ZEPFcare washbasket holds them through the cycle.

What techniques does this set support?

It is designed for Dr. Shakibaie's microscope-guided external (lateral-window) sinus floor elevation through a minimal access window. It is not intended as a crestal (transalveolar or osteotome) sinus lift set.
