Universal Implant Driver Kits: Ratchets, Screwdrivers and 90% Implant Compatibility
- What it isa handle or ratchet body plus swappable hex, flat-blade and Torx driver heads, not a single tool
- CoverageHelmut Zepf rates the Universal Implant Tool Prosthetic Set as compatible with more than 90% of implant screws
- Ratchet vs screwdriver handleratchet for controlled final seating; screwdriver handle for hand-tightening and tactile checks
- Lab versionRA-Hex screwdrivers run in a contra-angle or ratchet, with an optional 10–40 Ncm torque ratchet
- Careclean, inspect and autoclave driver heads as separate components, not assembled on the handle
A well-stocked universal implant driver kit is the difference between reaching for a system-specific screwdriver you may not have and pulling one tray that covers most of the connections walking through your door. Restorative teams juggling multiple implant brands need drivers, ratchets, and torque handles that interchange rather than a drawer of single-purpose parts.
Quick answer: A universal implant driver kit is a ratchet or screwdriver handle plus interchangeable hex, flat-blade and Torx driver heads, rather than one fixed screwdriver. Stocking these three drive families lets the Universal Implant Tool Prosthetic Set fit more than 90% of implant screws on the market, with a laboratory version using RA-Hex screwdrivers. DeutscheDT.com carries these kits from Helmut Zepf, which has been making instruments in Germany since 1921.
Helmut Zepf's Universal Dental Implant Tools line was built around exactly this problem: a common handle platform paired with interchangeable hex, flat, and Torx wrench screwdrivers so one core kit can service the large majority of implant systems in circulation today.
Below we break down what belongs in a genuine implant driver kit, how the interchangeable heads reach that "covers most systems" compatibility, and which specific instruments from the broader Helmut Zepf Dental Instrument Collection to stock for surgical and prosthetic-phase work alike.
What is in a universal implant driver kit?
A universal implant driver kit is a handle platform plus a set of interchangeable driver heads, not a single tool. The core components are a ratchet or torque wrench body, a dismountable screwdriver handle, and a range of wrench screwdriver inserts machined to specific drive geometries (hex, flat-blade, and Torx). Best for: practices standardizing on one platform, the Universal Implant Tool Prosthetic Set bundles the handle, ratchet, and a full run of driver inserts in one sterilization-ready tray.
Ratchets and Handles: The Torque Side of the Kit
The ratchet or wrench body is what actually delivers controlled torque to the abutment or prosthetic screw; the driver head only determines which screw geometry it can grip. A dismountable ratchet lets the working head be swapped and autoclaved separately from the handle, which extends instrument life and simplifies tray setup.

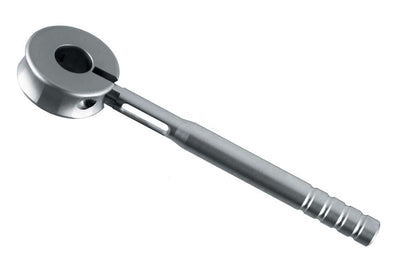

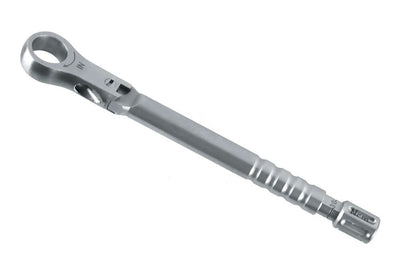

Best for: ratchet action without an integrated torque function, the Wrench Ratchet with Dismountable Handle pairs with any compatible wrench screwdriver insert. Calibrated torque wrenches, and what to do when a prosthetic screw shears off, are covered in our implant screw removal kit guide.
For prosthetic seating where a screwdriver-style grip is preferred over a ratchet, the Universal Screwdriver Handle serves the same interchangeable-head principle in a screwdriver-style handle, and the Cardan-Screwdriver in Flohr Handle adds a swivel joint for angled access plus universal pickup of FD- and FD-Hex-connection bits.
Driver Heads and the 90% Compatibility Question
No single driver head fits every implant system — connection geometry varies by manufacturer and even by product line.
What makes a kit "universal" is stocking the small handful of drive types that, together, span the great majority of connections a mixed-brand practice will encounter: internal hex in a few common diameters, flat-blade for certain abutment and cover screws, and Torx for platforms that specify it.
A kit built around these three families is what lets Helmut Zepf rate the Prosthetic Set as compatible with more than 90% of the implant screws on the market, with the remaining outliers handled by system-specific drivers when needed.
| Driver Type | Key Trait | Best For |
|---|---|---|
| Internal Hex | Most widely used connection family across implant brands | Wrench Screwdriver for Wrench Hex, 1.0 mm |
| Flat-Blade | Simple, low-profile drive used on select abutment and cover screws | Wrench Screwdriver for Wrench Flat 1.6 mm |
| Torx | Higher torque transfer with reduced cam-out on specific platforms | Wrench Screwdriver for Wrench Torx T6 |
Clinical Set vs. Laboratory Set

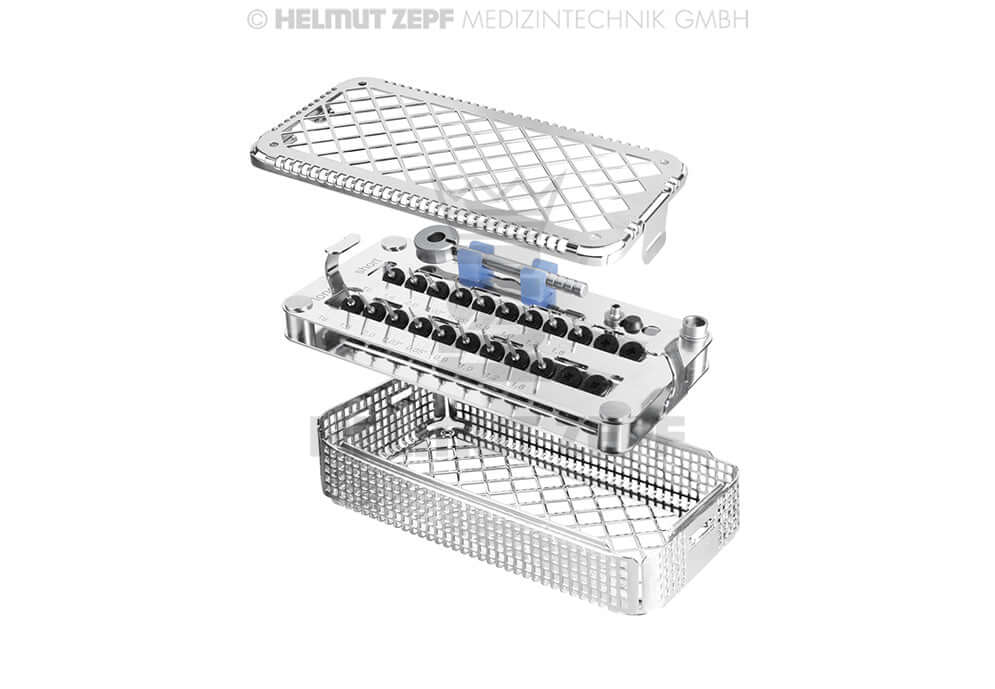

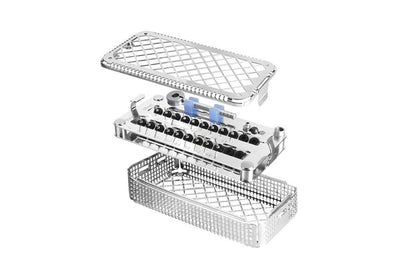

Helmut Zepf offers the universal kit in two configurations. The Prosthetic Set combines long and short hand screwdrivers with a ratchet for chairside work.
The laboratory version uses numbered screwdrivers with an RA-Hex connection, so each driver runs in a contra-angle handpiece or a ratchet, and ships in a stainless steel tray that goes straight into a washing basket for automated reprocessing; a 10–40 Ncm torque ratchet, the universal handle and the Cardan handle are optional additions.
Best for: laboratories and practices that want handpiece-driven screwdrivers with tray-based reprocessing, the Universal Implant Tool Prosthetic Laboratory Set covers roughly 90% of abutment screws on the market.
Building or Expanding Your Kit
Most practices start with a core ratchet-and-handle body, add the two or three most-used hex diameters, then round out flat-blade and Torx inserts as case mix demands. Keeping driver heads sterilized and organized separately from the handle — rather than as a single fixed instrument — is what keeps a dental implant screwdriver kit serviceable across years of use and multiple implant systems.
For the rest of the implant tray — probes, calipers, periosteal elevators, bone instruments and suturing — see our must-have implantology instrument list.
FAQs
What is a universal implant driver kit?
A handle or ratchet body paired with a set of interchangeable driver heads (hex, flat, Torx) sized to fit the connection geometries used across most implant systems, rather than a single fixed screwdriver for one brand.
Does a universal kit really cover 90% of implant systems?
No kit covers every connection on the market, but stocking the common hex, flat, and Torx drive families used across major implant brands covers the large majority of cases a mixed-brand practice sees; outlier systems still require their own manufacturer-specific driver.
What is the difference between a ratchet and a screwdriver handle in these kits?
A ratchet allows repeated, controlled torque application without full hand rotation and is typically used for final seating; a screwdriver-style handle offers direct tactile control and is often preferred for hand-tightening or verification.
Can the same driver heads be used with different handle types?
Within a matched system, yes — wrench screwdriver inserts are designed to interchange between the ratchet body and the standalone screwdriver handle, which is what makes the kit modular rather than a set of fixed single-purpose tools.
What is the difference between the Prosthetic Set and the Prosthetic Laboratory Set?
The Prosthetic Set is a hand-driven kit of long and short screwdrivers plus a ratchet. The Laboratory Set uses RA-Hex screwdrivers that fit a contra-angle handpiece or ratchet, with an optional 10–40 Ncm torque ratchet, in a tray built for automated reprocessing.
How should driver heads be sterilized and stored?
Follow the manufacturer's validated reprocessing instructions; because heads are removable from the handle, they should be cleaned, inspected, and autoclaved as individual components rather than left assembled.
