Modified Vienna Bone Chisel

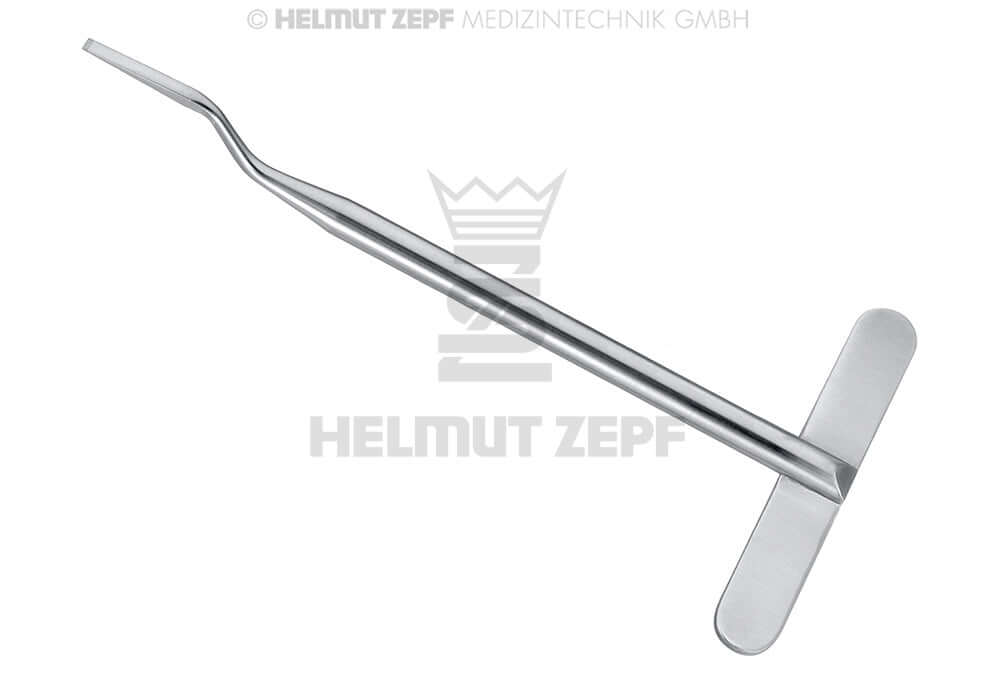

The Modified Vienna bone chisel (Helmut Zepf "Bone Rotary Chisel"; German Drehmeißel, Wiener Modell) is a hand-held extraction instrument: a narrow chisel blade on a flat handle that is placed in the periodontal space, braced against the alveolar bone and turned by hand to luxate the tooth or root. "Rotary" refers to this turning movement.
Read more
It is not struck with a mallet and it is not a handpiece instrument, and Zepf lists it with its root elevators. It comes in straight 2, 3 and 4 mm and bayonet 2, 3 and 4 mm forms.
Helmut Zepf makes all 6 versions in Germany, and every one on this page ships from our US warehouse.
Helmut Zepf GmbH
Regular price $105.99Unit price-
Helmut Zepf GmbH
Regular price $105.99Unit price -
Helmut Zepf GmbH
Regular price $105.99Unit price -
Helmut Zepf GmbH
Regular price $105.99Unit price -
Helmut Zepf GmbH
Regular price $105.99Unit price -
Helmut Zepf GmbH
Regular price $105.99Unit price
Reference pages already linked from this collection, in one place.
Which Modified Vienna Bone Chisel Do You Need?
Choose the straight or bayonet form first, then the 2, 3 or 4 mm blade; every active product in the collection is linked once below by its Zepf number.
Straight3 items
| Zepf No. | Pattern or size |
|---|---|
| 41.540.02WM | Straight, 2 mm, Flat Handle Total Length 130 mm |
| 41.540.03WM | Straight, 3 mm, Flat Handle Total Length 130 mm |
| 41.540.04WM | Straight, 4 mm, Flat Handle Total Length 130 mm |
Bayonet3 items
| Zepf No. | Pattern or size |
|---|---|
| 41.541.02WM | Bayonet 2 mm, #2B Flat Handle Total Length 130 mm |
| 41.541.03WM | Bayonet 3 mm, #3B Flat Handle Total Length 130 mm |
| 41.541.04WM | Bayonet 4 mm, #4B Flat Handle Total Length 140 mm |
Warranty and Our Guarantee
Every Zepf instrument on this page carries a one-year Helmut Zepf Warranty against defects in materials and workmanship (Zepf extraction forceps carry a lifetime warranty). And because an instrument can only be judged in the hand, you have 60 days to return it for any reason — even after you have used it. Try it on real cases; if it is not the instrument for you, send it back.
Made in Germany by Helmut Zepf
Helmut Zepf has manufactured dental and surgical instruments in Germany for over 100 years. Every instrument on this page is forged, ground and finished by Zepf and carries its part number for traceability.
Clinical Use
- Straight: classically used for the last tooth in an intact arch, such as a third molar: enter the periodontal space from the mesial side, brace the blade on the alveolar bone and turn it to push the tooth distally.
- Bayonet: the offset shank improves access and line of sight in the posterior region.
- Sizes: choose the 2, 3 or 4 mm blade to suit the width of the periodontal space and the root. Always keep the instrument supported on bone, never on the neighbouring tooth.
Care and Reconditioning
Zepf surgical instruments are resharpened, re-aligned and reconditioned by our sharpening and reconditioning service when the working end dulls. Clean, disinfect and sterilize between patients; our Surgical Instrument Reprocessing & Sterilization Guide covers the general workflow for Helmut Zepf surgical instruments.
Compare With
Related Helmut Zepf collections: Bein Root Elevator, Dental Elevators, Dental Extraction Forceps & Tools, Bone Chisel, Periodontal Chisels, and the Oral Surgery Instrument Collection. For terminology and comparisons, see the Surgical Instrument Comparison Chart and the Surgical Instrument Glossary.
FAQ
What is the Modified Vienna bone chisel used for?
Luxating teeth and roots during extraction. The chisel blade goes into the periodontal space and the flat handle is turned by hand, using the alveolar bone for support. It comes in straight 2, 3 and 4 mm and bayonet 2, 3 and 4 mm forms.
Is it a mallet chisel or a handpiece (rotary) instrument?
Neither. The name "rotary chisel" (German Drehmeißel) describes the turning hand movement. For bone chisels struck with a mallet, see our Bone Chisel collection.
Is it reusable?
Yes. Clean, disinfect and sterilize between patients like any surgical hand instrument, and return it for reconditioning when the blade dulls.
Is there a warranty?
One year under the Helmut Zepf Warranty, and 60 days to return it for any reason, even after use.
