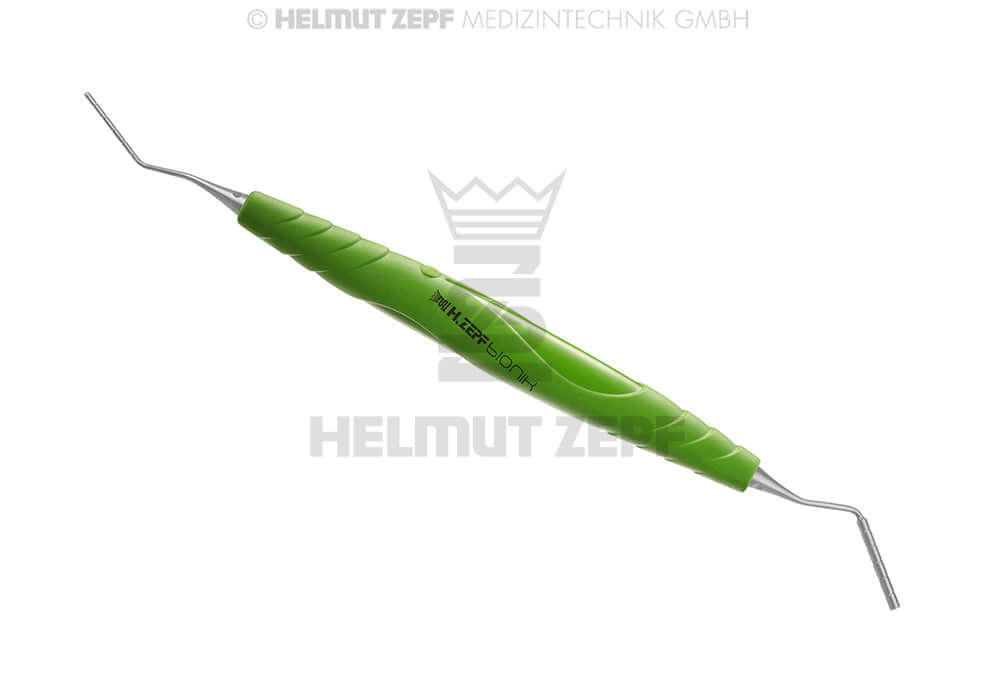

Bone Filler / Condenser with Depth Measurement, Ø 1.0 and 2.0 mm, Titanium Inserts, ZEPF-bIONIK QuickFix Handle, Yellow-Green | Helmut Zepf No. 24.532.19
The Bone Filler and condenser combination instrument from Helmut Zepf is engineered for precise bone grafting and condensing procedures in implantology and oral surgery. Featuring interchangeable titanium tips with serrated working ends in diameters of 1.0 mm and 2.0 mm, this instrument offers versatility across a range of surgical site dimensions.
Part of the Helmut Zepf QuickFix replaceable-tip system — screw-in tips for bIONIK, Z-SHAPE and Lotus handles. Swap a worn tip in seconds and keep the handle.
Backed by our Helmut Zepf Warranty — this instrument is warranted against defects in materials and workmanship for 1 year. Full terms and how to make a claim are on the Warranty page.
Key Features
- Dual-diameter tips: 1.0 mm and 2.0 mm interchangeable titanium inserts (M4 X 0.5 thread)

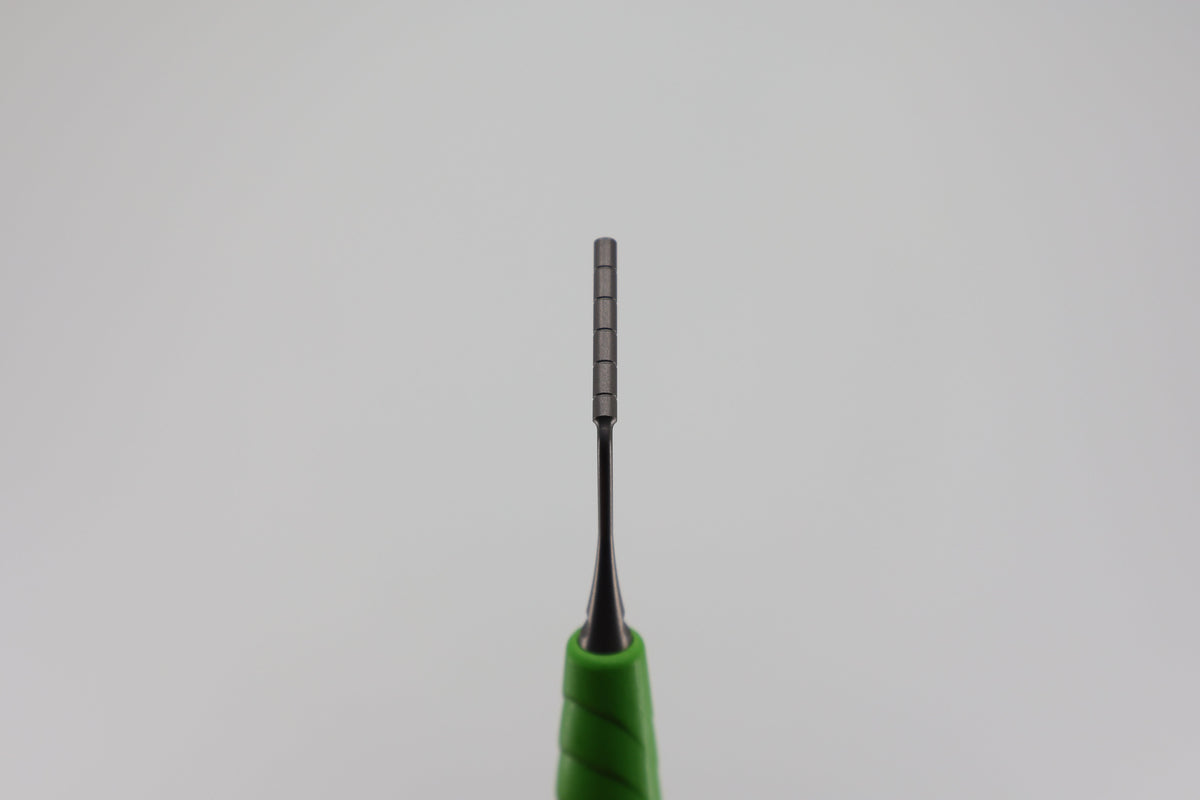

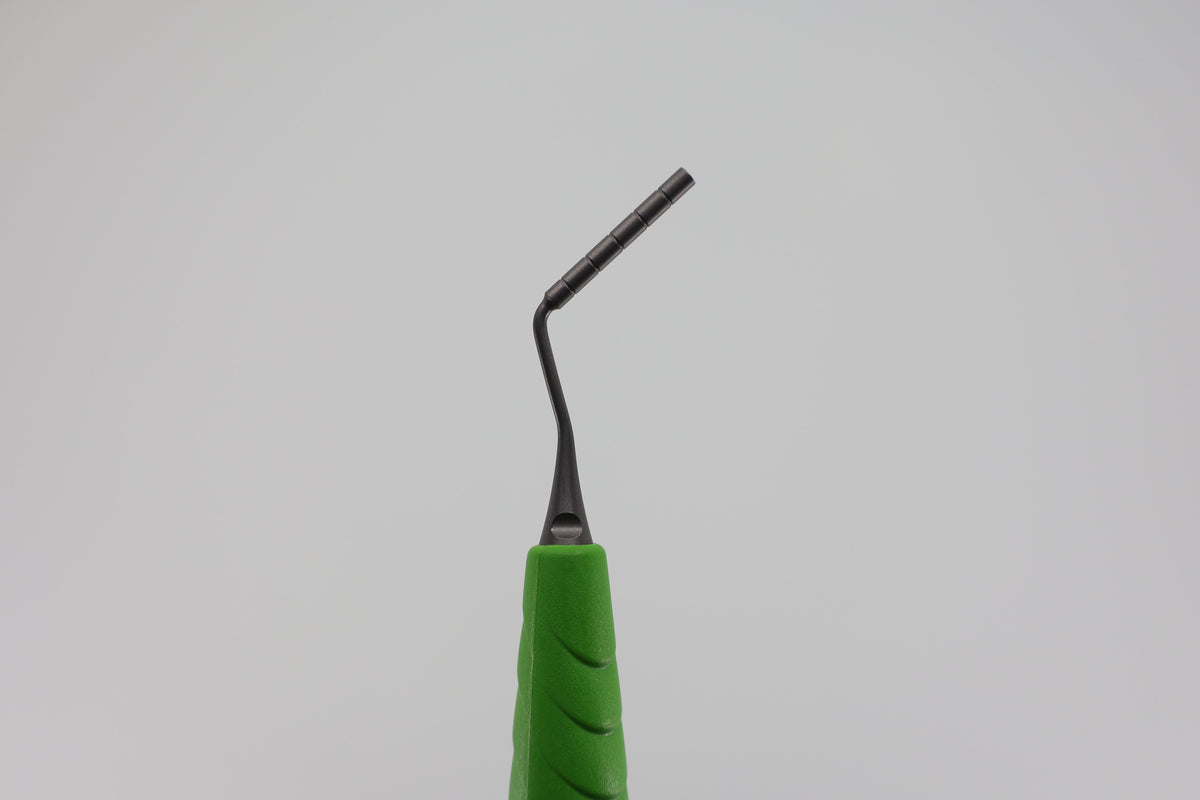

- Depth measurement graduation: 3 / 6 / 9 / 12 / 15 mm markings for reliable intraoperative depth control
- Serrated working surface: enhances grip and compaction of bone material
- ZEPF-bIONIK Handle: ergonomic Yellow-Green handle designed for optimal balance and tactile feedback
- Material: Titanium inserts for biocompatibility and lightweight performance
- Manufacturer reference: Helmut Zepf No. 24.532.19
Clinical Benefits
As a combination Bone Filler and condenser, this instrument streamlines the surgical workflow by consolidating two critical functions into a single, ergonomic tool. The graduated depth markings reduce the need for separate measuring devices, improving procedural accuracy and efficiency. The ZEPF-bIONIK handle design minimizes hand fatigue during extended procedures.
Design & Build Quality
Manufactured in Germany by Helmut Zepf GmbH, this Bone Filler instrument reflects rigorous quality standards associated with German dental engineering. The titanium M4 X 0.5 inserts are interchangeable, allowing the clinician to adapt the instrument to the specific requirements of each case without compromising sterility protocols.
Award-Winning Handle Design
The bIONIK handle won the Red Dot Design Award in 2010, the year of its launch. The jury of the Design Zentrum Nordrhein Westfalen in Essen, Germany, honored the bIONIK handle’s ergonomic design, high-tech material, and exceptional lightness and durability.
Design Notes
Titanium for implant probing: regular pocket-depth measurement around implants is essential for catching peri-implantitis early, and the titanium probe lets you measure along the implant without damaging its sensitive surface. Manufacturer literature (PDF).
Specifications: Helmut Zepf No. 24.532.19
| Zepf No. | 24.532.19 |
| Instrument type | Bone filler / condenser with depth measurement |
| Working end | Ø 1.0 and 2.0 mm, graduation 3 / 6 / 9 / 12 / 15 mm |
| Material or coating | Titanium M4 x 0.5 inserts |
| Handle | bIONIK QuickFix, Yellow-Green |
| Part of set | IDR Kit (41.550.00) · Dental Bone Grafting Set (47.848.00) |
| Pack / sold as | Single instrument |
This combination bone filler / condenser (Ø 1.0 / 2.0 mm) packs particulate graft into an osteotomy or defect while its 3 / 6 / 9 / 12 / 15 mm graduation reads the depth of fill. The titanium M4 x 0.5 inserts are implant-safe and interchangeable. This version has the Yellow-Green bIONIK QuickFix handle. The 1.0 / 2.0 mm ends are for narrow sites such as a single osteotomy.
Read the guides: Bone Grafting Instruments · Augmentation Kits & Instruments · Implantology & Bone Regeneration · All implantology instruments · All Helmut Zepf instruments
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
What thread specification do the titanium inserts use?
The interchangeable titanium inserts use an M4 X 0.5 thread connection.
What graduation markings are included on this Bone Filler instrument?
Depth graduation markings are provided at 3, 6, 9, 12, and 15 mm intervals.
What tip diameters are available?
Two tip diameters are included: 1.0 mm and 2.0 mm, both with serrated working surfaces.
