Basic Surgical Instrument Set by Prof. Dr. Margrit-Ann Geibel | Helmut Zepf

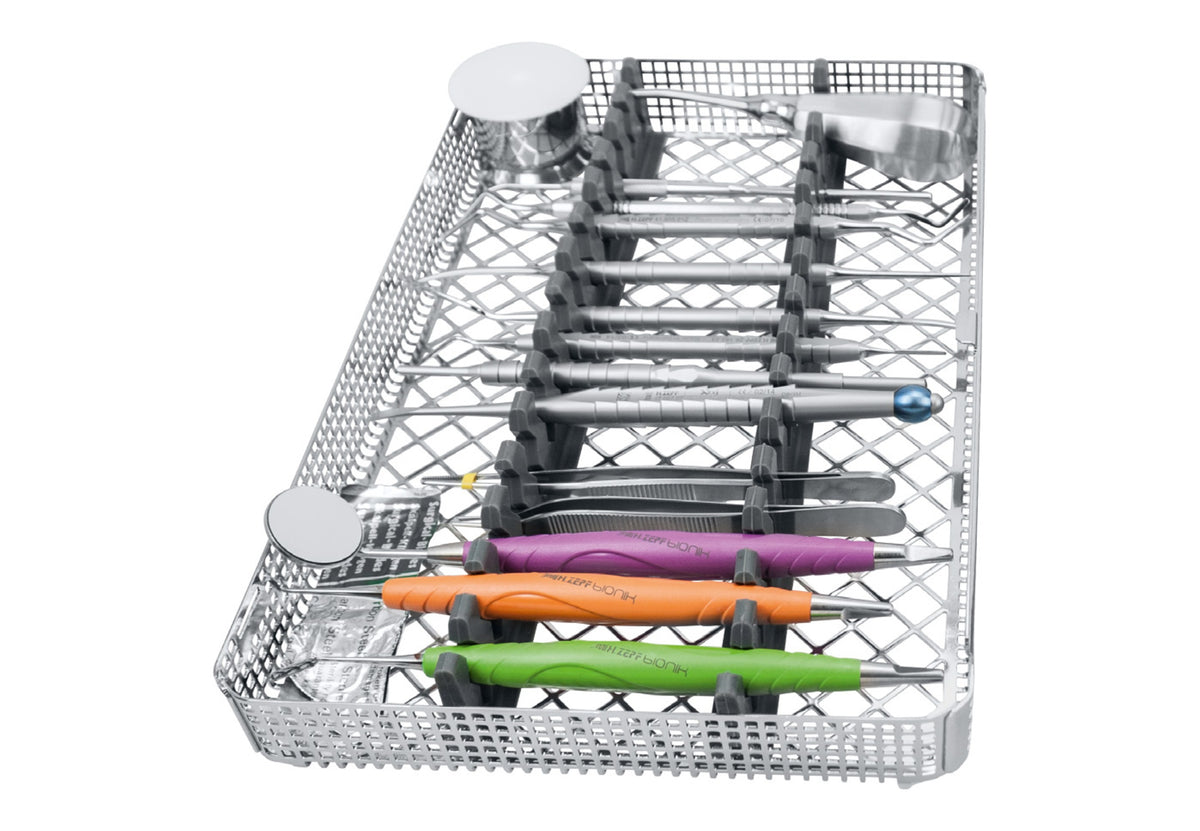

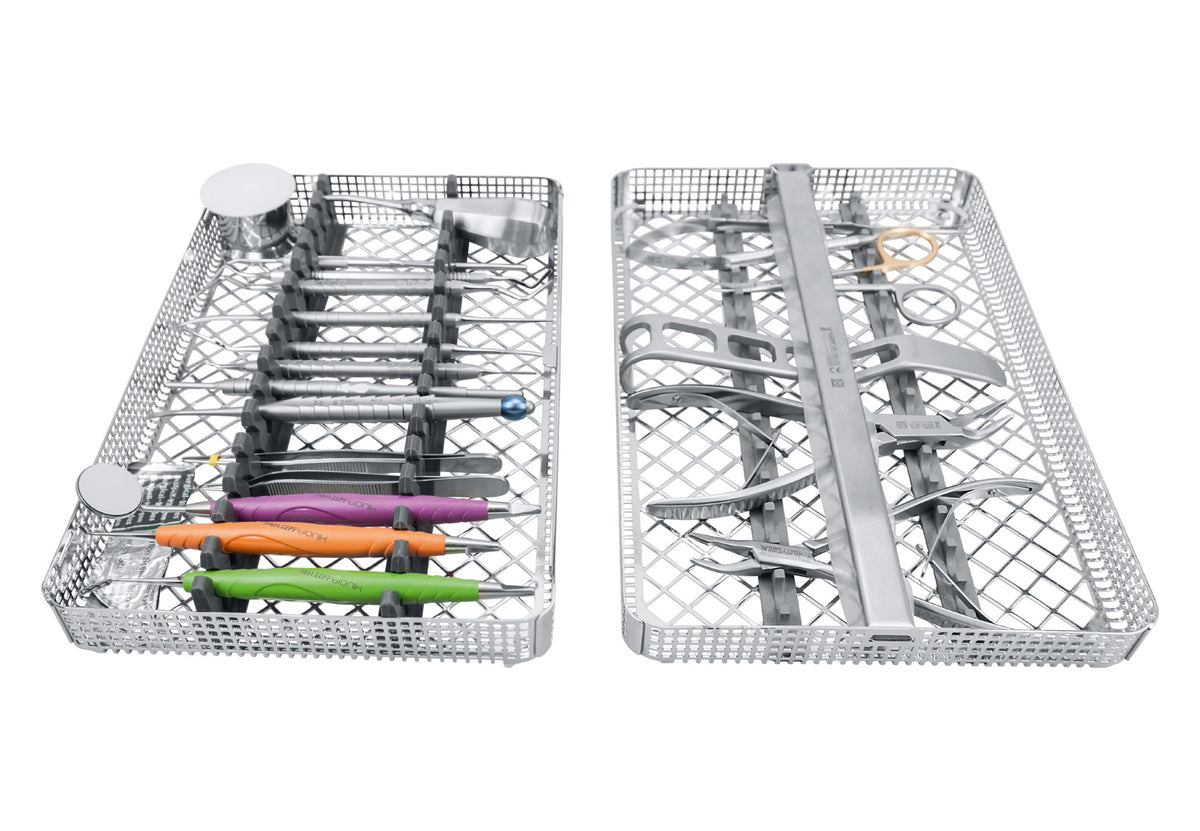

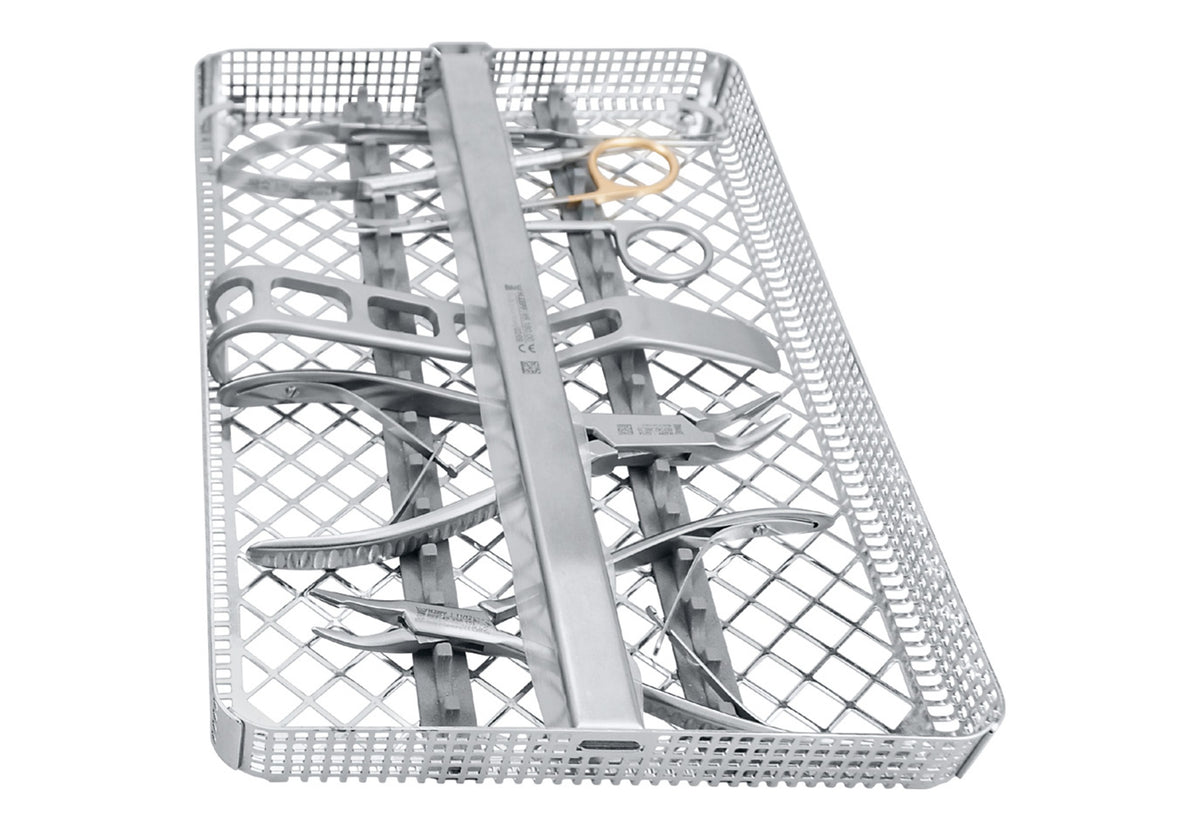

The Basic Surgical Instrument Set by Prof. Dr. Margrit-Ann Geibel is a two-tray Helmut Zepf configuration for fundamental dental surgery. According to Helmut Zepf, it includes the instruments needed for extraction techniques, suturing and standard emergency cases: diagnostic mirrors and probe on ZEPF-bIONIK handles alongside elevators, soft-tissue instruments, tissue forceps, a micro needle holder, bone rongeurs, SuperCut scissors and the ZEPF Drop-Control blade holder, organized in a ZEPFcare washtray and washbasket.
What Is Included
The set contains the following 28 items, each listed with its Helmut Zepf number. Linked numbers open the individual instrument page.
| Product No. | Product |
|---|---|
| 17.007.07 | X-Luxa-Tool-7, curved, working tip 3.0 mm |
| 17.014.01 | Elevator acc. to Gärtner, #1, 2.5 mm x 12.5 cm |
| 26.182.23 | Periotome P3 / P2 combination, acc. to Dr. Ackermann |
| 46.035.00 | Papilla Elevator, ZEPF-Line |
| 41.862.21 | Glickmann Combination Instrument, Knife / Raspatory, #24G |
| 41.878.11 | Pritchard Raspatory PPR3, Retractor straight |
| 46.007.18 | ZEPF Drop-Control Blade Holder, one-handed release function |
| 46.051.11SC | Gingivectomy Scissors, curved, 11.5 cm, SuperCut |
| 37.437.17 | Cawood-Minnesota Cheek Retractor, 16.5 cm |
| 22.230.13 | Dressing and Dissecting Forceps, 13 cm, slim model |
| 22.486.12 | Adson Surgical Forceps, 12 cm |
| 41.010.17TC | Micro Needle Holder, straight, serrated, TC, 17.5 cm |
| 42.320.15 | Friedmann Bone Rongeur Forceps, mini, 15 cm |
| 42.360.15 | Blumenthal Bone Rongeur Forceps, 45 degrees curved, 15.5 cm |
| 41.855.01Z | Lucas Curette, #1, double-ended, 2.5 mm |
| 47.957.10 | BONE-SCRAPER II, 6 mm, straight, with one blade |
| 85.251.03 | Mixing Cup, stainless, with POM lid, 4 cm |
| 24.067.24 | Mouth Mirror, plane, titanium front surface, 24 mm |
| 24.074.16 | Micro Mirror, glass, thread M2.5, 7 x 2 mm |
| 24.074.17 | Micro Mirror, glass, thread M2.5, 9 x 3 mm |
| 24.102.09 | Explorer / Probe #9, round handle, stainless |
| 26.194.02 | ZEPF-bIONIK Universal Handle, PEEK, M2.5, signal orange |
| 26.194.04 | ZEPF-bIONIK Universal Handle, PEEK, M2.5, signal purple |
| 26.194.08 | ZEPF-bIONIK Universal Handle, PEEK, M2.5, yellow green |
| 26.260.00 | Heidemann Spatula #0 for composite fillings |
| 85.180.00 | Washtray 1/1 with 2 instrument supports |
| 85.181.03 | Instrument Support, 260 mm, silicone |
| 85.195.00 | Washbasket 1/1 with lid, stackable, 275 x 178 x 37 mm |
Clinical Applications
The set is the instrument set for Prof. Geibel's basic surgical course, a practice-oriented introductory and refresher course for dentists. The course covers incision and flap techniques, suturing, sectioning, osteotomy and extraction of teeth, apical resection, chart documentation, hygiene, and the integration of surgical procedures into a practice quality management system. The same instruments cover routine extractions, flap surgery, suturing and minor bone work in everyday practice.
About Prof. Dr. Margrit-Ann Geibel
Prof. Dr. Margrit-Ann Geibel, MME, is a specialist in oral surgery and senior physician at the Clinic for Oral and Maxillofacial Surgery, Department of Dentistry, Ulm University, Germany, where she heads dento-maxillo-facial radiology. She has taught national and international surgery courses since 2010. More about her work is in the Dr. Margrit-Ann Geibel Instrument Collection.
1-Year Warranty
This Helmut Zepf instrument set is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument set to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
Who designed this set? The set is configured according to Prof. Dr. Margrit-Ann Geibel, a specialist in oral surgery and senior physician at the Clinic for Oral and Maxillofacial Surgery, Department of Dentistry, Ulm University, Germany.
What procedures is the set intended for? According to Helmut Zepf, it contains the instruments needed for extraction techniques, suturing and standard emergency cases. It is the instrument set for Prof. Geibel's basic surgical course.
How many items are included? 28 items: 24 instruments and instrument parts (including three ZEPF-bIONIK universal handles and two glass micro mirrors), a mixing cup, and a 1/1 washtray with silicone instrument support and a stackable 1/1 washbasket with lid.
Is a washbasket included? Yes. The set ships with the 85.180.00 Washtray 1/1, the 85.181.03 silicone instrument support and the 85.195.00 Washbasket 1/1 with lid (275 x 178 x 37 mm).
Manufacturer literature: GEIBEL Basic Surgical Instrument Set flyer (PDF) — more in our Surgical Instrument Library.
Backed by our Helmut Zepf Warranty — lifetime on extraction and explantation forceps, one year on every other Zepf instrument. Full terms and how to make a claim are on the Warranty page.
