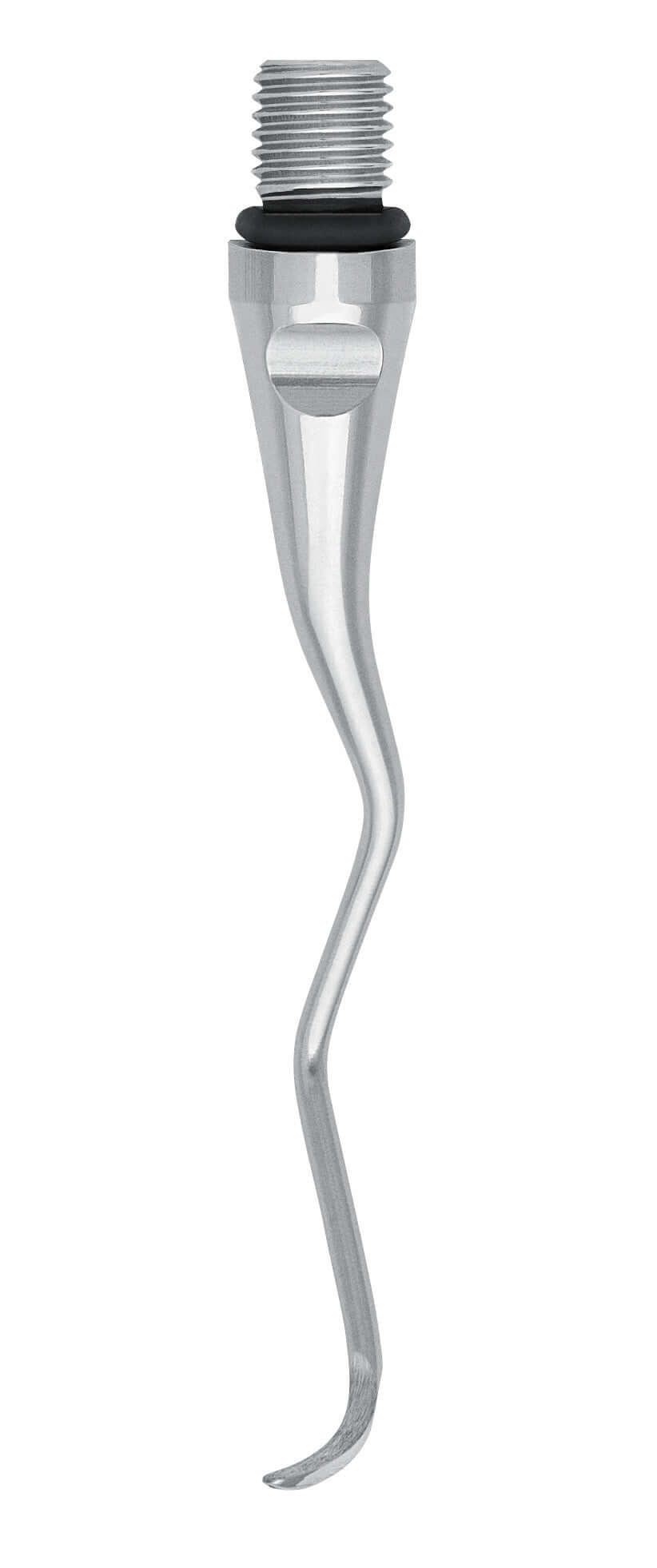

Curette Insert, Gracey 14 M5, ZEPF NANOPAL Coating

The Gracey Curette Insert from Helmut Zepf GmbH is a precision periodontal instrument designed to deliver effective subgingival scaling and root planing with exceptional control and efficiency. Engineered as an interchangeable insert for compatible Helmut Zepf handles, this insert is purpose-built for professional dental hygienists and periodontists who demand accuracy at every appointment.

Product Overview

This Gracey Curette Insert features the Gracey 14 M5 design, a configuration specifically adapted for accessing posterior teeth and furcation areas. The ZEPF NANOPAL Coating enhances the instrument's surface hardness and corrosion resistance, helping to extend working life while maintaining a consistently sharp, smooth edge that glides comfortably along root surfaces.

Key Features

• Gracey 14 M5 blade geometry for targeted posterior and furcation access
• ZEPF NANOPAL Coating for improved durability and corrosion resistance
• Optimized tip design for precise subgingival debridement
• Interchangeable insert that threads into compatible Helmut Zepf handles
• Crafted to meet the exacting standards of Helmut Zepf GmbH

Clinical Benefits

Using a high-quality Gracey Curette Insert in daily periodontal practice reduces operator fatigue, improves tactile feedback, and ensures thorough calculus removal. The NANOPAL surface treatment by Zepf contributes to a smoother working edge retention over repeated sterilization cycles, making this insert a reliable choice for busy clinical environments.

1-Year Warranty

This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What is the Gracey 14 M5 insert used for? It is primarily used for scaling and root planing on posterior teeth and furcation areas, where its area-specific curvature provides optimal angulation.

Is this insert autoclavable? It is designed for use in clinical dental settings and is intended to withstand standard sterilization protocols, though practitioners should follow the manufacturer's guidelines.

What does the ZEPF NANOPAL Coating provide? The NANOPAL Coating enhances surface hardness, improves corrosion resistance, and helps maintain a sharper working edge through repeated use cycles.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).

Nanopal® coating: the black crystalline nano-coating raises surface hardness to 4,500 Vickers — the highly tempered cutting edge stays aggressive and sharp far longer and does not need resharpening after each curettage, while the scratch-resistant black surface is easy to clean and prevents light reflections. Manufacturer literature (PDF).

Specifications: Zepf No. 24.751.114GM5OX

As a Gracey 14 curette end, this insert is ground for the distal surfaces of posterior teeth and is used subgingivally for scaling and root planing, and its M5 shank (longer, thinner, with a shortened working end) reaches deep, narrow pockets. Its NANOPAL coating is a harder surface for a longer-lasting edge. Swapping just the insert gives a fresh working end without buying a complete instrument.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection
