Helmut Zepf GmbH  |  SKU: 24.751.113GM5

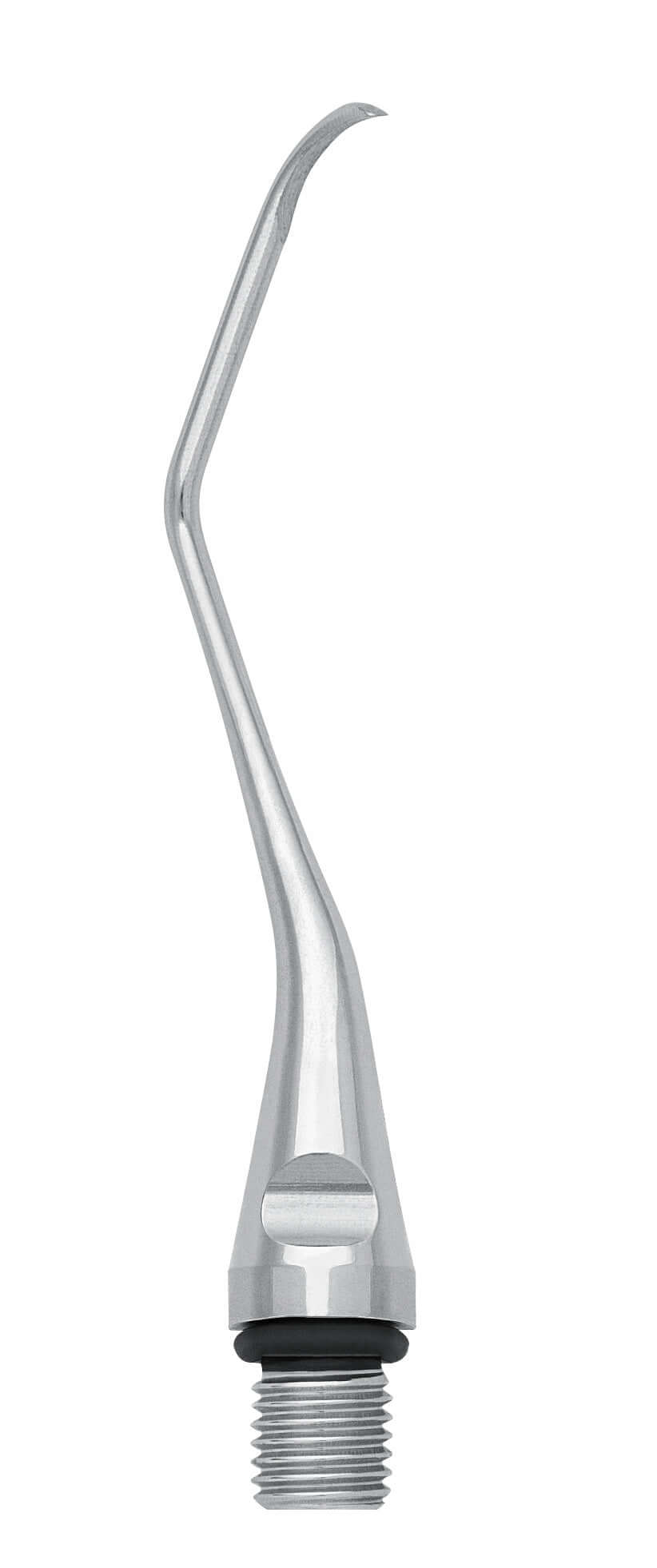

Curette Insert, Gracey 13 M5

Regular price $19.99
Shipping calculated at checkout.

The Gracey Curette Insert is a precision periodontal instrument designed for area-specific subgingival scaling and root planing, offering clinicians exceptional control and access to challenging tooth surfaces. This particular configuration — the Gracey 13 M5 — is engineered for use on the distal surfaces of posterior teeth, making it an indispensable tool in professional periodontal therapy.

PatternGracey 13 M5 (Gracey 13/14)
Warranty6 months
Free pack of Busch burs with $500+ of Helmut ZepfChoose your bur pack in your cart · one per order
Free hygiene instrument with $1,000+ of Helmut ZepfChoose a scaler or curette in your cart · one per order
Free shipping on orders $500+$6.95 flat rate otherwise · US-stocked items ship in 1–2 business days
Jump to
$19.99
About this instrument

Key Features

  • Area-specific design targets distinct tooth surfaces with optimal angulation
  • The Gracey Curette Insert format threads into compatible Helmut Zepf handles for hand instrumentation
  • Engineered for efficient removal of calculus deposits and biofilm in deep periodontal pockets
  • Manufactured by Helmut Zepf GmbH, a recognized name in dental instrumentation
  • Designed for repeated sterilization cycles to support infection control protocols

Clinical Application

The Gracey Curette Insert 13 M5 is indicated for professional use by dental hygienists and periodontists. Its offset blade geometry ensures that the working edge maintains proper angulation against the root surface during scaling, reducing trauma to surrounding soft tissue. The M5 designation refers to Zepf's deep-scaling design: a longer, thinner and more flexible first shank with a shortened working end for deep, narrow pockets (see Design Notes below).

Why Choose a Gracey Curette Insert?

Gracey curettes are the gold standard in area-specific periodontal instrumentation. Their lower-shanked, offset-blade design allows clinicians to adapt precisely to root anatomy, enhancing thoroughness during nonsurgical periodontal therapy. Choosing the correct insert — such as the Gracey 13 M5 — ensures that distal posterior surfaces receive targeted, effective debridement.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces.

Specifications: Zepf No. 24.751.113GM5

Zepf No. 24.751.113GM5
Insert type Curette insert
Pattern / working end Gracey 13 M5 (Gracey 13/14)
Fits handle Compatible Helmut Zepf interchangeable-insert handles
Sold as Replacement insert

As a Gracey 13 curette end, this insert is ground for the distal surfaces of posterior teeth and is used subgingivally for scaling and root planing, and its M5 shank (longer, thinner, with a shortened working end) reaches deep, narrow pockets. Exchanging the insert renews the working end; the handle is retained.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection

Warranty & returns

6-Month Warranty

This Helmut Zepf instrument is warranted against defects in materials and workmanship for its expected working life, which our research has shown to be 6 months from the date of delivery. See our Warranty page for full terms.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What surfaces does the Gracey 13 M5 treat?

It is designed for the distal surfaces of posterior teeth, including molars and premolars.

Which handles does this insert fit?

It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.

Can this insert be sterilized?

It is designed to withstand standard dental sterilization protocols, though always follow the manufacturer's guidelines.
