Helmut Zepf GmbH  |  SKU: 24.751.114GM5

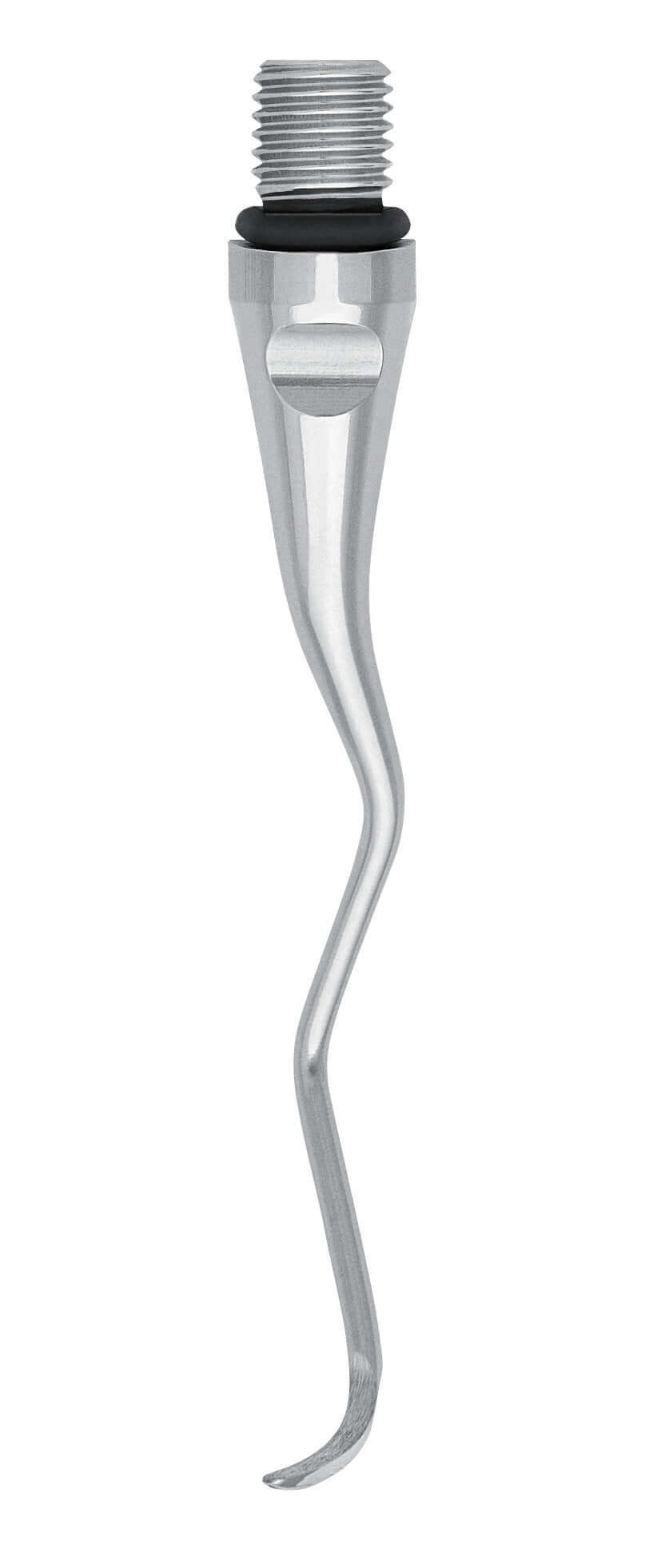

Curette Insert, Gracey 14 M5

Regular price $19.99
Shipping calculated at checkout.

The Gracey Curette Insert is a precision periodontal instrument designed to support effective subgingival scaling and root planing procedures. Engineered as an interchangeable insert for compatible Helmut Zepf handles, this insert delivers targeted access to specific tooth surfaces and periodontal pockets with clinical accuracy.

PatternGracey 14 M5 (Gracey 13/14)
Warranty6 months
Free pack of Busch burs with $500+ of Helmut ZepfChoose your bur pack in your cart · one per order
Free hygiene instrument with $1,000+ of Helmut ZepfChoose a scaler or curette in your cart · one per order
Free shipping on orders $500+$6.95 flat rate otherwise · US-stocked items ship in 1–2 business days
Jump to
$19.99
About this instrument

Area-Specific Design for Periodontal Therapy

The Gracey Curette Insert follows the established Gracey numbering system, where each instrument is optimized for particular regions of the dentition. The Gracey 14 designation targets the distal surfaces of posterior teeth, making it an essential tool in comprehensive periodontal maintenance and active therapy protocols. The Gracey Curette Insert in the M5 configuration — a longer, thinner and more flexible first shank with a shortened working end (see Design Notes below) — is built for deep, narrow pockets, offering efficient calculus removal and biofilm disruption.

Key Features

  • Area-specific tip geometry based on the Gracey curette design
  • Gracey 14 angulation for posterior distal surfaces
  • M5 deep-scaling shank for deep, narrow pockets
  • Supports precise subgingival instrumentation
  • Manufactured by Helmut Zepf GmbH, a recognized name in dental instrument production

Clinical Application

The Gracey Curette Insert is commonly used by dental hygienists and periodontists during scaling and root planing appointments. The Gracey 14 tip accesses distal posterior surfaces that can be challenging to reach with universal instruments, helping clinicians achieve thorough debridement while maintaining patient comfort.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces.

Specifications: Zepf No. 24.751.114GM5

Zepf No. 24.751.114GM5
Insert type Curette insert
Pattern / working end Gracey 14 M5 (Gracey 13/14)
Fits handle Compatible Helmut Zepf interchangeable-insert handles
Sold as Replacement insert

As a Gracey 14 curette end, this insert is ground for the distal surfaces of posterior teeth and is used subgingivally for scaling and root planing, and its M5 shank (longer, thinner, with a shortened working end) reaches deep, narrow pockets. When the edge is worn or sharpened down, only this insert is exchanged and the handle is kept.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips Ā· All QuickFix replaceable tips Ā· Helmut Zepf Dental Instrument Collection

Warranty & returns

6-Month Warranty

This Helmut Zepf instrument is warranted against defects in materials and workmanship for its expected working life, which our research has shown to be 6 months from the date of delivery. See our Warranty page for full terms.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What surfaces does the Gracey 14 insert treat?

The Gracey 14 is designed primarily for the distal surfaces of posterior teeth, providing optimized angulation for effective subgingival access.

Which handles does this insert fit?

It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.

Who manufactures this insert?

This insert is produced by Helmut Zepf GmbH, a dental instrument manufacturer known for quality periodontal and surgical instruments.

Expert Help
Not sure which instrument fits your procedure?
Talk to our instrument specialists for selection assistance.
60-day returns
Helmut Zepf instruments are returnable within 60 days for any reason, even if used.
Returns & Refunds
Warranty
Helmut Zepf Warranty: this instrument is covered for 6 months against defects in materials and workmanship.
View warranty
Made in Germany, shipped from the US
Helmut Zepf has been making instruments in Germany since 1921.
