Helmut Zepf GmbH  |  SKU: 24.751.102GM5-TI

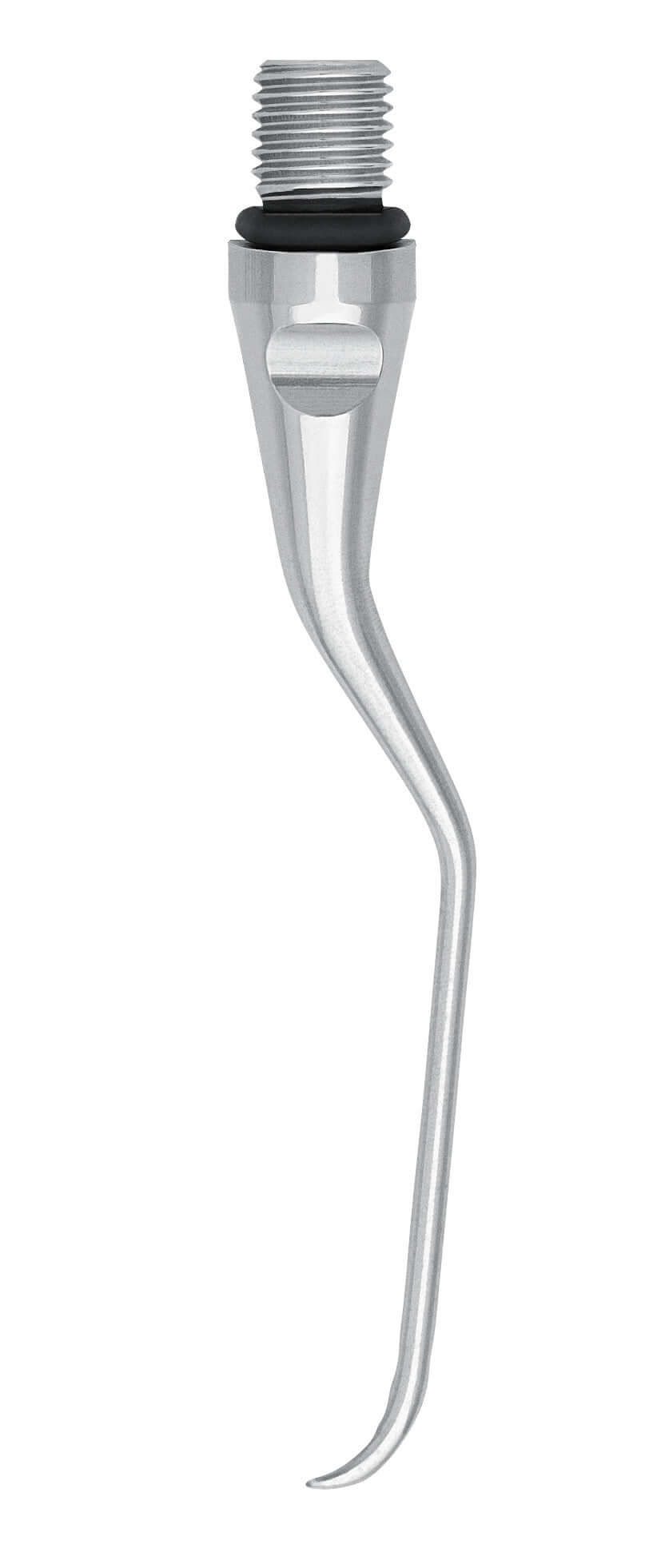

Curette Insert, Gracey 2 M5, Titanium

Regular price $39.99
Shipping calculated at checkout.

The Gracey Curette Insert is a precision-engineered periodontal instrument designed for effective subgingival scaling and root planing. Manufactured by Helmut Zepf GmbH, this insert combines area-specific geometry with advanced material science to deliver consistent clinical performance.

PatternGracey 2 M5 (Gracey 1/2)
Warranty6 months
Free pack of Busch burs with $500+ of Helmut ZepfChoose your bur pack in your cart · one per order
Free hygiene instrument with $1,000+ of Helmut ZepfChoose a scaler or curette in your cart · one per order
Free shipping on orders $500+$6.95 flat rate otherwise · US-stocked items ship in 1–2 business days
Jump to
$39.99
About this instrument

Gracey 2 M5 – Area-Specific Design

The Gracey 2 designation refers to the instrument's area-specific curvature, optimized for use on the anterior teeth and premolars. The M5 shank configuration — a longer, thinner and more flexible first shank with a shortened working end (see Design Notes below) — provides the reach needed to access tight, deep pockets with precision and control. Whether used in routine maintenance or more intensive periodontal therapy, this Gracey Curette Insert delivers reliable tactile feedback and adaptability.

Titanium Construction

This insert is crafted from high-grade titanium, a material chosen for its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. Titanium instruments are notably lighter than their stainless steel counterparts, reducing clinician hand fatigue during extended procedures. The material also withstands repeated sterilization cycles without degrading instrument integrity.

Key Features

  • Area-specific Gracey design for targeted subgingival access
  • Gracey 2 geometry suited for anterior and premolar regions
  • M5 deep-scaling shank for deep, narrow pockets
  • Titanium construction for lightweight durability and corrosion resistance
  • Interchangeable insert that threads into compatible Helmut Zepf handles
  • Suitable for repeated autoclave sterilization

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces.

Titanium for implant maintenance: the titanium working ends remove accumulated plaque film from implant necks without damaging the implant surface — the material choice that makes routine maintenance around implants safe.

Specifications: Zepf No. 24.751.102GM5-TI

Zepf No. 24.751.102GM5-TI
Insert type Curette insert
Pattern / working end Gracey 2 M5 (Gracey 1/2)
Material or coating Titanium
Fits handle Compatible Helmut Zepf interchangeable-insert handles
Sold as Replacement insert

The Gracey 2 working end is an area-specific curette for anterior teeth, used for subgingival scaling and root planing; the M5 version has a longer, thinner first shank and a shortened blade for deep, narrow pockets. The titanium execution is intended for implant maintenance. Replacing the insert alone restores a sharp working end while the handle stays in service.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection

Warranty & returns

6-Month Warranty

This Helmut Zepf instrument is warranted against defects in materials and workmanship for its expected working life, which our research has shown to be 6 months from the date of delivery. See our Warranty page for full terms.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What areas does the Gracey 2 insert treat?

The Gracey 2 is designed for use on anterior teeth and premolars, making it an essential instrument in a complete periodontal set.

Why choose a titanium Gracey Curette Insert over stainless steel?

Titanium offers a superior strength-to-weight ratio, reducing hand fatigue during longer appointments while maintaining excellent durability and corrosion resistance through repeated sterilization cycles.

Which handles does this insert fit?

It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.
