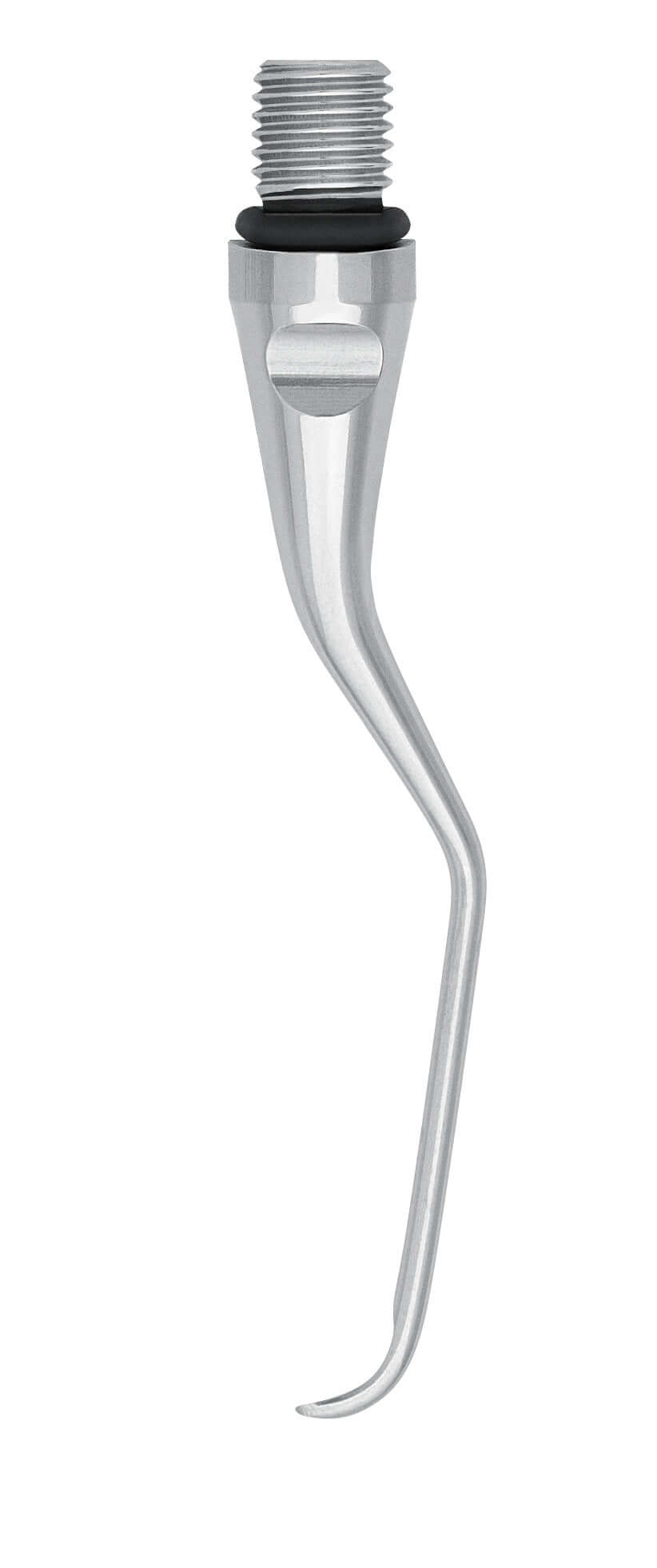

Curette Insert, Gracey 6 M5
The Gracey Curette Insert is a precision periodontal instrument designed for area-specific subgingival scaling and root planing. Engineered to reach distinct tooth surfaces and pocket depths, this insert delivers controlled, effective debridement with minimal tissue trauma.
About the Gracey 6 M5
The Gracey 6 M5 variant is designed for use on the anterior teeth and premolars, targeting buccal and lingual surfaces with accuracy. The offset blade angle — a hallmark of the Gracey design — ensures that only one cutting edge contacts the root surface at the correct angulation, reducing the risk of tissue damage and improving tactile sensitivity for the clinician.
As a Gracey Curette Insert, this instrument threads into compatible Helmut Zepf interchangeable-insert handles, so the working end can be replaced without replacing the handle. The M5 designation refers to Zepf's deep-scaling design — a longer, thinner and more flexible first shank with a shortened working end (see Design Notes below) — for deep, narrow pockets where access demands a refined, slender profile.
Key Features
- Area-specific design for anterior and premolar surfaces
- Offset blade angulation for single-edge cutting precision
- Interchangeable insert that threads into compatible Helmut Zepf handles
- Optimized tip profile for subgingival access
- Manufactured by Helmut Zepf GmbH to professional-grade standards
Clinical Applications
The Gracey Curette Insert is indicated for periodontal maintenance, initial therapy, and supportive periodontal treatment. It is suited for use by dental hygienists, periodontists, and general practitioners performing scaling and root planing procedures.
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
What surfaces is the Gracey 6 designed for? The Gracey 6 is primarily designed for anterior teeth and premolars, targeting buccal and lingual surfaces.
Which handles does this insert fit? It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.
Who manufactures this instrument? This instrument is manufactured by Helmut Zepf GmbH, a recognized name in dental instrument production.
Design Notes
The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).
Specifications: Zepf No. 24.751.106GM5
| Zepf No. | 24.751.106GM5 |
| Insert type | Curette insert |
| Pattern / working end | Gracey 6 M5 (Gracey 5/6) |
| Fits handle | Compatible Helmut Zepf interchangeable-insert handles |
| Sold as | Replacement insert |
As a Gracey 6 curette end, this insert is ground for anterior teeth and premolars and is used subgingivally for scaling and root planing, and its M5 shank (longer, thinner, with a shortened working end) reaches deep, narrow pockets. Swapping just the insert gives a fresh working end without buying a complete instrument.
Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection
This is a Gracey 5/6 Curette. See all 11 Zepf versions — handles, coatings and replacement inserts — on our Gracey 5/6 Curette page.
Backed by our Helmut Zepf Warranty — lifetime on extraction and explantation forceps, one year on every other Zepf instrument. Full terms and how to make a claim are on the Warranty page.
