Helmut Zepf GmbH  |  SKU: 24.751.107GM5OX

Curette Insert, Gracey 7 M5, ZEPF NANOPAL Coating

Regular price $49.99
Shipping calculated at checkout.
PatternGracey 7 M5 (Gracey 7/8)
Warranty9 months
Free pack of Busch burs with $500+ of Helmut ZepfChoose your bur pack in your cart · one per order
Free hygiene instrument with $1,000+ of Helmut ZepfChoose a scaler or curette in your cart · one per order
Free shipping on orders $500+$6.95 flat rate otherwise · US-stocked items ship in 1–2 business days
Jump to
$49.99
About this instrument

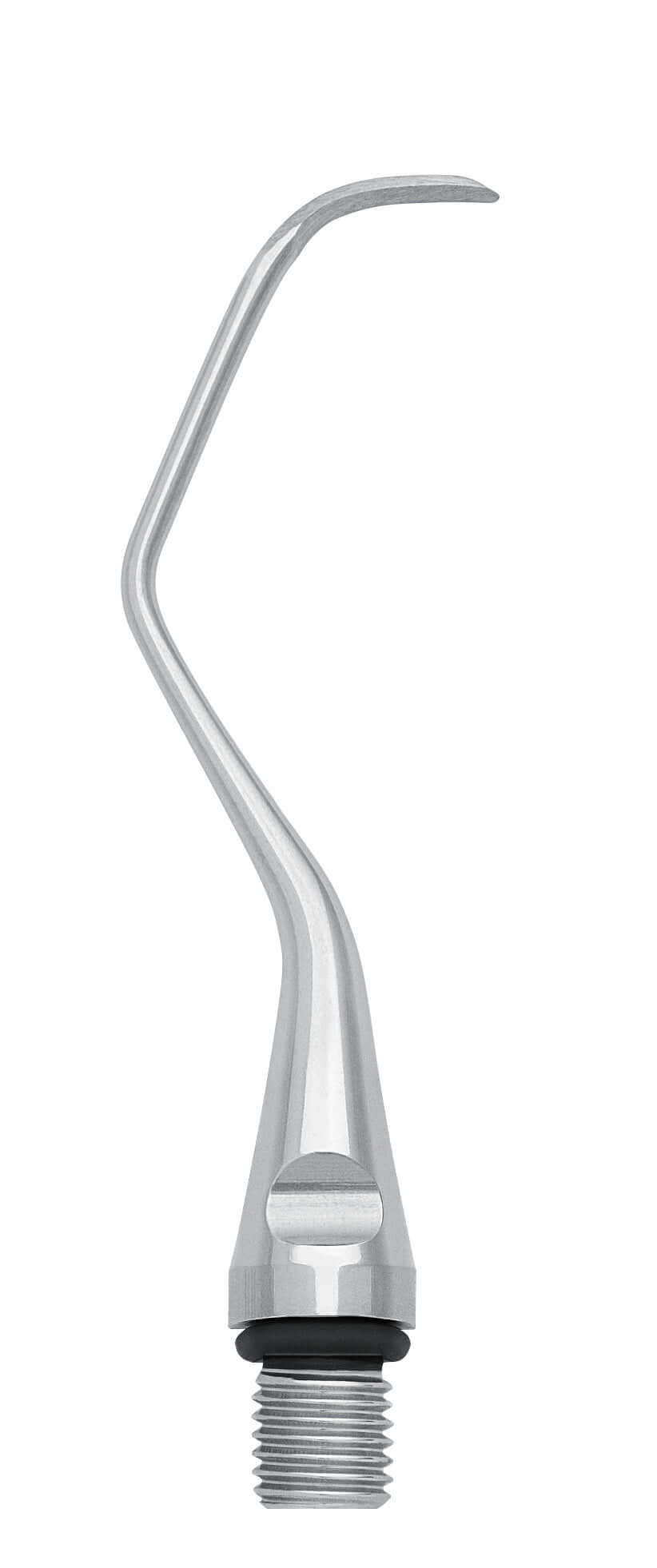

Gracey Curette Insert with ZEPF NANOPAL Coating

The Gracey Curette Insert Gracey 7 M5 from Helmut Zepf GmbH delivers professional-grade precision for subgingival scaling and root planing. Engineered to meet the demanding standards of modern periodontal practice, this insert combines the trusted Gracey design with the advanced ZEPF NANOPAL coating technology for enhanced durability and performance.

ZEPF NANOPAL Coating Technology

The NANOPAL coating applied to this Gracey Curette Insert provides a refined surface finish that supports smooth instrumentation and helps maintain edge integrity over repeated sterilization cycles. This specialized coating is designed to reduce friction during subgingival access, allowing for more controlled and efficient calculus removal without undue stress on surrounding soft tissue.

Gracey 7 M5 Design

The Gracey 7 design is area-specific, making it particularly suited for buccal and lingual surfaces of posterior teeth. The M5 designation refers to Zepf's deep-scaling design — a longer, thinner and more flexible first shank with a shortened working end (see Design Notes below) — giving clinicians a highly tactile feel in deep, narrow pockets. The combination of a well-established curette geometry with the NANOPAL surface treatment makes this Gracey Curette Insert a reliable choice for compatible Helmut Zepf interchangeable-insert handles.

Key Features

  • Area-specific Gracey 7 blade design for posterior tooth surfaces
  • ZEPF NANOPAL coating for improved durability and smooth instrumentation
  • M5 deep-scaling shank for deep, narrow pockets
  • Interchangeable insert that threads into compatible Helmut Zepf handles
  • Manufactured by Helmut Zepf GmbH to professional dental standards

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces.

Nanopal® coating: the black crystalline nano-coating raises surface hardness to 4,500 Vickers — the highly tempered cutting edge stays aggressive and sharp far longer and does not need resharpening after each curettage, while the scratch-resistant black surface is easy to clean and prevents light reflections.

Specifications: Zepf No. 24.751.107GM5OX

Zepf No. 24.751.107GM5OX
Insert type Curette insert
Pattern / working end Gracey 7 M5 (Gracey 7/8)
Material or coating ZEPF NANOPAL coating
Fits handle Compatible Helmut Zepf interchangeable-insert handles
Sold as Replacement insert

The Gracey 7 working end is an area-specific curette for the facial and lingual surfaces of posterior teeth, used for subgingival scaling and root planing; the M5 version has a longer, thinner first shank and a shortened blade for deep, narrow pockets. The ZEPF NANOPAL coating gives a harder surface that holds its edge longer. Replacing the insert alone restores a sharp working end while the handle stays in service.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection

Warranty & returns

9-Month Warranty

This Helmut Zepf instrument is warranted against defects in materials and workmanship for its expected working life, which our research has shown to be 9 months from the date of delivery. See our Warranty page for full terms.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What surfaces is the Gracey 7 curette designed for?

The Gracey 7 is an area-specific instrument primarily used on the buccal and lingual surfaces of posterior teeth during periodontal scaling and root planing procedures.

What does NANOPAL coating offer?

The NANOPAL coating provides a specialized surface treatment intended to enhance edge longevity and reduce friction during subgingival instrumentation, supporting more comfortable and efficient clinical use.

Which handles does this insert fit?

It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.
