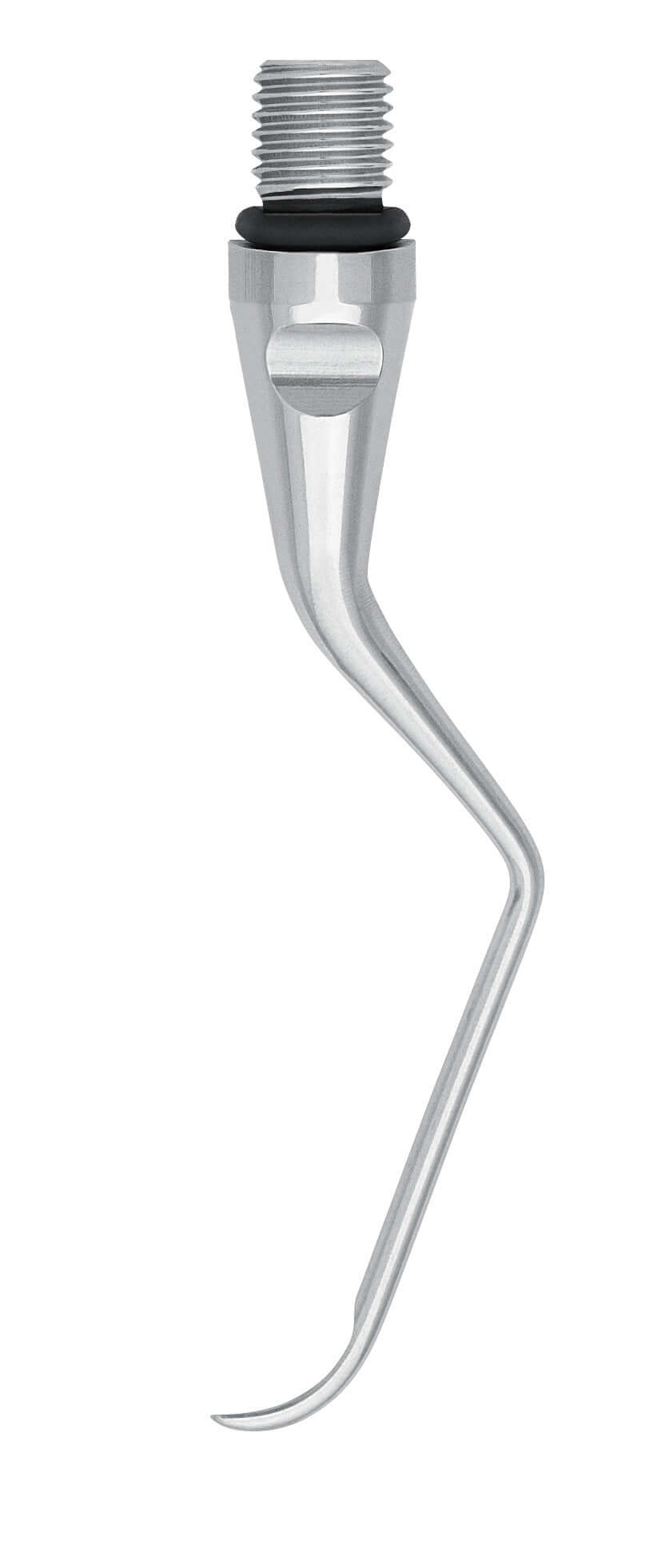

Curette Insert, Gracey 8 M5, Titanium

The Gracey Curette Insert is a precision periodontal instrument designed for area-specific subgingival scaling and root planing. This particular model — the Gracey 8 M5 in Titanium — is manufactured by Helmut Zepf GmbH and represents a professional-grade solution for clinicians who demand consistent performance and durability in their hand-scaling workflow.

Instrument Design and Application

The Gracey 8 M5 configuration is engineered for use in posterior regions, specifically targeting the buccal and lingual surfaces of premolars and molars. Like all Gracey-style instruments, this Gracey Curette Insert features an offset blade angle, allowing clinicians to maintain proper adaptation to the root surface without sacrificing access to deeper periodontal pockets.

Titanium Construction

Constructed from titanium, this insert offers an excellent strength-to-weight ratio compared to standard stainless steel alternatives. Titanium instruments are generally valued for their lightweight feel, corrosion resistance, and suitability for use around implant surfaces where metal-on-metal contact must be minimized. The material choice makes this Gracey Curette Insert a versatile option across a range of periodontal maintenance and active therapy cases.

Compatibility and Use

Designed as an insert format, this instrument threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before use. Follow your practice's standard sterilization and infection control protocols for reusable periodontal instruments.

1-Year Warranty

This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What areas does the Gracey 8 M5 treat? The Gracey 8 M5 is designed for the buccal and lingual surfaces of posterior teeth, including premolars and molars.

Why choose a titanium Gracey Curette Insert over stainless steel? Titanium offers a lighter weight, strong corrosion resistance, and is generally considered safer for use near implant surfaces compared to standard stainless steel instruments.

Is this instrument reusable? As a professional dental insert, it is intended for reuse following appropriate sterilization protocols established by your clinical facility.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).

Titanium for implant maintenance: the titanium working ends remove accumulated plaque film from implant necks without damaging the implant surface — the material choice that makes routine maintenance around implants safe. Manufacturer literature (PDF).

Specifications: Zepf No. 24.751.108GM5-TI

The Gracey 8 working end is an area-specific curette for the facial and lingual surfaces of posterior teeth, used for subgingival scaling and root planing; the M5 version has a longer, thinner first shank and a shortened blade for deep, narrow pockets. The titanium execution is intended for implant maintenance. Exchanging the insert renews the working end; the handle is retained.
