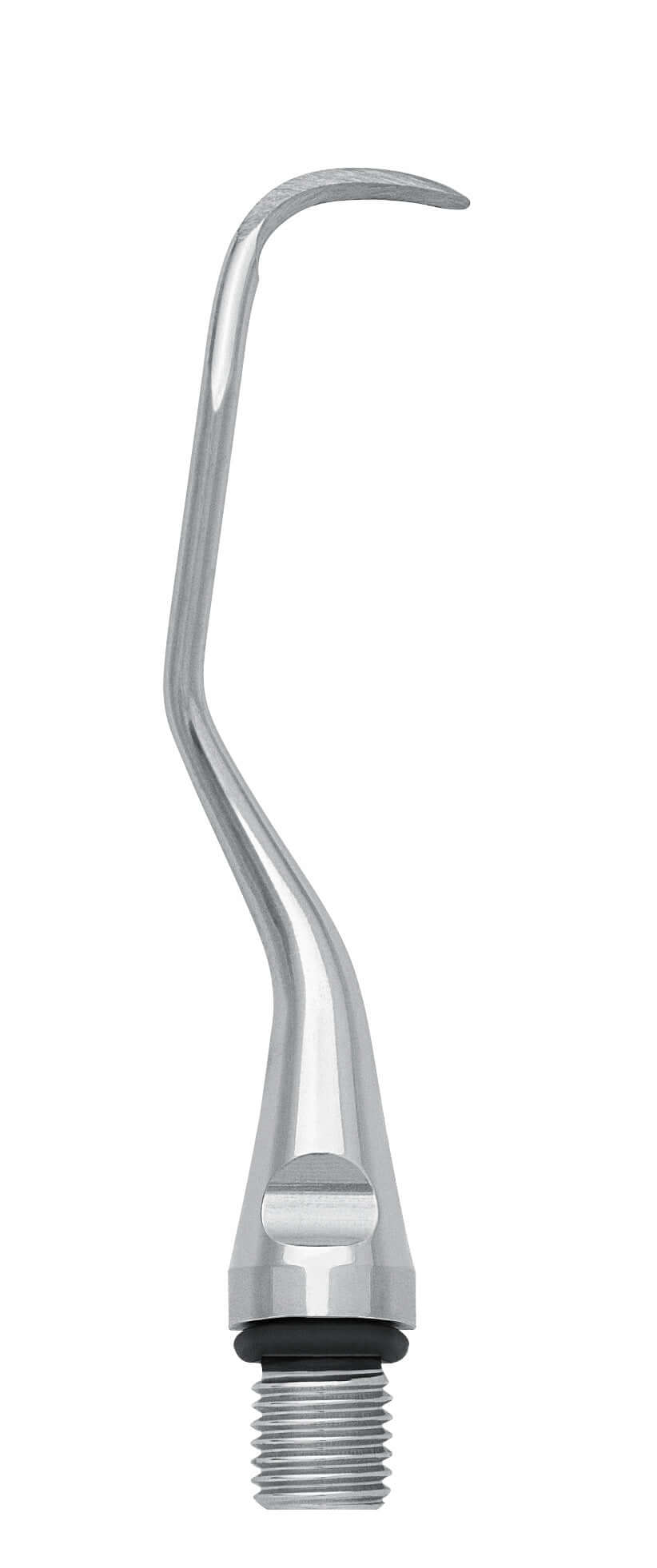

Curette Insert, Langer 1L M5, ZEPF NANOPAL Coating

The Langer Universal Curette Insert is a precision periodontal instrument designed to meet the demands of professional dental hygiene and scaling procedures. Manufactured by Helmut Zepf GmbH, this insert features the classic Langer 1L M5 blade geometry, making it a versatile choice for scaling and root planing across multiple tooth surfaces.

ZEPF NANOPAL Coating

This Langer Universal Curette Insert is enhanced with the ZEPF NANOPAL coating, a specialized surface treatment applied to the working end of the instrument. The NANOPAL coating is engineered to improve glide performance and reduce friction during subgingival instrumentation, supporting more controlled, efficient strokes with less resistance against calculus and root surfaces.

Key Features

• Langer 1L M5 blade design for universal posterior and anterior access
• ZEPF NANOPAL surface coating for enhanced instrument performance
• Interchangeable insert that threads into compatible Helmut Zepf handles
• Precision-manufactured by Helmut Zepf GmbH for consistent quality
• Durable construction suitable for repeated autoclave sterilization cycles

Clinical Application

The Langer Universal Curette Insert is particularly valued in periodontal therapy for its ability to adapt to both mesial and distal surfaces of posterior teeth as well as anterior regions. The 1L M5 configuration offers a balanced cutting edge geometry that facilitates thorough debridement while maintaining tactile sensitivity for the clinician.

1-Year Warranty

This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What makes the Langer Universal Curette Insert different from standard curettes? The Langer design combines features of both Gracey and universal curettes, offering broader versatility across multiple tooth surfaces with a single instrument.

Is the NANOPAL coating safe for repeated sterilization? The NANOPAL coating is designed for clinical use and is generally compatible with standard autoclave sterilization protocols, though specific guidance from the manufacturer should always be followed.

Which handles does this insert fit? It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).

Nanopal® coating: the black crystalline nano-coating raises surface hardness to 4,500 Vickers — the highly tempered cutting edge stays aggressive and sharp far longer and does not need resharpening after each curettage, while the scratch-resistant black surface is easy to clean and prevents light reflections. Manufacturer literature (PDF).

Specifications: Zepf No. 24.751.101LM5OX

The Langer 1L working end is a universal curette for mandibular posterior teeth, with a blade that adapts to both mesial and distal surfaces without changing inserts, in the M5 deep-scaling execution with a longer, thinner first shank. The ZEPF NANOPAL coating gives a harder surface that holds its edge longer. Replacing the insert alone restores a sharp working end while the handle stays in service.
