Helmut Zepf GmbH  |  SKU: 24.751.104LM5OX

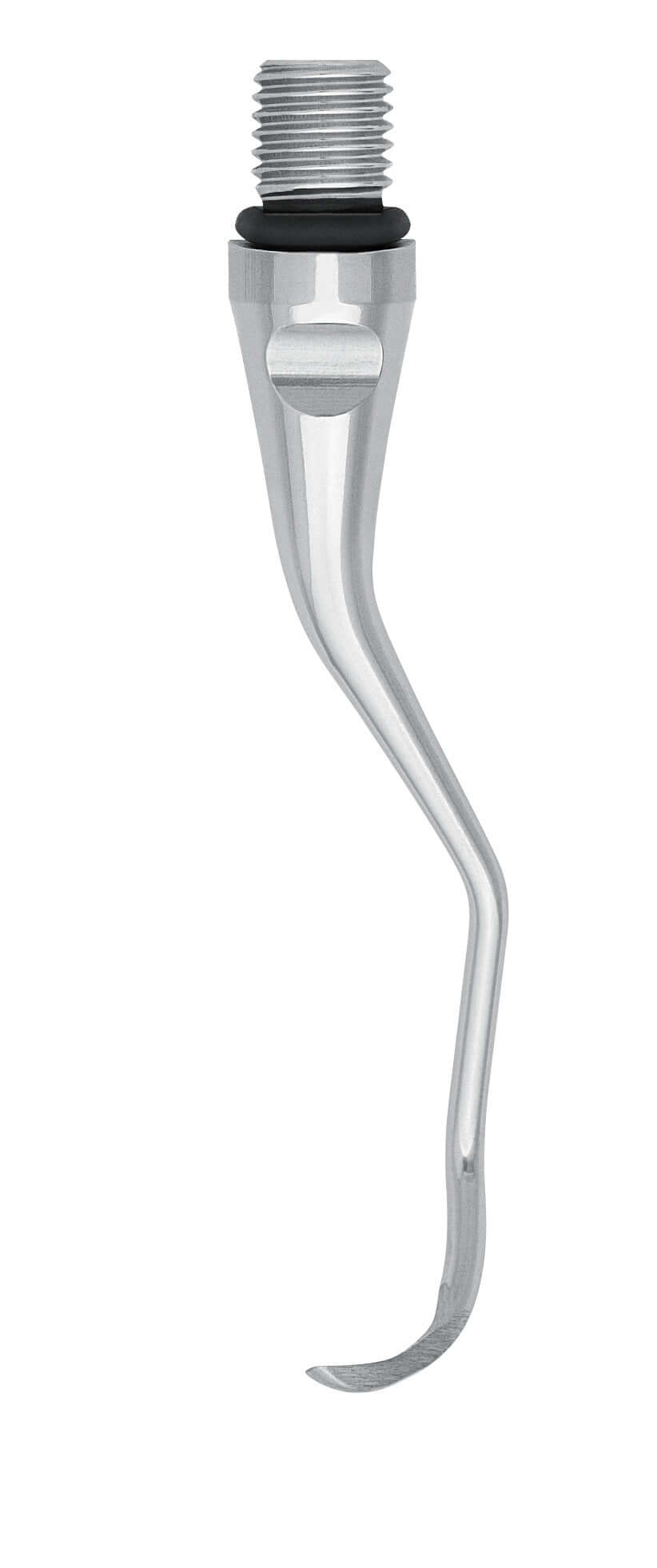

Curette Insert, Langer 4L M5, ZEPF NANOPAL Coating

Regular price $49.99
Shipping calculated at checkout.

The Langer Universal Curette Insert is a precision periodontal instrument designed for effective subgingival scaling and root planing across multiple tooth surfaces. This insert, designated Langer 4L M5 with a very fine tip, is engineered to deliver exceptional tactile sensitivity and access in challenging areas of the oral cavity.

PatternLanger 4L M5 (Langer 3/4)
Warranty9 months
Free pack of Busch burs with $500+ of Helmut ZepfChoose your bur pack in your cart · one per order
Free hygiene instrument with $1,000+ of Helmut ZepfChoose a scaler or curette in your cart · one per order
Free shipping on orders $500+$6.95 flat rate otherwise · US-stocked items ship in 1–2 business days
Jump to
$49.99
About this instrument

Advanced ZEPF NANOPAL Coating

Manufactured by Helmut Zepf GmbH, this Langer Universal Curette Insert features the proprietary ZEPF NANOPAL coating, a nano-particle surface treatment that significantly reduces friction and wear during instrumentation. The NANOPAL coating also enhances corrosion resistance, helping to maintain the sharpness and longevity of the cutting edge over repeated sterilization cycles.

Key Features

  • Langer 4L M5 design for universal periodontal application
  • Very fine tip for improved access to narrow pockets and furcation areas
  • ZEPF NANOPAL nano-particle coating for reduced friction and extended instrument life
  • Balanced ergonomic insert for consistent pressure and control
  • Interchangeable insert that threads into compatible Helmut Zepf handles
  • Suitable for repeated autoclave sterilization

Clinical Benefits

The Langer Universal Curette Insert is particularly valued in periodontal therapy for its versatility. The Langer pattern allows adaptation to both anterior and posterior teeth with a single instrument, streamlining clinical workflows. The very fine tip geometry facilitates gentle yet thorough debridement with minimal tissue trauma, making it suitable for sensitive or compromised periodontal tissues.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces.

Nanopal® coating: the black crystalline nano-coating raises surface hardness to 4,500 Vickers — the highly tempered cutting edge stays aggressive and sharp far longer and does not need resharpening after each curettage, while the scratch-resistant black surface is easy to clean and prevents light reflections.

Specifications: Zepf No. 24.751.104LM5OX

Zepf No. 24.751.104LM5OX
Insert type Curette insert
Pattern / working end Langer 4L M5 (Langer 3/4)
Working end / tip detail Very Fine Tip
Material or coating ZEPF NANOPAL coating
Fits handle Compatible Helmut Zepf interchangeable-insert handles
Sold as Replacement insert

This Langer 4L insert carries a universal curette blade for maxillary posterior teeth, so one working end covers mesial and distal surfaces; the M5 shank is longer and thinner for deep, narrow pockets, finished with a very fine tip for narrow pockets. Its NANOPAL coating is a harder surface for a longer-lasting edge. Exchanging the insert renews the working end; the handle is retained.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection

Warranty & returns

9-Month Warranty

This Helmut Zepf instrument is warranted against defects in materials and workmanship for its expected working life, which our research has shown to be 9 months from the date of delivery. See our Warranty page for full terms.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What does the M5 designation mean?

M5 is Zepf's deep-scaling design: the first shank is about 3 mm longer, thinner and more flexible, with a shortened working end, built for tight, deep pockets beyond 5 mm. The insert threads into compatible Helmut Zepf interchangeable-insert handles.

Is the NANOPAL coating safe for autoclave sterilization?

The NANOPAL coating is designed to withstand repeated sterilization cycles without compromising coating integrity or instrument performance.

What makes this a universal curette insert?

The Langer design features two cutting edges angled for use on multiple tooth surfaces, reducing the number of instruments needed during a periodontal appointment.
