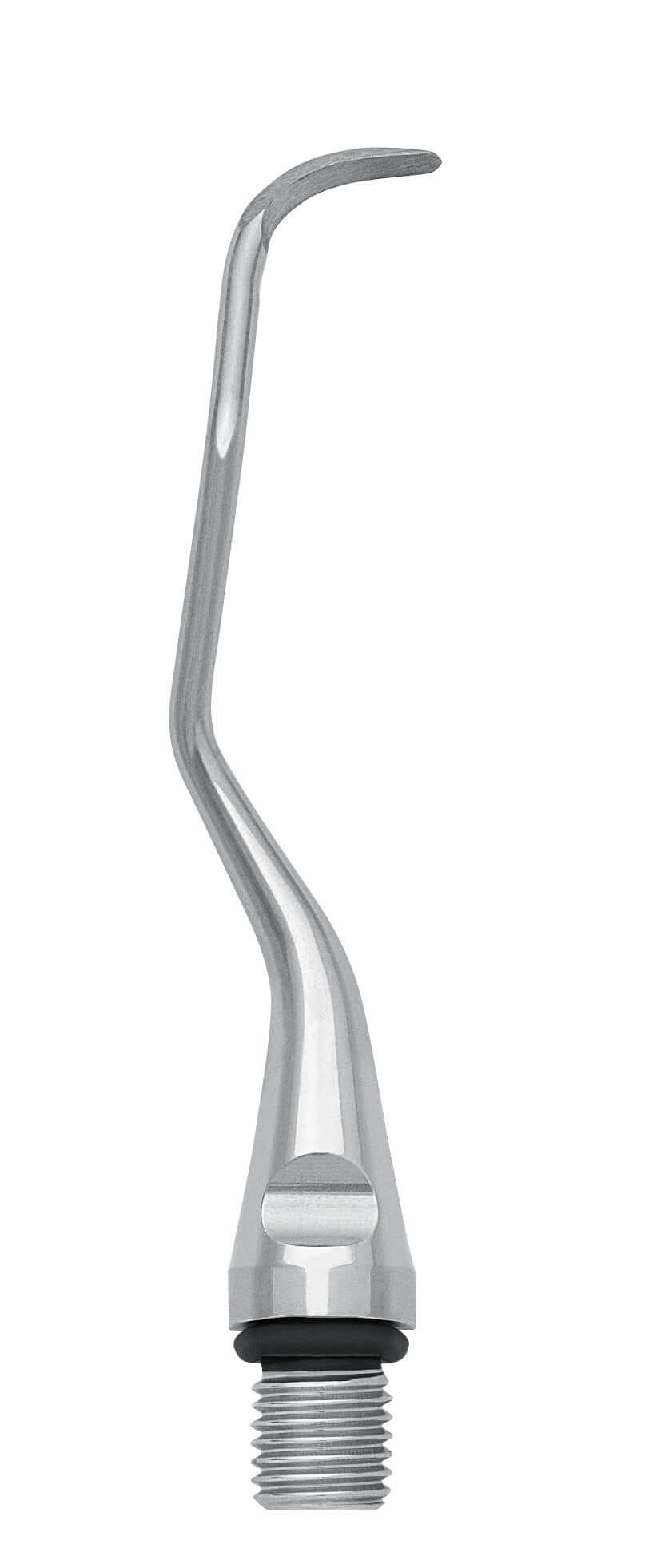

Curette Insert, Langer 3L M5, ZEPF NANOPAL Coating

The Langer Universal Curette Insert is a precision periodontal instrument designed to deliver consistent, efficient subgingival scaling and root planing across multiple tooth surfaces. This insert, designated as the Langer 3L M5 model, features the trusted Langer blade design that combines the angles of both Gracey and universal curettes, making it exceptionally versatile for use in anterior and posterior regions alike.

ZEPF NANOPAL Coating

Manufactured by Helmut Zepf GmbH, this Langer Universal Curette Insert is finished with the proprietary ZEPF NANOPAL coating — a specialized surface treatment intended to enhance instrument durability, reduce friction during use, and support long-term performance under clinical conditions. The NANOPAL coating is applied at a nano-scale level, contributing to a smooth, resilient working surface that complements the sharpness of the blade.

Key Features

• Langer 3L M5 blade geometry for versatile multi-surface access
• Interchangeable insert that threads into compatible Helmut Zepf handles
• ZEPF NANOPAL nano-scale surface coating for enhanced durability
• Designed for subgingival calculus removal and root planing
• Engineered for precision and consistent clinical performance

Clinical Application

The Langer Universal Curette Insert is suited for periodontal maintenance and active treatment protocols. Its universal curette-style blade angles allow clinicians to adapt a single instrument to multiple sites, reducing the need for frequent instrument changes during a procedure. The M5 design — a longer, thinner and more flexible first shank with a shortened working end (see Design Notes below) — is built for deep, narrow pockets.

1-Year Warranty

This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What makes the Langer 3L blade design universal? The Langer blade combines angulation principles from both Gracey and universal curettes, allowing effective access to both anterior and posterior tooth surfaces without requiring separate instruments for each region.

What does the NANOPAL coating do? The NANOPAL coating is a nano-scale surface finish applied to the insert tip to improve wear resistance and reduce friction, supporting sustained clinical performance over the instrument's service life.

What does the M5 designation mean? M5 is Zepf's deep-scaling design: the first shank is about 3 mm longer, thinner and more flexible, with a shortened working end, built for tight, deep pockets beyond 5 mm. The insert threads into compatible Helmut Zepf interchangeable-insert handles.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces. Manufacturer literature (PDF).

Nanopal® coating: the black crystalline nano-coating raises surface hardness to 4,500 Vickers — the highly tempered cutting edge stays aggressive and sharp far longer and does not need resharpening after each curettage, while the scratch-resistant black surface is easy to clean and prevents light reflections. Manufacturer literature (PDF).

Specifications: Zepf No. 24.751.103LM5OX

This Langer 3L insert carries a universal curette blade for maxillary posterior teeth, so one working end covers mesial and distal surfaces; the M5 shank is longer and thinner for deep, narrow pockets. Its NANOPAL coating is a harder surface for a longer-lasting edge. Swapping just the insert gives a fresh working end without buying a complete instrument.
