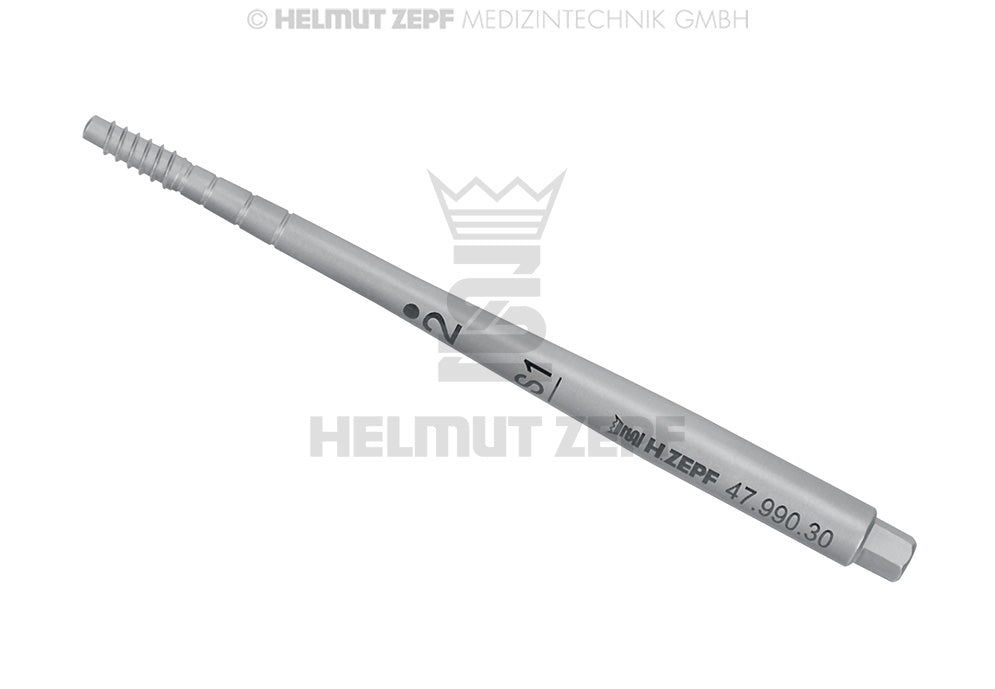

Screw Osteotome Insert, Straight, Size 2 | Helmut Zepf No. 47.990.30
The Screw Osteotome Insert, Straight, Size 2 is a component of the VGO Ost-Set, straight (anterior) osteotome kit, developed by Dr. Pavel Krastev DDS as part of the patented VGO Ost-Set system (U.S. Patent No. 9,333,058 B1). It is one of seven graduated straight screw-osteotome inserts, numbered 0 through 6, used for atraumatic ridge expansion during implant site preparation.
Product Overview
This size 2 insert has a tapered working end of Ø 2 – 3 mm with a convex shank diameter of Ø 3 mm. The first 8 mm of the tip is threaded, producing controlled micro-cuts in bone that increase localized bleeding and support angiogenesis — allowing site preparation without malleting.
Key Specifications
- Size: 2 (of 7, straight kit)
- Tapered Working End: Ø 2 – 3 mm
- Convex Shank Diameter: Ø 3 mm
- Graduation Scale: 8 / 10 / 13 / 16 mm
- Connection: Hex connection for Z-Shape Universal Handle
- System: VGO Ost-Set, straight (anterior) kit — No. 47.990.00
- Item Number: 47.990.30
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
Does this insert require malleting? No. The threaded first 8 mm of the tip produces controlled micro-cuts as it advances, so no malleting is needed.
What are the tapered and shank dimensions of size 2? Size 2 has a tapered working end of Ø 2 – 3 mm and a convex shank diameter of Ø 3 mm.
What kit does this insert belong to? It is one of seven graduated inserts (sizes 0–6) included in the VGO Ost-Set, straight (anterior) complete kit, Helmut Zepf No. 47.990.00, developed by Dr. Pavel Krastev DDS.
