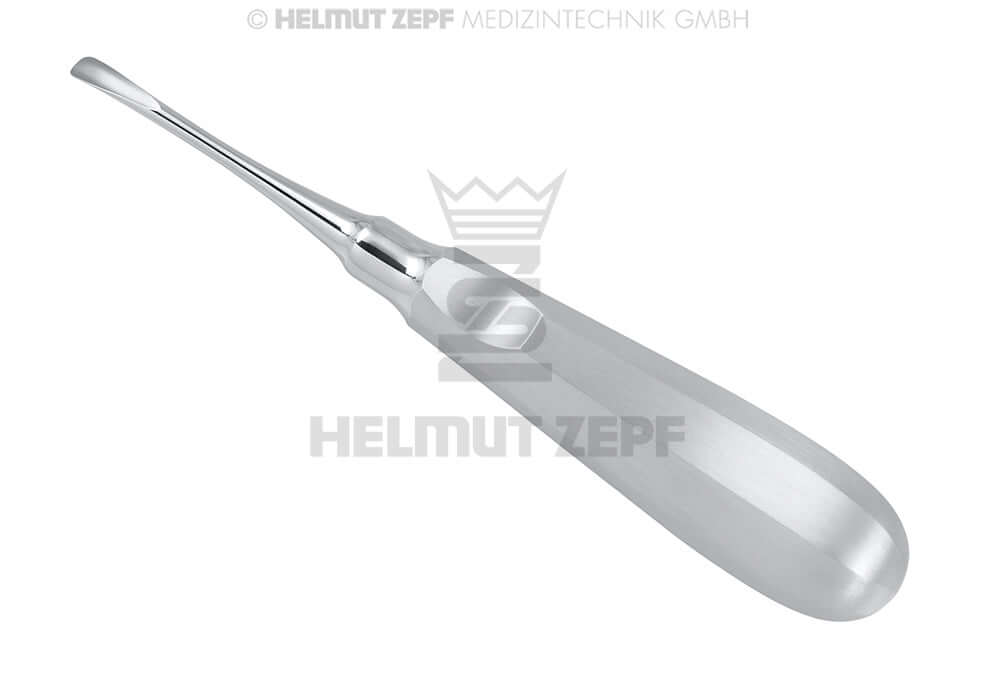

Root Elevator for Axial Luxation 5 mm, Curved, #4 Standard Handle with Thumb Rest | Helmut Zepf No. 17.006.04
This instrument is included in Dr. Rasner’s Basic Surgical Extraction Kit — the seven-instrument set used in the extraction course at the Rasner Institute.
The curved root elevator axial luxation instrument from Helmut Zepf GmbH is a precision-engineered dental tool designed to facilitate controlled, atraumatic tooth extraction procedures. With a 5 mm working tip and a curved blade geometry, this elevator is purpose-built to deliver effective axial luxation force along the long axis of the root, minimizing stress to surrounding bone and soft tissue.
This is an Axial Luxation Elevator (Luxator). See all 6 Zepf versions on our Axial Luxation Elevator (Luxator) page.
Backed by our Helmut Zepf Warranty — this instrument is warranted against defects in materials and workmanship for 1 year. Full terms and how to make a claim are on the Warranty page.
Key Features
- Working Tip: 5 mm blade width for targeted application
- Design: Curved configuration optimized for the axial luxation technique
- Handle: #4 Standard Handle with Thumb Rest for enhanced grip and tactile feedback
- Manufacturer: Helmut Zepf GmbH — Made in Germany
- Item No.: 17.006.04

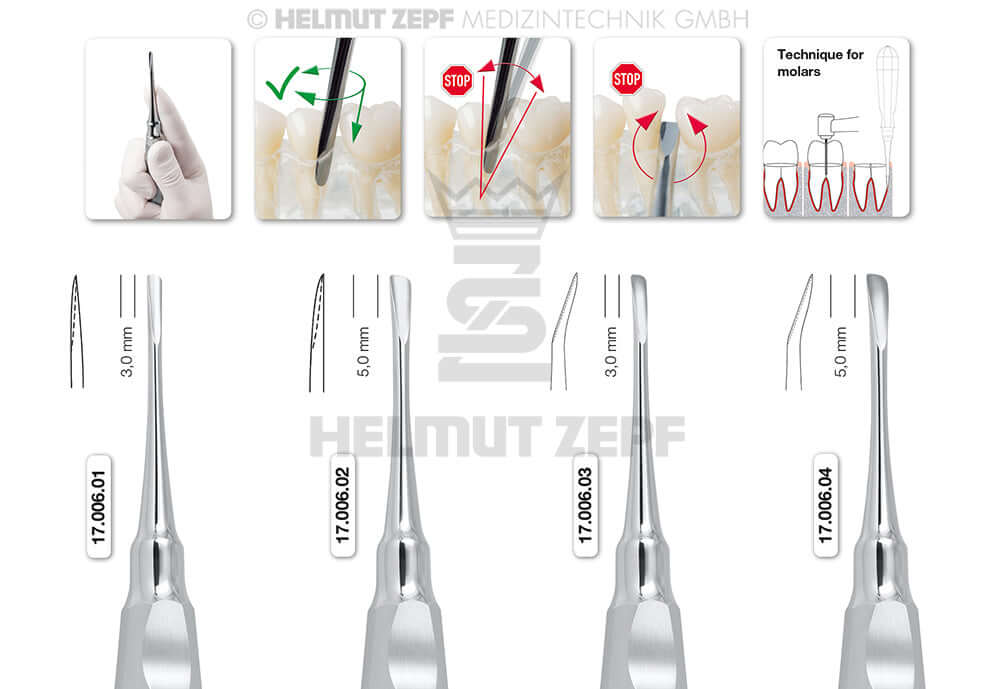

Clinical Application
As a curved root elevator axial luxation instrument, this tool is well suited for both anterior and posterior extractions where controlled coronal displacement is required. The curved shaft allows for improved angulation in restricted intraoral access areas, while the thumb rest on the #4 Standard Handle supports precise rotational and lever movements throughout the luxation process.
Crafted to the exacting standards expected of German dental instrument manufacturing, this elevator delivers consistent, reliable performance session after session. The ergonomic handle design reduces operator fatigue during extended procedures, making the curved root elevator axial luxation a dependable addition to any extraction armamentarium. Its purposeful geometry and balanced weight distribution contribute to refined control, particularly in cases demanding careful force management around fragile root structures.
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
What is the blade width of this elevator?
The working tip measures 5 mm in width.
What handle type is included?
This instrument features a #4 Standard Handle with Thumb Rest for improved control and comfort during procedures.
Where is this instrument manufactured?
This curved root elevator axial luxation is manufactured by Helmut Zepf GmbH in Germany.
What is the item number?
The item number for this instrument is 17.006.04.
Compare With
| Brand | Axial Luxation #4 — 5 mm, curved – Base Designation |
|---|---|
| Hu-Friedy | EL5C / EL5CSM |
| Karl Schumacher | C-LUX0005C / C-LUX0005CT |
| A. Titan | LUX 5A |
| Salvin | LUX-5-CURVED |
| Miltex | DELLUXC5 |
| Nordent | ELX5CT |
| Directa | L5C |
Base pattern designations shown. Same clinical pattern, not identical manufacture — see our Surgical Instrument Comparison Chart.
