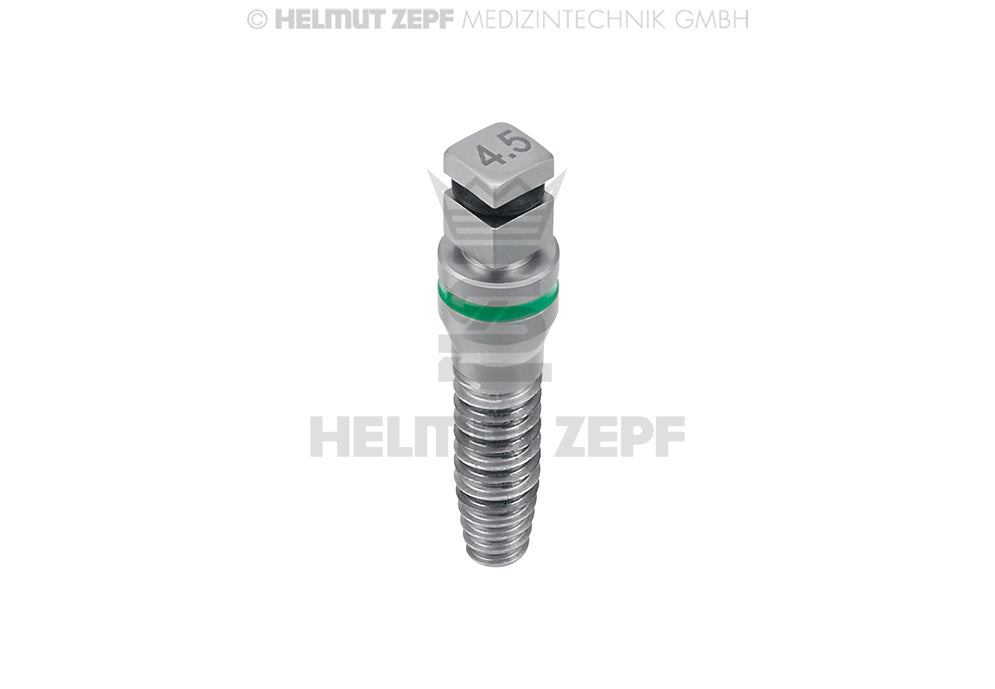

Expansion Screw 3.0 x 4.5 mm x 14.5 mm, for Bone Expander System | Helmut Zepf No. 47.565.09
The Expansion Screw 3.0 x 4.5 mm x 14.5 mm from Helmut Zepf GmbH (item no. 47.565.09) is the largest helical spreader in the Bone Expander System. Used as a minimally invasive alternative to osteotomes, the screw is threaded into the resorbed ridge to expand and condense cancellous bone in a controlled manner, giving higher primary stability for subsequent implant insertion.
Backed by our Helmut Zepf Warranty — this instrument is warranted against defects in materials and workmanship for 1 year. Full terms and how to make a claim are on the Warranty page.
Key Features
- Dimensions: 3.0 mm tip, 4.5 mm max Ø, 14.5 mm working length with mm graduation (4–11 mm).
- Drives With: Adapter with dental connector 47.565.01, adapter with square fitting 47.565.02, or wrench 47.800.05.
- Pilot Drill: Ø 1.96 x 15 mm drill 08.525.16.
- Part of: Bone Expander System complete set 47.565.00.
Specifications: Helmut Zepf No. 47.565.09
| Zepf No. | 47.565.09 |
| Instrument type | Expansion screw |
| Working end | Ø 3.0 mm tip, Ø 4.5 mm max, 14.5 mm length |
| Part of set | Bone Expander System (47.565.00) |
| Pack / sold as | Single instrument |
This expansion screw (Ø 3.0 mm tip, Ø 4.5 mm maximum, 14.5 mm long) is threaded into a narrow ridge to expand and condense the bone around it, as a screw-driven alternative to malleted osteotomes. The screws are used in ascending diameter until the site reaches the width needed for the implant. It is the largest screw, used last for wide sites.
Read the guides: Bone Expander System · Implantology & Bone Regeneration · Must-Have Implantology Instrument List · All implantology instruments · All Helmut Zepf instruments
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
What are the other sizes?
47.565.05 (1.8 x 2.5), 47.565.06 (2.0 x 3.0), 47.565.07 (2.5 x 3.5), 47.565.08 (2.8 x 4.0 mm) — all 14.5 mm long.
