Helmut Zepf GmbH  |  SKU: 24.751.112GM5

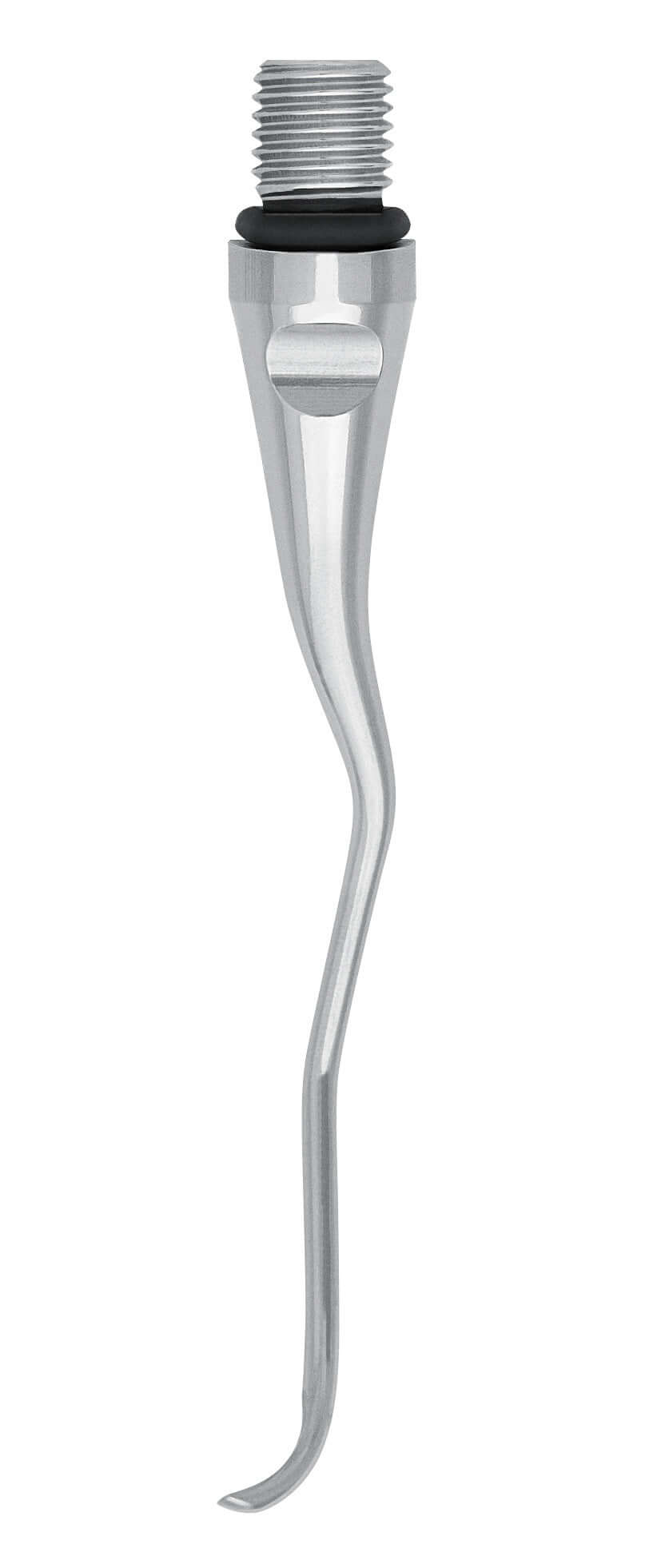

Curette Insert, Gracey 12 M5

Regular price $19.99
Shipping calculated at checkout.

The Gracey Curette Insert is a precision-engineered periodontal instrument designed for effective subgingival scaling and root planing. An interchangeable insert for compatible Helmut Zepf handles, it brings the proven geometry of the Gracey curette design to a replaceable-tip format.

PatternGracey 12 M5 (Gracey 11/12)
Warranty6 months
Free pack of Busch burs with $500+ of Helmut ZepfChoose your bur pack in your cart · one per order
Free hygiene instrument with $1,000+ of Helmut ZepfChoose a scaler or curette in your cart · one per order
Free shipping on orders $500+$6.95 flat rate otherwise · US-stocked items ship in 1–2 business days
Jump to
$19.99
About this instrument

Key Features

  • Area-specific design based on the classic Gracey curette configuration, targeting posterior teeth including furcation areas
  • Engineered for subgingival access with a contoured tip that adapts to root morphology
  • Interchangeable insert for compatible Zepf handle systems
  • Durable construction designed for repeated autoclaving and clinical use
  • Gracey 12 geometry optimized for mesial surfaces of posterior teeth

Clinical Application

The Gracey Curette Insert — model Gracey 12 M5 — is suited for dental hygienists and periodontists performing non-surgical periodontal therapy. Its area-specific angulation allows confident adaptation to complex root surfaces, reducing operator fatigue while maintaining calculus removal efficiency. The M5 designation refers to Zepf's deep-scaling blade design (see Design Notes below); clinicians should verify the thread specification against their handle before use.

About the Manufacturer

This insert is supplied by Helmut Zepf GmbH, a recognized manufacturer of dental instruments committed to quality and precision in clinical dentistry.

Design Notes

The M5 design: the first shank is about 3 mm longer than standard and the sharpened working end is shortened, with a 0.95 mm thin, flexible and therefore highly tactile first shaft — built for special subgingival curettage in tight, deep pockets (beyond 5 mm) and along narrow root surfaces.

Specifications: Zepf No. 24.751.112GM5

Zepf No. 24.751.112GM5
Insert type Curette insert
Pattern / working end Gracey 12 M5 (Gracey 11/12)
Fits handle Compatible Helmut Zepf interchangeable-insert handles
Sold as Replacement insert

As a Gracey 12 curette end, this insert is ground for the mesial surfaces of posterior teeth and is used subgingivally for scaling and root planing, and its M5 shank (longer, thinner, with a shortened working end) reaches deep, narrow pockets. Swapping just the insert gives a fresh working end without buying a complete instrument.

Read the guides: Hygiene Instruments with QuickFix Replaceable Tips · All QuickFix replaceable tips · Helmut Zepf Dental Instrument Collection

Warranty & returns

6-Month Warranty

This Helmut Zepf instrument is warranted against defects in materials and workmanship for its expected working life, which our research has shown to be 6 months from the date of delivery. See our Warranty page for full terms.

60-Day Returns — Any Reason, Even If Used

Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.

FAQ

What teeth is the Gracey 12 insert designed for?

The Gracey 12 is area-specific and intended primarily for mesial surfaces of posterior teeth.

Is the Gracey Curette Insert autoclavable?

Yes — inserts of this type are designed to withstand standard autoclave sterilization cycles; always follow the manufacturer's sterilization guidelines.

Which handles does this insert fit?

It threads into compatible Helmut Zepf interchangeable-insert handles. Verify the thread specification against your handle before clinical use.
