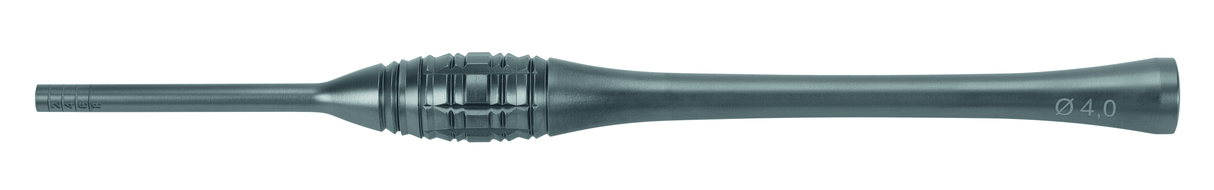

Osteotome Instrument, Straight - Tip Concave, Ø4.0mm, TOUCHGRIP DESIGN | Helmut Zepf No. 47.748.41HZU
The Osteotome Instrument in straight configuration with a concave tip (Ø4.0mm) is a precision surgical tool developed in collaboration with Dr. Hürzeler and Dr. Zuhr, presented in the refined TOUCHGRIP Design by Helmut Zepf GmbH.
Product Overview
This Osteotome Instrument features a straight shank and a concave tip geometry with a diameter of Ø4.0mm, making it well-suited for controlled bone manipulation and socket preparation procedures in implant dentistry. The concave tip design facilitates precise engagement with osseous tissue, supporting clinical accuracy during delicate surgical steps. Referenced under Helmut Zepf No. 47.748.41HZU, this instrument is purpose-built for clinicians who demand repeatability and control in demanding surgical environments.
TOUCHGRIP Design
The TOUCHGRIP Design, conceived by Dr. Hürzeler and Dr. Zuhr, provides enhanced tactile feedback and an ergonomic grip profile, allowing clinicians to maintain confident control throughout each procedure. This design philosophy reflects a commitment to instrument usability and operator comfort. For complete details on the TOUCHGRIP concept, refer to the official TOUCHGRIP brochure (PDF).
1-Year Warranty
This Helmut Zepf instrument is covered by a 1-year warranty against defects in materials and workmanship from the date of delivery.
60-Day Returns — Any Reason, Even If Used
Put this instrument to work in your practice. If it is not right for you, return it within 60 days of delivery for a full refund — for any reason, even if it has been used.
FAQ
What is the Helmut Zepf reference number for this instrument? The manufacturer reference number is 47.748.41HZU; use it for reordering and inventory identification.
How should this instrument be reprocessed? Follow the manufacturer’s reprocessing instructions and your local infection-control protocols; inspect the instrument before each use and after each cycle.
Where is this instrument made? It is manufactured by Helmut Zepf Medizintechnik in Seitingen-Oberflacht, Germany — a specialist in precision dental instruments since 1921.
Manufacturer literature: TOUCHGRIP brochure (PDF) — more in our Surgical Instrument Library.
Specifications: Helmut Zepf No. 47.748.41HZU
| Zepf No. | 47.748.41HZU |
| Instrument type | Osteotome, concave tip, straight |
| Working end | Concave tip, straight, Ø 4.0 mm |
| Handle | TOUCHGRIP |
| Part of set | TOUCHGRIP Immediate Implant Placement Set |
| Pack / sold as | Single instrument |
A concave working end is used where the operator wants to lift the sinus floor through the osteotomy or to compact soft bone, because the cupped tip carries bone upward rather than ahead of it. Being straight, it is the pattern for anterior sites and open access. At Ø 4.0 mm it is one of the final sizes, bringing the site to the diameter needed for a wide implant. The TOUCHGRIP handle gives a flat, tactile grip for mallet work.
Read the guides: Dental Osteotomes Explained · Implantology & Bone Regeneration · TOUCHGRIP Instruments Explained · All implantology instruments · All Helmut Zepf instruments
Backed by our Helmut Zepf Warranty — lifetime on extraction and explantation forceps, one year on every other Zepf instrument. Full terms and how to make a claim are on the Warranty page.
