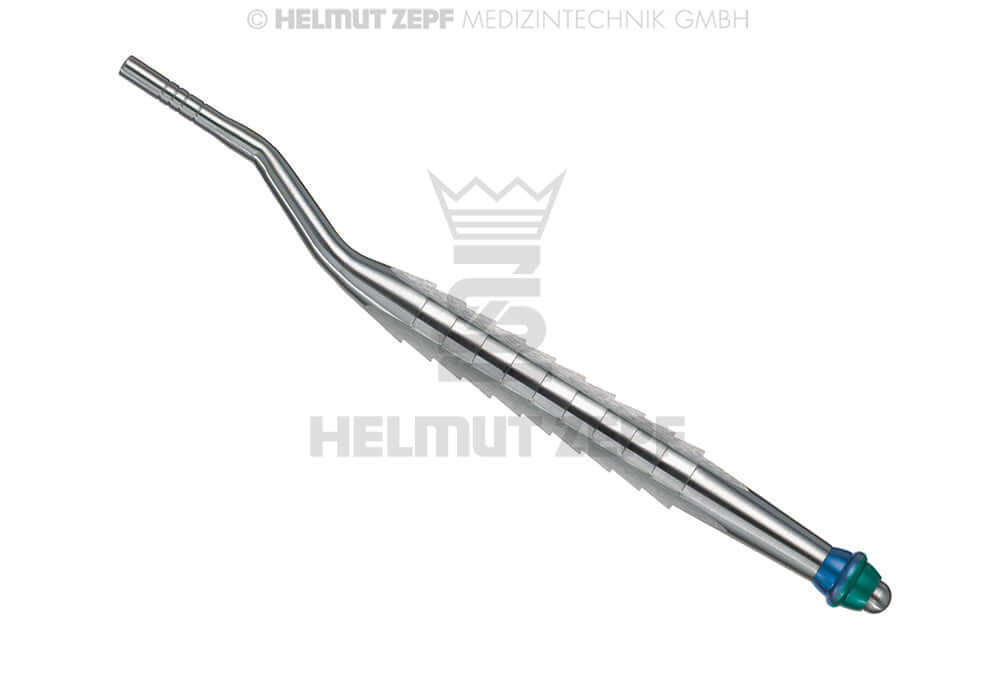

Angulated Osteotomes by Helmut Zepf

Angulated osteotomes by Helmut Zepf are precision surgical instruments for implant site preparation. Their angled working end gives access to regions that are difficult to reach with straight instruments, improving visibility and control. This collection holds the complete Angulated Osteotome Set with ZEPFcare washbasket and the individual convex and concave angled osteotomes, each color-marked by diameter for implants from Ø 2.0 to Ø 6.0 mm.

Since 1921 · Made in GermanyShips from the US
Angulated Osteotomes by Helmut Zepf
11 instruments
View as

Guides & charts for this collection

Reference pages already linked from this collection, in one place.

Which Angulated Osteotome Do You Need?

Start with the complete set, or choose a convex or concave tip and match the diameter mark to the planned implant; every active product in the collection is linked once below.

Complete set1 items
Zepf No. Pattern or size Use
47.940.01 Angulated Dental Osteotome Set, complete, with ZEPFcare washbasket All diameters
Convex tips, angled5 items
Zepf No. Pattern or size Use
47.945.20 Convex, angled, Ø 2.0, colorless mark Implants Ø 2.0
47.945.28 Convex, angled, Ø 2.8, colorless mark Implants Ø 2.8
47.945.33 Convex, angled, Ø 2.8 / 3.3, colorless/yellow mark Implants Ø 3.3 / 3.8
47.945.38 Convex, angled, Ø 3.4 / 3.8, red mark Implants Ø 4.3
47.945.43 Convex, angled, Ø 3.9 / 4.3, blue/green mark Implants Ø 5.0 / 6.0
Concave tips, angled5 items
Zepf No. Pattern or size Use
47.943.20 Concave, angled, Ø 2.0, colorless mark Implants Ø 2.0
47.943.28 Concave, angled, Ø 2.8, colorless mark Implants Ø 2.8
47.943.33 Concave, angled, Ø 2.8 / 3.3, colorless/yellow mark Implants Ø 3.3 / 3.8
47.943.38 Concave, angled, Ø 3.4 / 3.8, red mark Implants Ø 4.3
47.943.43 Concave, angled, Ø 3.9 / 4.3, blue/green mark Implants Ø 5.0 / 6.0

Key Features and Benefits

  • Optimized Angulation: The angled working ends of angulated osteotomes enable precise access to confined surgical sites, reducing the need for excessive tissue retraction.
  • High-Grade Materials: Crafted from surgical-grade stainless steel, these instruments offer excellent edge retention, corrosion resistance, and durability across repeated sterilization cycles.
  • Ergonomic Handles: Designed for a secure, comfortable grip, allowing surgeons to apply controlled force with minimal fatigue during extended procedures.
  • Versatile Application: Convex and concave tips in five diameters, color-marked to match the implant diameter.

Clinical Use

Angulated osteotomes are used for implant site preparation and in sinus lift procedures, where the angled working end gives better reach in posterior regions than a straight instrument. Each osteotome is marked for the implant diameter it prepares, from Ø 2.0 to Ø 6.0 mm.

Care and Maintenance

To maintain optimal performance, angulated osteotomes should be cleaned, inspected, and sterilized according to established practice and manufacturer guidelines after every use. Regular inspection for blade integrity and handle condition is recommended to ensure patient safety and instrument longevity.

Our Surgical Instrument Reprocessing & Sterilization Guide walks through the workflow for Helmut Zepf implant instruments.

Compare With

Related collections: Dental Osteotomes & Sinus Lift Instruments, Straight Osteotome Set, Osteotome Set, Interchangeable Osteotome Set, Osteotome Inserts, Implantology Instruments. For instrument types and terms, see the Surgical Instrument Comparison Chart and the Surgical Instrument Glossary.

Dental Instruments, Tools, Burs, Diamonds and Polishers Made In Germany

FAQ

What makes angulated osteotomes different from standard osteotomes?

The angled blade geometry allows access to areas that straight osteotomes cannot reach, providing greater surgical versatility in confined anatomical spaces.

Are angulated osteotomes reusable?

Most are designed for multiple uses and are compatible with standard autoclaving and sterilization protocols, though individual product specifications should always be consulted.
