Busch COOL DIAMANT Low-Heat Diamond Bur Collection

Which COOL DIAMANT Diamond Bur Do You Need?

Every COOL DIAMANT figure currently stocked at DeutscheDT.com is listed below by shape. Coarse grit figures carry a G suffix, fine grit figures an F suffix, and figures with no suffix are medium grit. Click a Busch number to open that product.

Cylinder Round

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 27G 010	010	Coarse	FG	6
CD 27 010	010	Medium	FG	6
CD 27 012	012	Medium	FG	6
CD 30G 012	012	Coarse	FG	6
CD 30G 014	014	Coarse	FG	6
CD 30 010	010	Medium	FG	6
CD 30 012	012	Medium	FG	6
CD 30 014	014	Medium	FG	6
CD 33G 012	012	Coarse	FG	6
CD 33G 014	014	Coarse	FG	6
CD 33 012	012	Medium	FG	6
CD 33 014	014	Medium	FG	6
CD 33F 012	012	Fine	FG	2
CD 34G 012	012	Coarse	FG	6
CD 34G 014	014	Coarse	FG	6
CD 34 012	012	Medium	FG	6
CD 34 014	014	Medium	FG	6

Cylinder Rounded Edge

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 21G 010	010	Coarse	FG	6
CD 21G 012	012	Coarse	FG	6
CD 21G 014	014	Coarse	FG	6
CD 21 010	010	Medium	FG	6
CD 21 012	012	Medium	FG	6
CD 21 014	014	Medium	FG	6
CD 24G 012	012	Coarse	FG	6
CD 24G 014	014	Coarse	FG	6
CD 24 012	012	Medium	FG	6
CD 24 014	014	Medium	FG	6
CD 24 016	016	Medium	FG	6
CD 25G 012	012	Coarse	FG	6
CD 25G 014	014	Coarse	FG	6
CD 25 012	012	Medium	FG	6
CD 25 014	014	Medium	FG	6
CD 25 016	016	Medium	FG	6

Cylinder Pointed

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 78G 016	016	Coarse	FG	6
CD 78 016	016	Medium	FG	6

Taper (Cone) Round

Busch No.	Size (ISO)	Grit	Shank	Pack

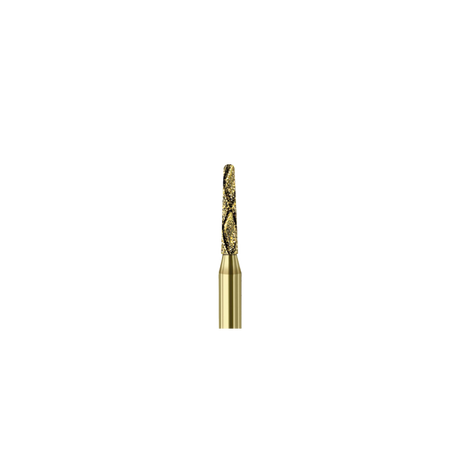

CD 45 014	014	Medium	FG	6
CD 48G 016	016	Coarse	FG	6
CD 48G 018	018	Coarse	FG	6

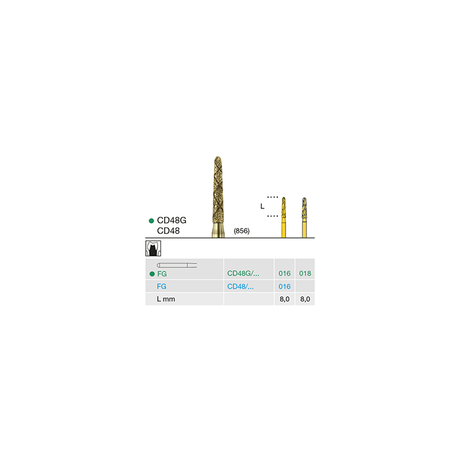

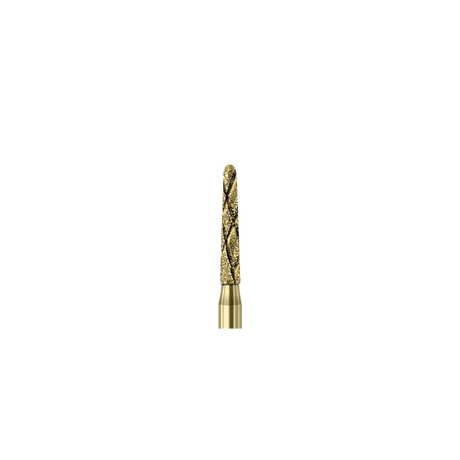

CD 48 016	016	Medium	FG	6
CD 51G 016	016	Coarse	FG	6
CD 51G 018	018	Coarse	FG	6

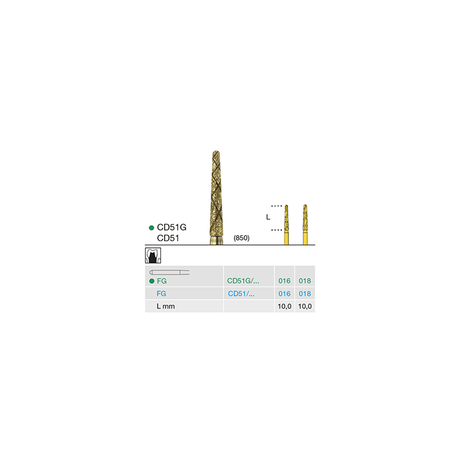

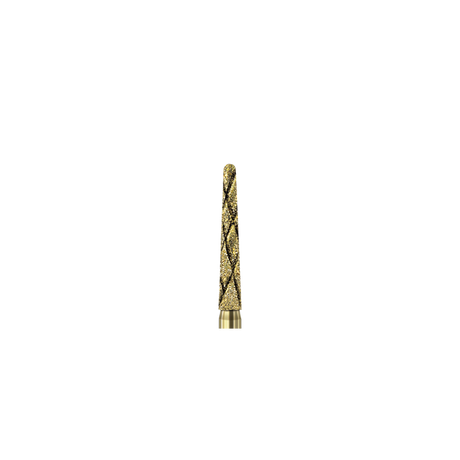

CD 51 016	016	Medium	FG	6
CD 51 018	018	Medium	FG	6

Taper (Cone) Rounded Edge

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 36 014	014	Medium	FG	6
CD 36 016	016	Medium	FG	6
CD 36 018	018	Medium	FG	6
CD 37 014	014	Medium	FG	6
CD 37 016	016	Medium	FG	6
CD 39G 016	016	Coarse	FG	6
CD 39 014	014	Medium	FG	6
CD 39 016	016	Medium	FG	6
CD 39 018	018	Medium	FG	6

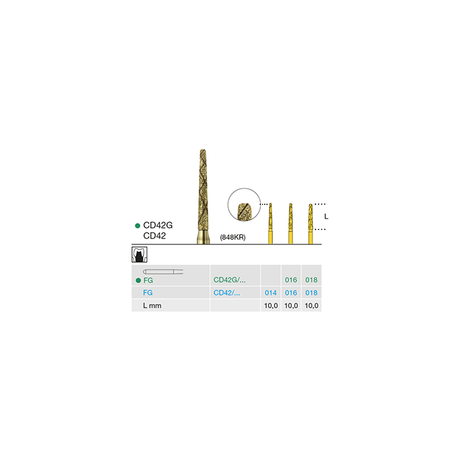

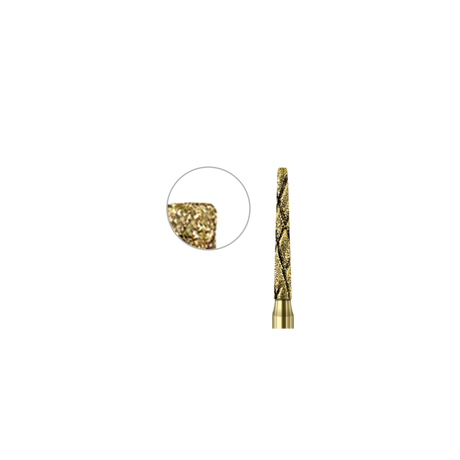

CD 42G 016	016	Coarse	FG	6
CD 42G 018	018	Coarse	FG	6
CD 42 014	014	Medium	FG	6
CD 42 016	016	Medium	FG	6
CD 42 018	018	Medium	FG	6

Torpedo

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 63 010	010	Medium	FG	6
CD 66G 010	010	Coarse	FG	6
CD 66 010	010	Medium	FG	6
CD 66 012	012	Medium	FG	6
CD 66 014	014	Medium	FG	6
CD 66F 010	010	Fine	FG	2
CD 69G 012	012	Coarse	FG	6
CD 69G 014	014	Coarse	FG	6
CD 69G 016	016	Coarse	FG	6
CD 69 012	012	Medium	FG	6
CD 69 014	014	Medium	FG	6
CD 69 016	016	Medium	FG	6
CD 69F 014	014	Fine	FG	2
CD 72G 012	012	Coarse	FG	6
CD 72G 014	014	Coarse	FG	6
CD 72G 016	016	Coarse	FG	6
CD 72 012	012	Medium	FG	6
CD 72 014	014	Medium	FG	6
CD 72 016	016	Medium	FG	6
CD 72F 012	012	Fine	FG	2
CD 72F 014	014	Fine	FG	2
CD 72F 016	016	Fine	FG	2

Football (Egg)

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 80G 023	023	Coarse	FG	6
CD 80 016	016	Medium	FG	6
CD 80 023	023	Medium	FG	6
CD 80F 023	023	Fine	FG	2

Flame

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 57 012	012	Medium	FG	6
CD 57 016	016	Medium	FG	6
CD 60G 014	014	Coarse	FG	6
CD 60 012	012	Medium	FG	6
CD 60 014	014	Medium	FG	6
CD 60 016	016	Medium	FG	6
CD 60F 012	012	Fine	FG	2
CD 60F 016	016	Fine	FG	2
CD 61G 012	012	Coarse	FG	6
CD 61G 016	016	Coarse	FG	6
CD 61 012	012	Medium	FG	6
CD 61 016	016	Medium	FG	6
CD 61F 012	012	Fine	FG	2
CD 61F 016	016	Fine	FG	2

Pointed

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 54G 014	014	Coarse	FG	6
CD 54 014	014	Medium	FG	6
CD 55G 014	014	Coarse	FG	6
CD 55G 016	016	Coarse	FG	6
CD 55G 018	018	Coarse	FG	6
CD 55 014	014	Medium	FG	6
CD 55 016	016	Medium	FG	6
CD 55 018	018	Medium	FG	6
CD 55F 014	014	Fine	FG	2

Pear

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 18G 012	012	Coarse	FG	6
CD 18 012	012	Medium	FG	6
CD 18 014	014	Medium	FG	6
CD 18 016	016	Medium	FG	6
CD 19G 014	014	Coarse	FG	6
CD 19G 016	016	Coarse	FG	6
CD 19 014	014	Medium	FG	6
CD 19 016	016	Medium	FG	6
CD 19 018	018	Medium	FG	6

Round

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 03 012	012	Medium	FG	6
CD 06 014	014	Medium	FG	6
CD 06 016	016	Medium	FG	6
CD 06 018	018	Medium	FG	6
CD 06 023	023	Medium	FG	6

Inverted Cone

Busch No.	Size (ISO)	Grit	Shank	Pack
CD 09 012	012	Medium	FG	6
CD 12 016	016	Medium	FG	6
CD 12 018	018	Medium	FG	6
CD 15 016	016	Medium	FG	6

Innovative Cooling Technology

Each Busch COOL DIAMANT Diamond Bur features asymmetrically intersecting diamond-coated grooves that optimize coolant flow and interrupt the grinding process up to 7 times per rotation. This unique geometry significantly reduces heat generation during cutting, protecting tooth structure and surrounding soft tissues while maintaining exceptional cutting speed and control. The result is a smoother, cooler operation that benefits both the clinician and the patient.

Independently Tested at the Medical University of Innsbruck

A scientific study from the Medical University of Innsbruck (published in Stomatologie 2009; 106: 29–34) evaluated diamond burs from multiple manufacturers under rigorously standardised conditions — 200,000 RPM, 50 ml/min cooling, and a 152 g load applied to ceramic blocks. The results were clear: The Busch Cool Diamond (Busch® K) achieved the highest total cutting length of 17.30 mm in the primary test series, significantly outperforming the other burs tested (p < 0.05). Burs with cooling grooves consistently ranked highest for cutting efficiency and sustained longevity. Although all burs showed a performance decline after the first 10 minutes, Cool Diamond instruments maintained superior performance longer, reducing the frequency of replacements. Read the method, the results and what they mean on our Innsbruck Study page.

Key Features

• Biocompatible gold coating for enhanced safety and long-term durability
• Innovative cooling grooves for maximum coolant delivery and heat reduction
• Up to 7x interrupted grinding per rotation for smoother, cooler operation
• High-quality diamond coating for fast, efficient material removal
• Superior precision and control with minimal vibration
• Manufactured in Germany to rigorous quality standards

Clinical Use

The Busch COOL DIAMANT Diamond Bur is ideal for tooth preparation, restorative dentistry, crown and bridge work, and other high-speed procedures where low heat generation and smooth performance are essential. Whether used in routine restorations or complex prosthetic cases, these instruments consistently deliver the efficiency and accuracy that modern dental practice requires.

Care and Reconditioning

Busch rotary instruments are reusable: clean, disinfect and sterilize them between patients according to the manufacturer’s instructions, and replace a bur once it dulls or shows damage. Our Dental Bur Reprocessing & Sterilization Guide walks through the workflow for carbide, diamond and steel instruments.

Compare With

Related Busch collections: Dental Diamond Bur Collection, Torpedo Burs & Diamonds, Cylinder Round Dental Burs, Crown and Bridge Dental Burs, and Busch Exclusives & Innovations. For grit ring colors and speeds, see the Color Coding & ISO Guide, the Dental Bur Speed Chart and the Bur Comparison Chart.

FAQ

What makes the COOL DIAMANT different from standard diamond burs? The asymmetrically intersecting cooling grooves interrupt the grinding process up to 7 times per rotation, actively reducing heat buildup in a way that conventional diamond burs cannot match.

Is the gold coating biocompatible? Yes. The biocompatible gold coating is designed for safe intraoral use, contributing to the instrument's durability and patient safety.

What procedures are these burs suited for? They are well-suited for tooth preparation, crown and bridge work, restorative dentistry, and any high-speed procedure where thermal protection and cutting efficiency are priorities.

Has COOL DIAMANT been independently tested? Yes. In the Medical University of Innsbruck study, the Busch cooling-groove diamond achieved the highest total cutting length of the burs tested over 40 minutes of continuous use. The full summary is on our Innsbruck Study page.

Further reading: Longest Lasting Diamond Burs: What the Innsbruck Study Reveals About Busch Cool Diamond Burs and Cooling Grooves

Manufacturer literature: Busch COOL DIAMANT brochure (PDF), with full technical specifications and the complete range of shapes and grit sizes.
